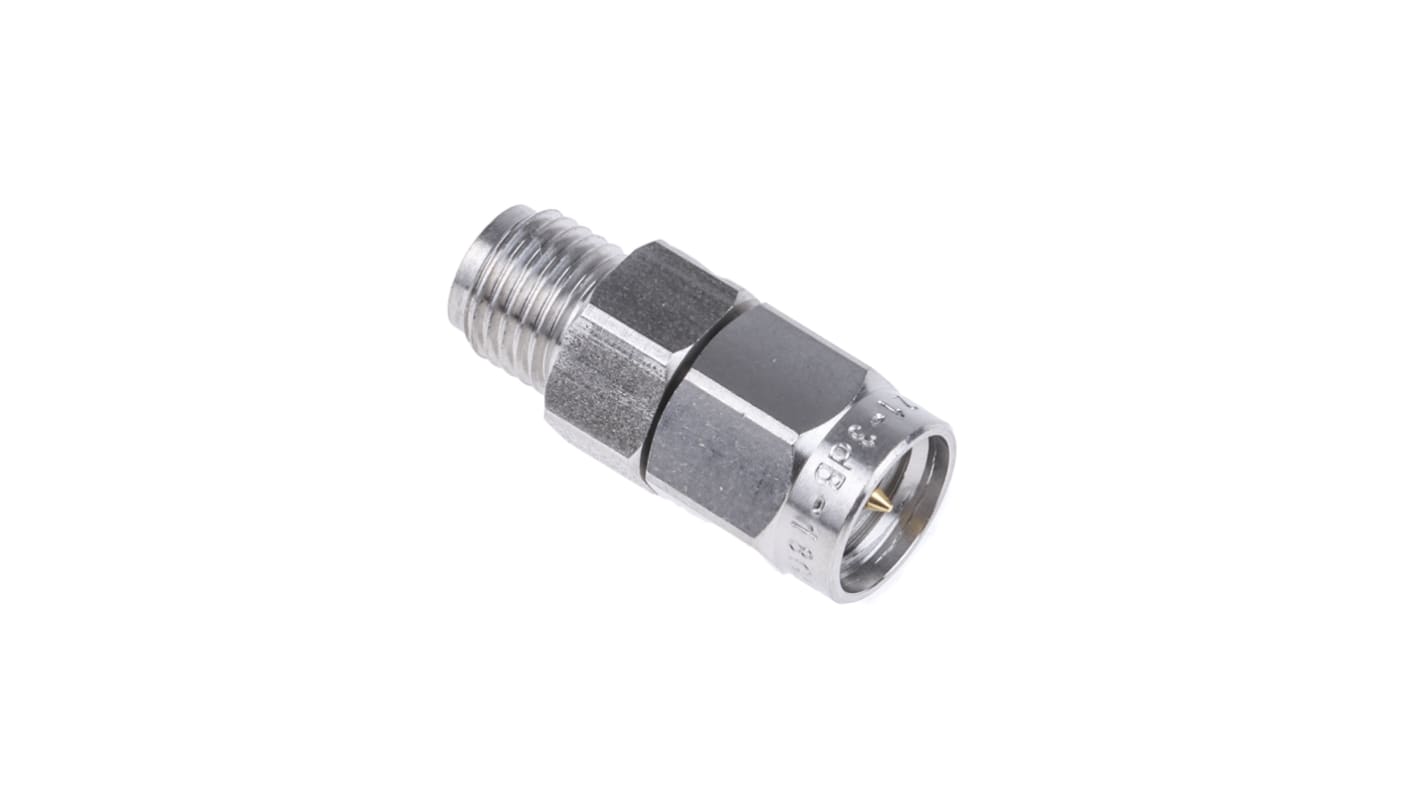

50Ω RF Attenuator Straight SMA Connector SMA Plug to Socket 3dB, Operating Frequency 18GHz
- RS Stock No.:
- 285-9573
- Mfr. Part No.:
- R411803121
- Manufacturer:
- Radiall
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
67 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR331.08
| Units | Per Unit |
| 1 - 9 | MYR331.08 |
| 10 - 24 | MYR324.71 |
| 25 - 49 | MYR315.75 |
| 50 - 99 | MYR307.14 |
| 100 + | MYR299.96 |
- RS Stock No.:
- 285-9573
- Mfr. Part No.:
- R411803121
- Manufacturer:
- Radiall
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Radiall 50 Ohm SMA RF Coaxial Attenuators
50 ohm SMA plug to socket RF coaxial attenuators with a PTFE dielectric and gold plated centre contact.
50 ohm SMA attenuators with part number R4118xx124 have a DC 3 GHz operating frequency range, 1 W average power @ 25°C and a nickel plated brass body.
50 ohm SMA attenuators with part number R4118xx121 have an DC 18 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx122 have a DC 26.5 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx124 have a DC 3 GHz operating frequency range, 1 W average power @ 25°C and a nickel plated brass body.
50 ohm SMA attenuators with part number R4118xx121 have an DC 18 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx122 have a DC 26.5 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
Attenuators (dc to 18GHz)
Approvals
-
Radiall SMA Commercial
SMA crimp termination types for use with a variety of flexible and semi-rigid cables
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass
Specifications
Attribute | Value |
|---|---|
| Interface Type | SMA Plug to Socket |
| Attenuation | 3dB |
| Body Orientation | Straight |
| Impedance | 50Ω |
| Operating Frequency | 18GHz |
| Contact Material | Stainless Steel |
| Connector Type | SMA |
| Gender A | Male |
| Gender B | Socket |
