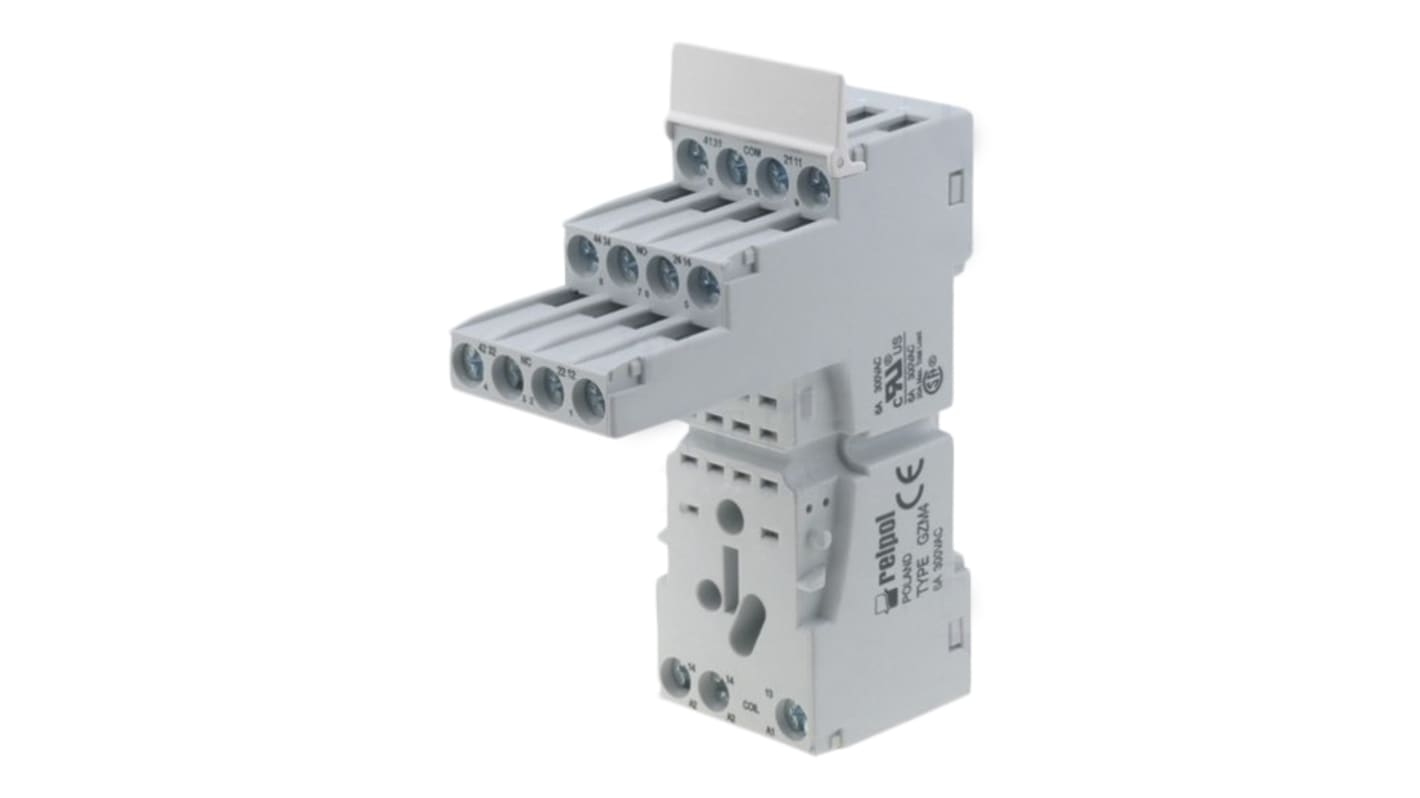

Relpol 2 Pin Relay Socket, DIN Rail for use with R2N Relay

  • RS Stock No. 914-3869
  • Mfr. Part No. GZM2-BLACK
  • Manufacturer Relpol
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Relpol Miniature Industrial Relays

R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.

R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant

Specifications
Attribute Value
For Use With R2N Relay
Accessory Type Socket
Number of Contacts 2
Current Rating 12A
Mounting Type DIN Rail
Termination Type Screw
46 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR23.27
MYR 21.88
units
Per unit
1 +
MYR21.88
