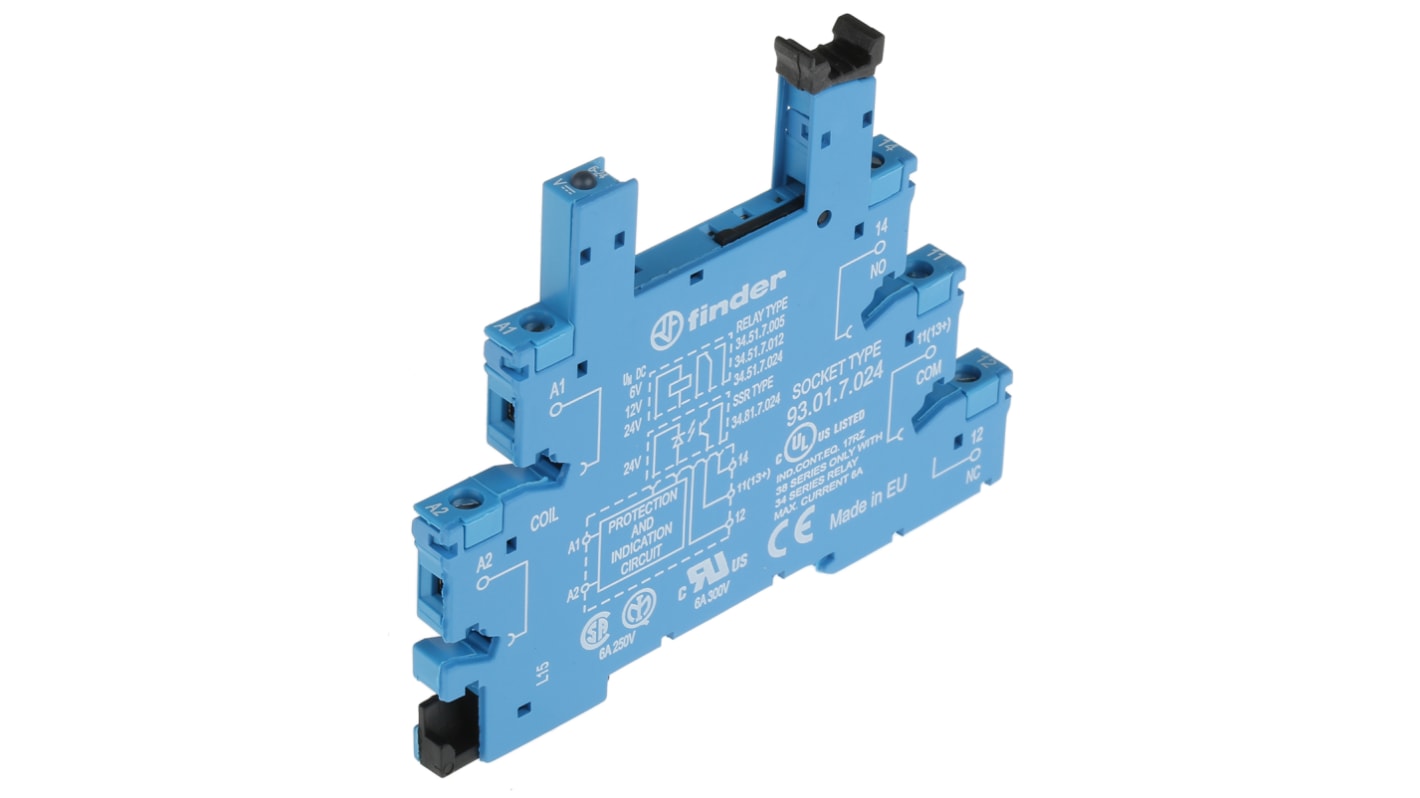

Finder 5 Pin Relay Socket, 250V ac for use with 34.81, 34.51 Series Relay

  • RS Stock No. 666-8093
  • Mfr. Part No. 93.01.7.024
  • Manufacturer Finder
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

34 Series with Screwless Terminals

DIN Rail Mount
SPDT contact configuration
AgNi contacts
Operating temperature range -20 to + 55°C
Dimensions H93mm, W6.2mm, D75.6mm
Replacement relays (RS stock no. 457-2830) are available

Note

The 125 and 250Vac versions are designed for use with 60Vdc coil relays

Approvals

UL, CSA, VDE

Finder Relay Socket

The Finder 5-pin DIN rail mount socket has screw terminal leads. It has a current rating of 6A and voltage rating of 250VAC. This relay socket is used with 34.81 and 34.51 relay series.

Features and Benefits

• Dielectric strength is 6kV
• Insulation resistance is 1000MΩ
• Operating temperature ranges between -40°C and 70°C
• Screw torque is 0.5Nm
• Wire strip length is 10mm

Applications

• Coil relays
• Protection circuits

Certifications

• CSA certified
• UL approved
• VDE approved
• IP20 rated

Specifications
Attribute Value
Voltage 250V ac
For Use With 34.51 Series Relay, 34.81
Accessory Type Socket
Series 93
Number of Contacts 5
1373 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 55.59
units
Per unit
1 - 14
MYR55.59
15 - 49
MYR53.30
50 - 99
MYR52.78
100 - 199
MYR51.89
200 +
MYR50.88
