- RS Stock No.:
- 909-2705
- Mfr. Part No.:
- GC2522 (10-20AT)
- Manufacturer:
- Assemtech
90 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Bag of 10)
MYR11.469
units | Per Unit | Per Bag* |
10 - 90 | MYR11.469 | MYR114.69 |
100 - 240 | MYR11.126 | MYR111.26 |
250 - 490 | MYR10.783 | MYR107.83 |
500 - 1990 | MYR10.555 | MYR105.55 |
2000 + | MYR10.326 | MYR103.26 |
*price indicative |
- RS Stock No.:
- 909-2705
- Mfr. Part No.:
- GC2522 (10-20AT)
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
Product Details

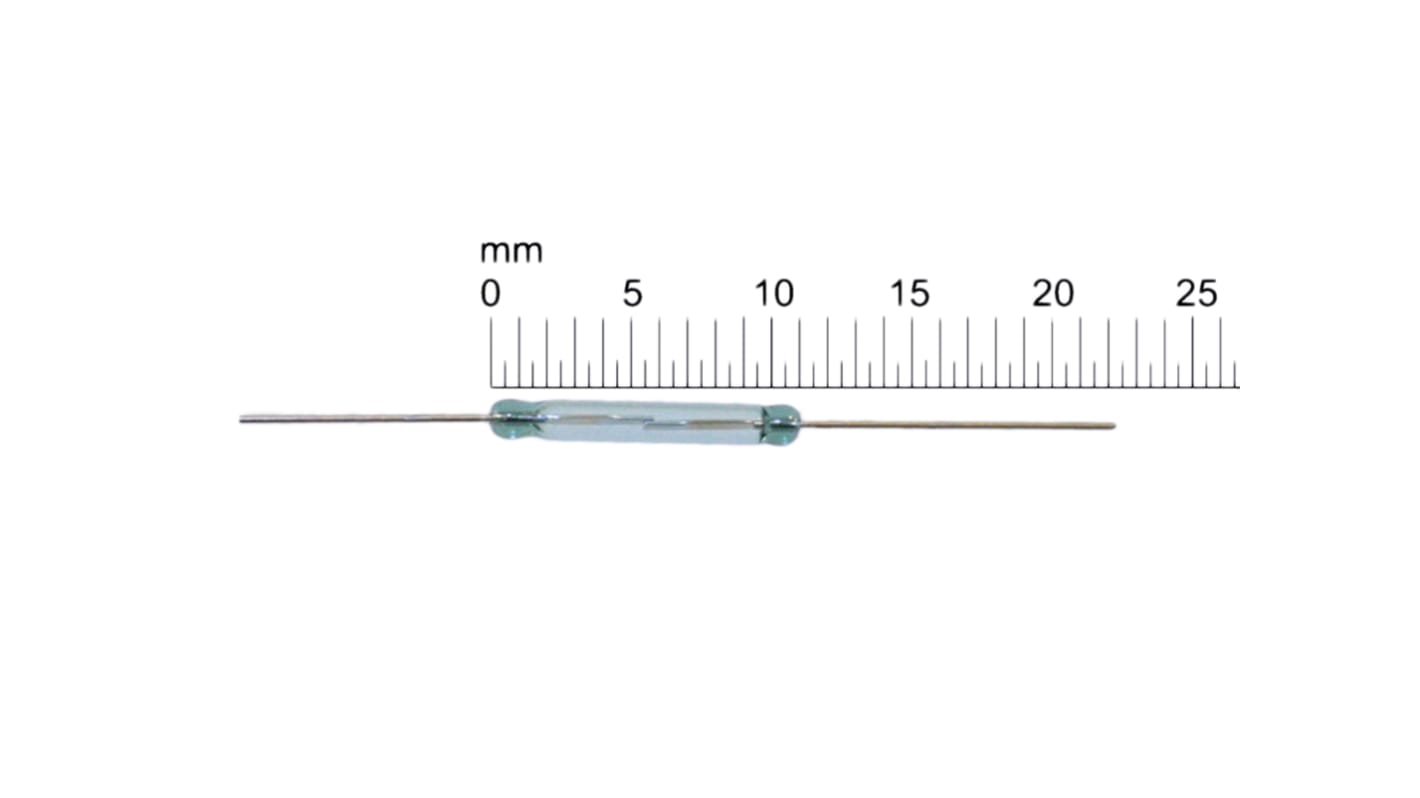

Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Maximum Switching Current | 500mA |
Contact Resistance | 150mΩ |
Contact Material | Rhodium |
Maximum Release Time | 0.05ms |
Operating Time Including Bounce | 0.3ms |
AT Value Range | 10-20AT |
Width | 2.1 (Dia.)mm |
Length | 11mm |
Dimensions | 2.1 (Dia.) x 11mm |
