- RS Stock No.:
- 909-2648
- Mfr. Part No.:
- RI-46A
- Manufacturer:
- Assemtech
80 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 10)
MYR7.591
Units | Per Unit | Per Bag* |
10 - 90 | MYR7.591 | MYR75.91 |
100 - 240 | MYR7.432 | MYR74.32 |
250 - 490 | MYR7.205 | MYR72.05 |
500 - 1990 | MYR7.029 | MYR70.29 |
2000 + | MYR6.878 | MYR68.78 |
*price indicative |
- RS Stock No.:
- 909-2648
- Mfr. Part No.:
- RI-46A
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- BE
Product Details

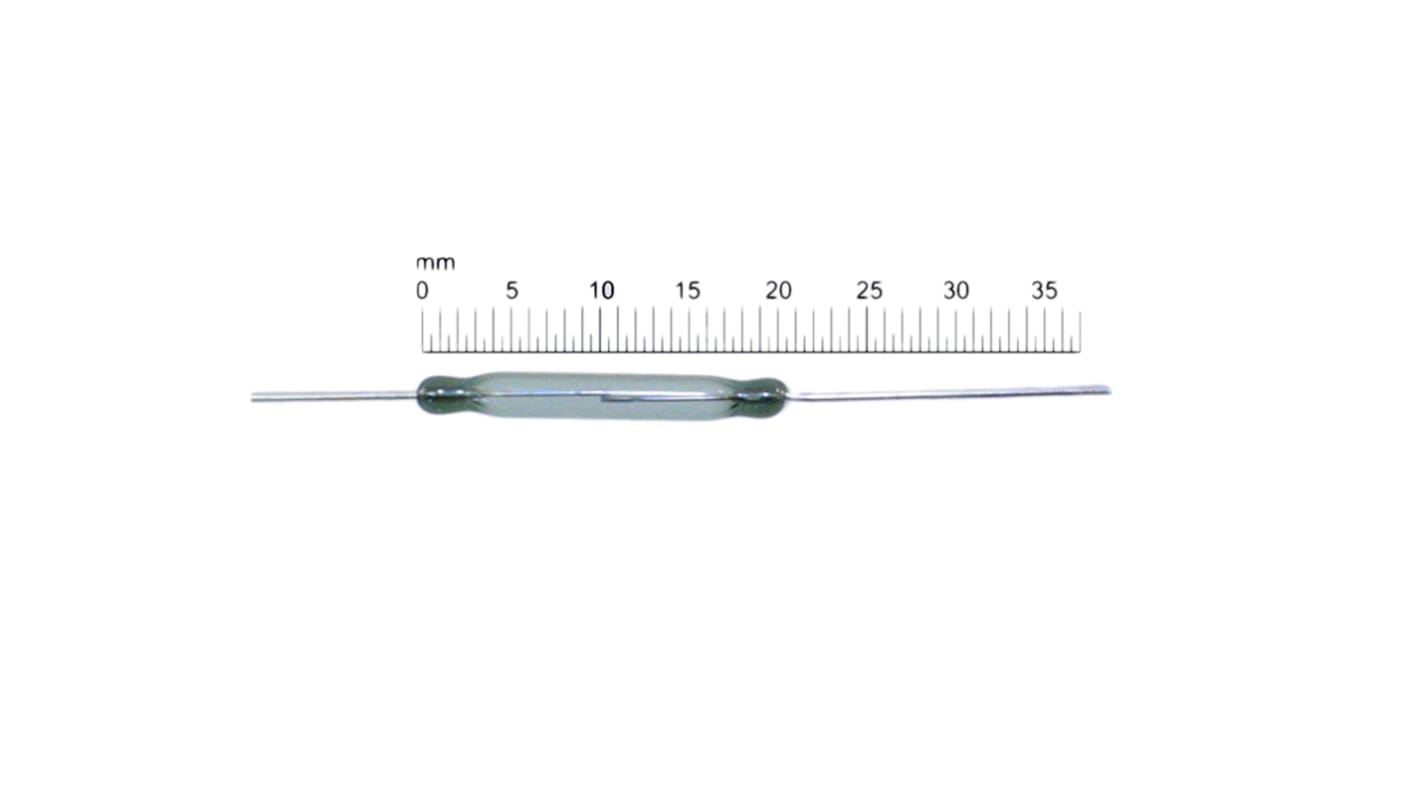

Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Maximum Switching Current | 1A |
Maximum Switching Power | 30W |
Contact Resistance | 90mΩ |
Contact Material | Ruthenium on Gold |
Maximum Release Time | 0.03ms |
Operating Time Including Bounce | 0.35ms |
AT Value Range | 15-28AT |
Width | 2.7 (Dia.)mm |
Length | 20.5mm |
Dimensions | 2.7 (Dia.) x 20.5mm |
