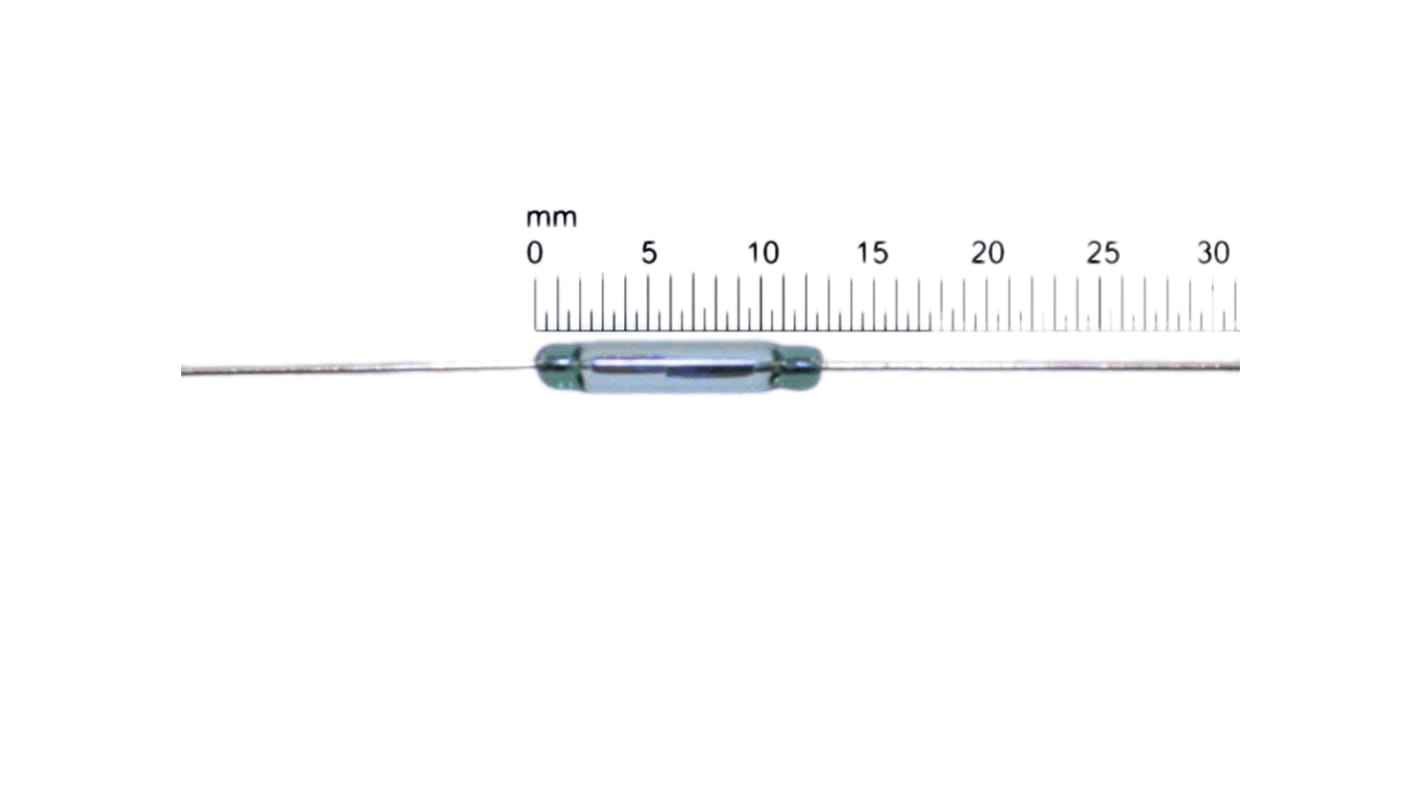

SPST-NO Reed Switch, 500mA

  • RS Stock No. 909-2632
  • Mfr. Part No. RI-27AA
  • Manufacturer Assemtech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NL
Product Details

Form A & C Reed Switches

These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.

There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.

Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically

Approvals

UL, CSA

Specifications
Attribute Value
Contact Configuration SPST-NO
Maximum Switching Current 500mA
Maximum Switching Power 10W
Contact Resistance 115mΩ
Contact Material Ruthenium on Gold
Maximum Release Time 30µs
Operating Time Including Bounce 0.25ms
AT Value Range 15-25AT
Width 1.8 (Dia.)mm
Length 13.5mm
Dimensions 1.8 (Dia.) x 13.5mm
100 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 10)
MYR 6.897
units
Per unit
Per Bag*
10 - 90
MYR6.897
MYR68.97
100 - 240
MYR6.147
MYR61.47
250 - 490
MYR5.727
MYR57.27
500 - 1990
MYR5.09
MYR50.90
2000 +
MYR4.972
MYR49.72
*price indicative
