- RS Stock No.:
- 909-2623
- Mfr. Part No.:
- RI-27AAA
- Manufacturer:
- Assemtech
500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 10)
MYR10.258
Units | Per Unit | Per Bag* |
10 - 90 | MYR10.258 | MYR102.58 |
100 - 240 | MYR9.951 | MYR99.51 |
250 - 490 | MYR9.646 | MYR96.46 |
500 - 1990 | MYR9.441 | MYR94.41 |
2000 + | MYR9.236 | MYR92.36 |
*price indicative |
- RS Stock No.:
- 909-2623
- Mfr. Part No.:
- RI-27AAA
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

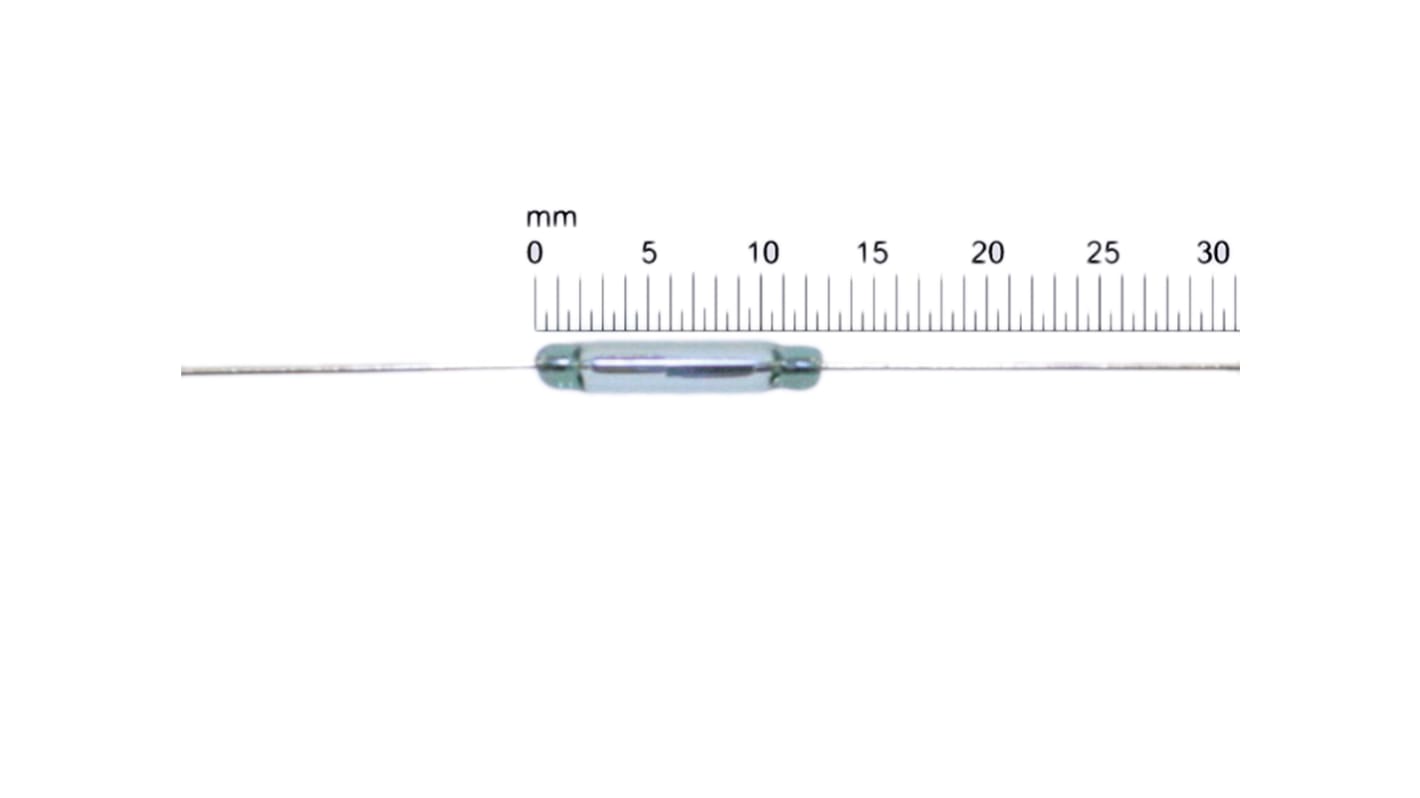

Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Maximum Switching Current | 500mA |
Maximum Switching Power | 10W |
Contact Resistance | 115mΩ |
Contact Material | Ruthenium on Gold |
Maximum Release Time | 0.03ms |
Operating Time Including Bounce | 0.25ms |
AT Value Range | 10-20AT |
Width | 1.8 (Dia.)mm |
Length | 13.5mm |
Dimensions | 1.8 (Dia.) x 13.5mm |
