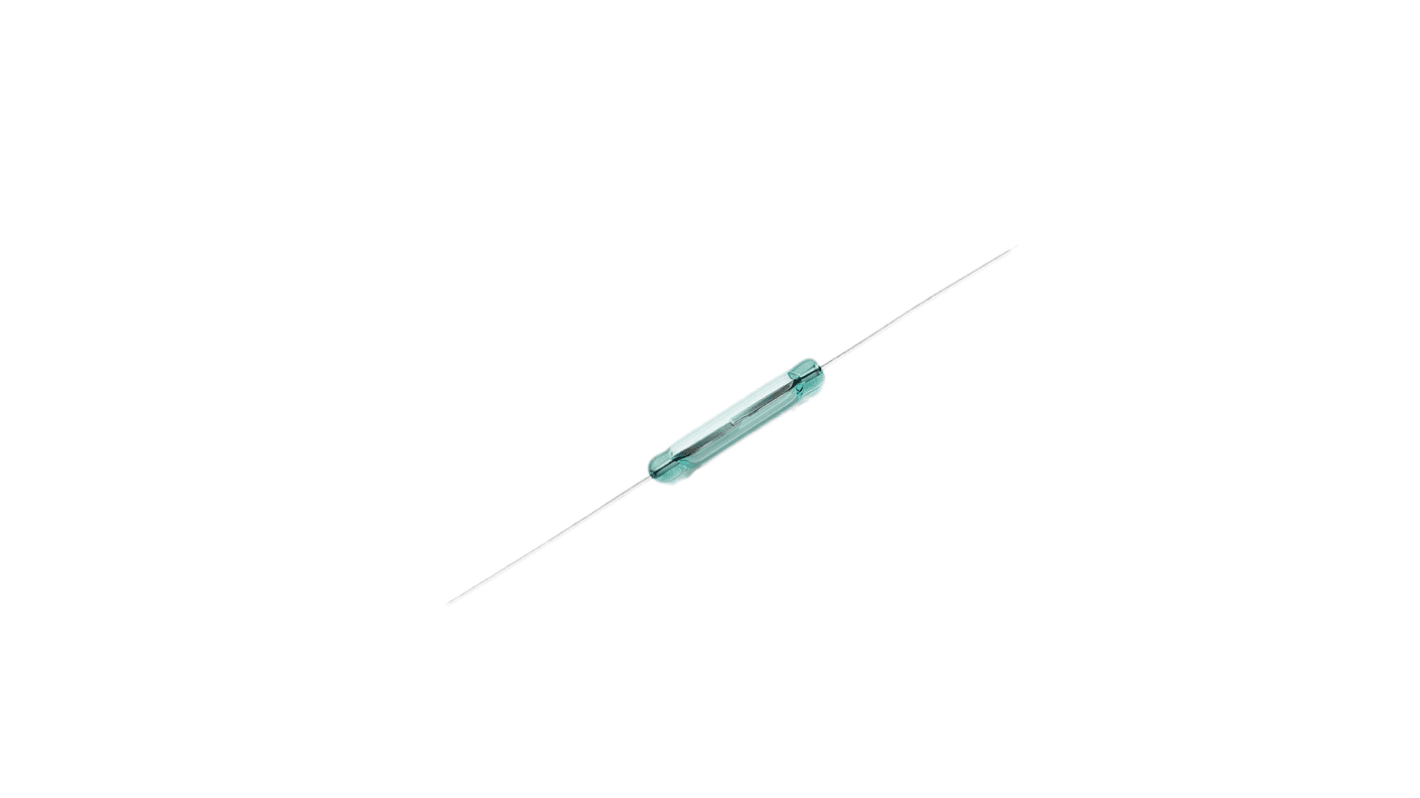

Miniature Reed Switch,

  • RS Stock No. 905-8871
  • Mfr. Part No. Flex-14-10-15
  • Manufacturer Hamlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

Flex-14 Axial Lead Reed Switches, Low Power

These sub-miniature, axial lead reed switches require zero operating power for contact closure. They are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. They are not effected by and do not affect their external environment. The soft leads are pliable and work well in applications requiring hand forming. They are also suited for switching micro-controller logic level loads.

The glass envelope on these reed switches measures 14 x 2.28 mm and it houses normally open contacts. It has a high insulation resistance and low contact resistance and they are also ATEX approved between 10-30 AT range.

Item 905-8871 has a sensitivity rating of AT 10-15.

Item 905-8875 has a sensitivity rating of AT 15-20.

Potential Applications

Reed relays
Security
Limit switching
Office equipment
Industrial control

Features

Subminiature, normally open switch
Longer leads are flexible for easy forming
Capable of switching up to 200 Vdc or 0.5A at up to 10 W
Operating temperature range: -40°C to +125°C

Standards

UL, ATEX Class I, Zone 2

Littelfuse

Specifications
Attribute Value
Contact Resistance 100mΩ
AT Value Range 10-15AT
Width 2.28mm
Length 14mm
Dimensions 2.28 (Dia.) x 14mm
1140 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 5)
MYR 5.50
units
Per unit
Per Bag*
5 - 495
MYR5.50
MYR27.50
500 - 1245
MYR5.28
MYR26.40
1250 - 2495
MYR4.494
MYR22.47
2500 - 4995
MYR3.646
MYR18.23
5000 +
MYR2.95
MYR14.75
*price indicative
