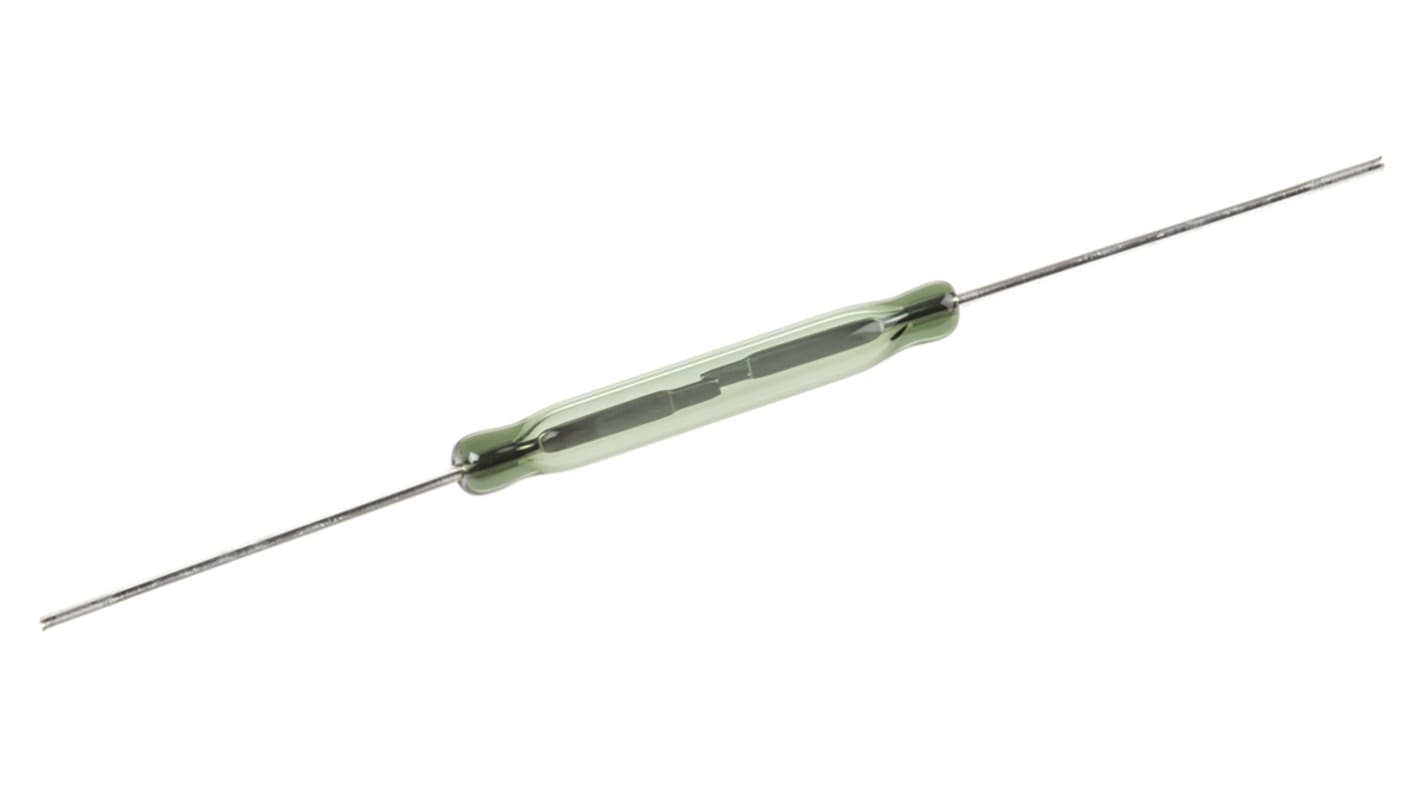

SP-NO PCB Reed Switch, 1A 250V ac

  • RS Stock No. 362-2546
  • Mfr. Part No. RI-46A
  • Manufacturer Assemtech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NL
Product Details

Form A & C Reed Switches

These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.

There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.

Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically

Approvals

UL, CSA

Specifications
Attribute Value
Contact Configuration SP-NO
Maximum Switching Current 1A
Maximum Switching Power 30VA
Maximum Switching Voltage 250V ac
Contact Resistance 90mΩ
Contact Material Ruthenium
Maximum Release Time 0.03ms
Operating Time Including Bounce 0.5ms
Mounting Type PCB
305 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 5.33
units
Per unit
1 - 14
MYR5.33
15 - 49
MYR5.13
50 - 99
MYR4.57
100 - 499
MYR4.35
500 +
MYR3.81
