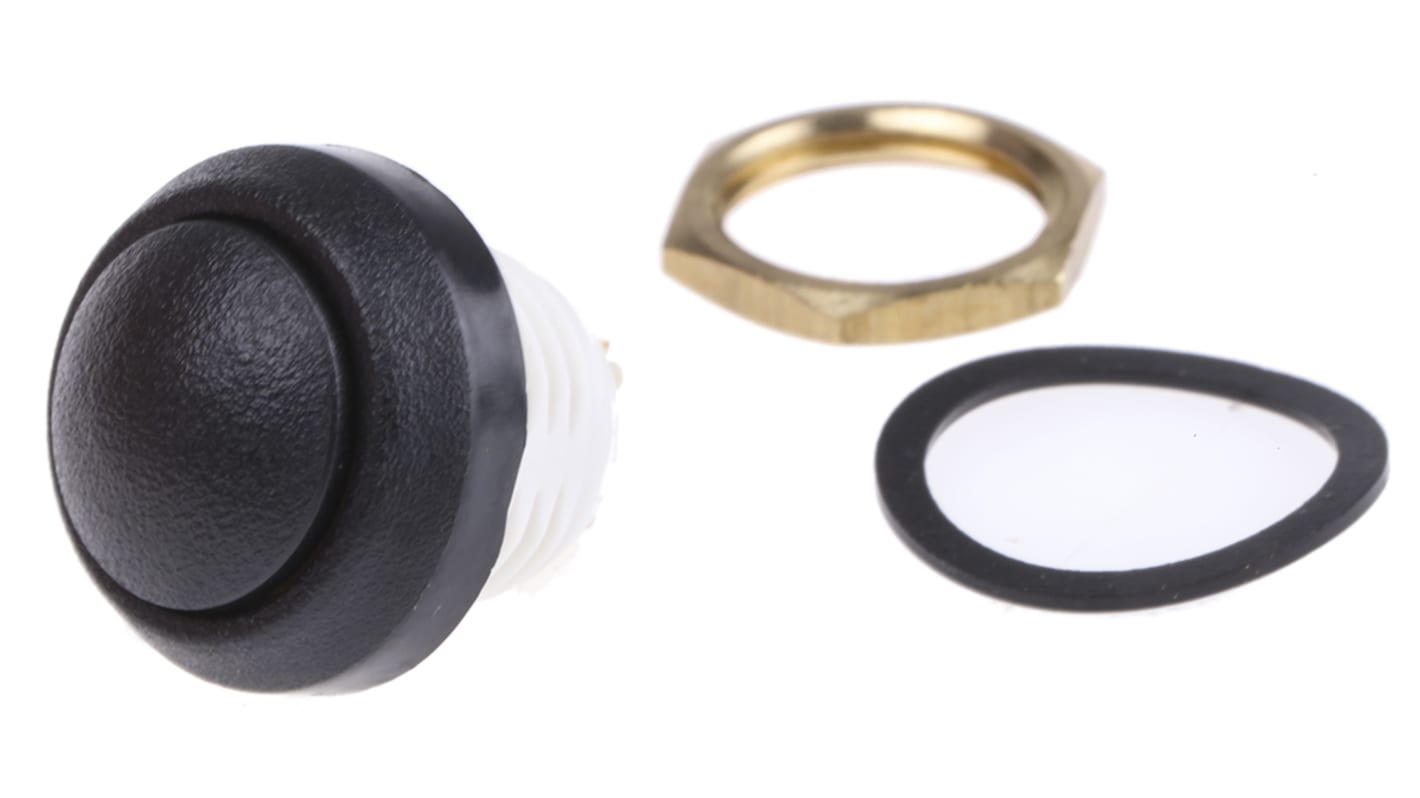

ITW Switches 48 Series Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, Clear LED, 48V dc, IP67
- RS Stock No.:
- 702-7037
- Mfr. Part No.:
- 48-5-RB-N-BK-B
- Manufacturer:
- ITW Switches
- RS Stock No.:
- 702-7037
- Mfr. Part No.:
- 48-5-RB-N-BK-B
- Manufacturer:
- ITW Switches
Technical data sheets
Legislation and Compliance
Product Details
48 Series IP67 Sealed
Rugged sealed pushbutton switches with various options of termination type and LED illumination.
Long-life (100,000 ops) gold-plated SPNO contacts
Rating 250mA @ 12Vdc, 100mA 48Vdc
IP67 panel sealing
17.4mm diameter, 13.6mm panel mounting cut-out
Suitable for panel thickness of 0.5 to 3.0mm
Rating 250mA @ 12Vdc, 100mA 48Vdc
IP67 panel sealing
17.4mm diameter, 13.6mm panel mounting cut-out
Suitable for panel thickness of 0.5 to 3.0mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
ITW Sealed
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 13.6mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | Single Pole Single Throw (SPST) |
Voltage Rating | 48V dc |
Push Button Style | Round |
LED Colour | Clear |
IP Rating | IP67 |
Series | 48 |
Contact Current Rating | 250 mA @ 12 V dc |
Contact Material | Gold |
Manufacturer Part No. | 48-5-RB-N-BK-B |
Case Colour | Black |
Contact DC Voltage Rating | 12V |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
Terminal Type | PC Pin |
Minimum Operating Temperature | -40°C |
