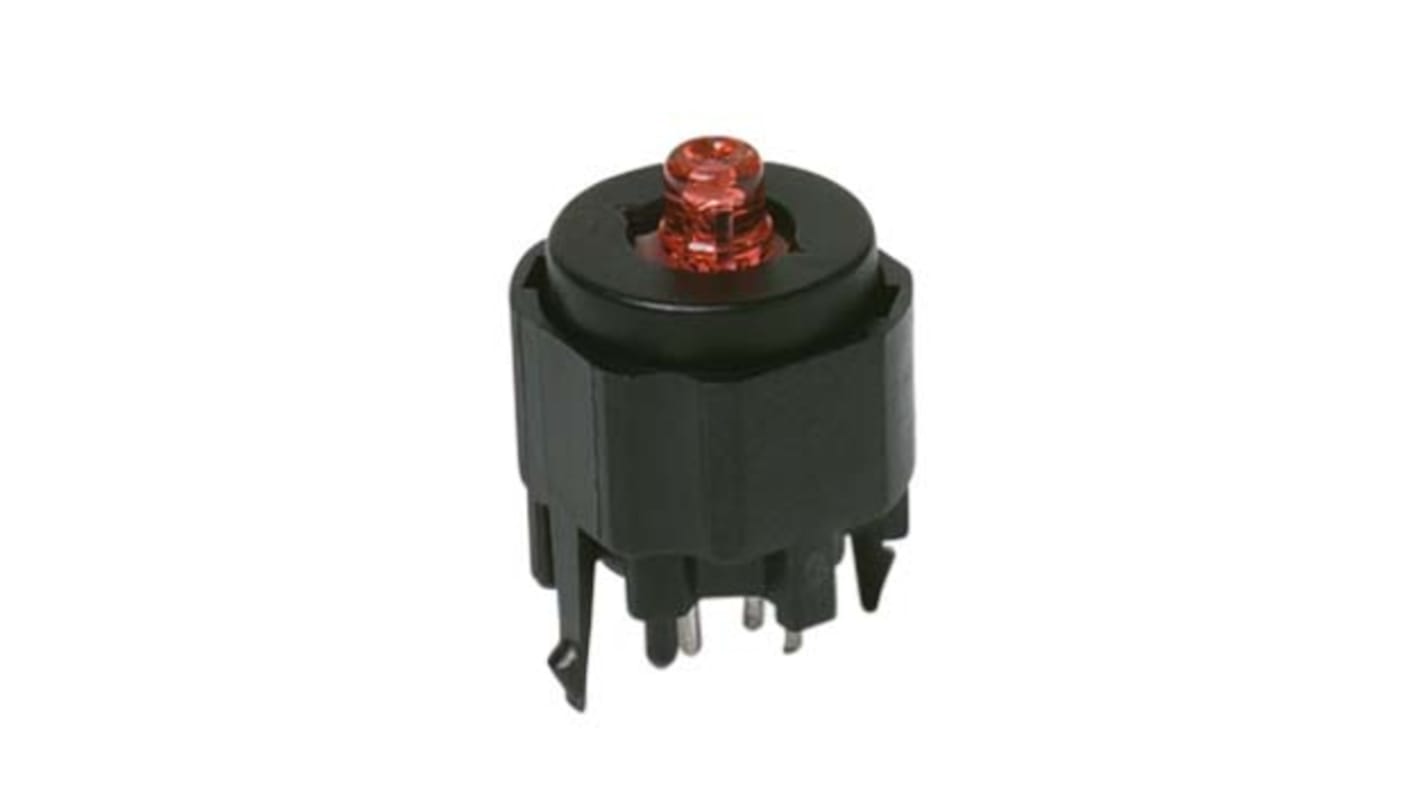

1-pole on-off switch Momentary Push Button Switch, IP40, PCB, 30V dc

  • RS Stock No. 155-8862
  • Mfr. Part No. K12PL GN 1 5N LV306
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

C&K keyswitches exhibit excellent tactile feel and in applications involving an array of keyswitches, consistent actuation force and feel help determine the quality of the end product.

SMT or THT solder process compatible
IP40 or IP67 sealing level
LED illumination option
SPST, SPDT, DPST or DPDT electrical functions
Normally Open or Normally Closed contacts
Double step actuation
Momentary or latching “push-on/push-off” versions
Tactile or Non-tactile feedback

Excellent tactile feel
Wide choice of LED Colours, travel and actuator forces
High reliability / long life
Automotive, Motorcycles
Off-road transportation
Industrial electronics

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type PCB
Illuminated Yes
Contact Configuration Single Pole Single Throw (SPST)
LED Colour Green
IP Rating IP40
Actuator Colour Black
Voltage Rating 30V dc
Contact Current Rating 100 mA
Actuator Shape Round
Terminal Type Solder
Actuator Type Button
Case Colour Black
Contact DC Voltage Rating 30V
Temporarily out of stock - back order for despatch 16/09/2020, delivery within 4 working days from despatch date
Price Each (In a Box of 300)
MYR 28.55
units
Per unit
Per Box*
300 - 600
MYR28.55
MYR8,565.00
900 +
MYR27.122
MYR8,136.60
*price indicative
