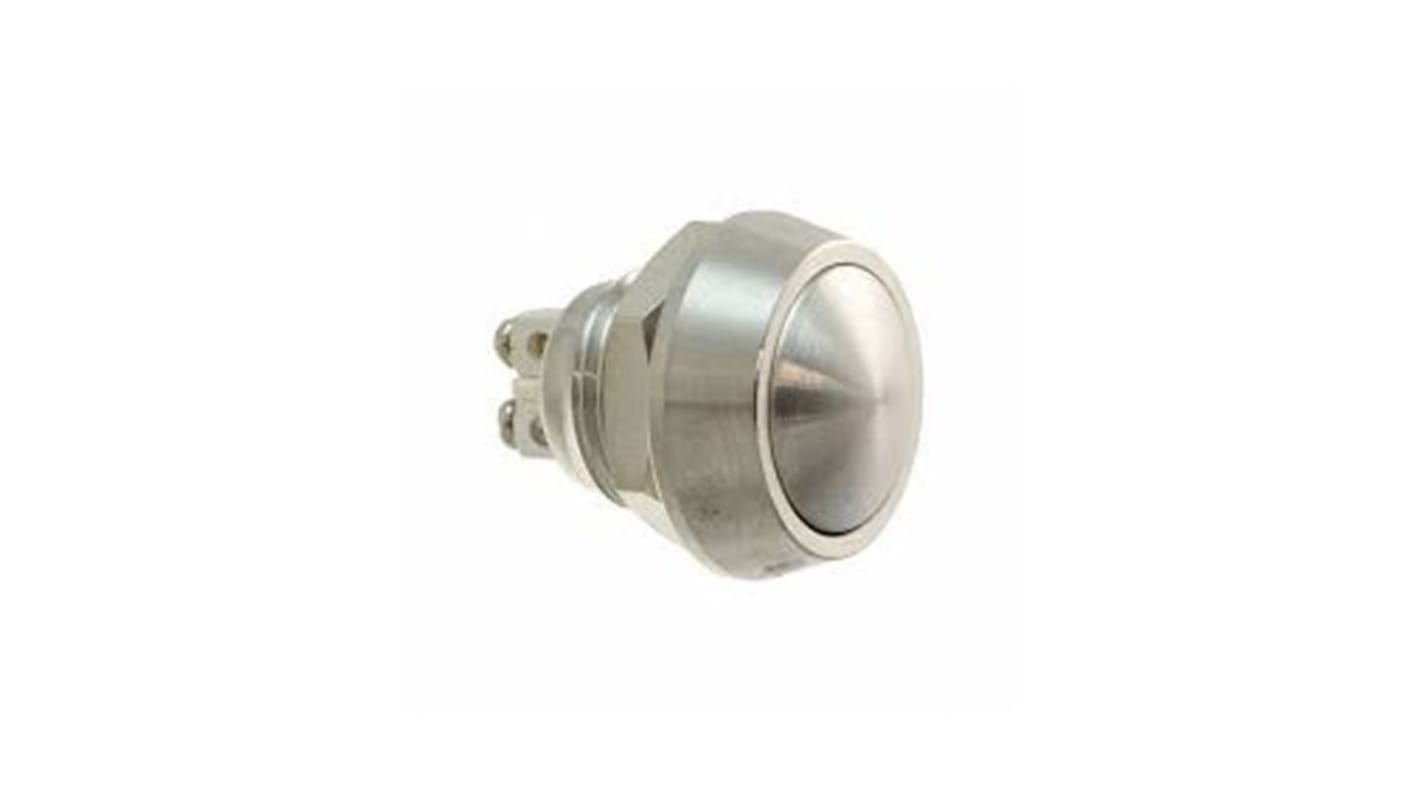

Bulgin Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 36V dc, IP67

RS Stock No.:: 127-8498
Mfr. Part No.:: MMP0120/NNBP
Manufacturer:: Bulgin

Bulgin Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 36V dc, IP67

36 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR74.58

Units	Per Unit
1 - 9	MYR74.58
10 - 24	MYR72.34
25 - 49	MYR70.11
50 - 99	MYR68.62
100 +	MYR67.13

RS Stock No.:: 127-8498
Mfr. Part No.:: MMP0120/NNBP
Manufacturer:: Bulgin

Technical data sheets

12mm Push Button Switch Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Vandal Resistant Pushbutton Switches - MMP0120 Series

Features and Benefits

• 12mm diameter, raised domed profile
• Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)
• Illuminated versions
• Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals
• Choice of body material and button material, depending on part code:
- Stainless Steel body and button: /SSS
- Nickel Plated Brass body and button: /NNB
- Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black

Specifications

Attribute	Value
Switch Operation	Momentary
Illuminated	No
Panel Cut Out Diameter	12mm
Mounting Type	Panel Mount
Push Button Colour	Silver
Contact Configuration	SPST
Voltage Rating	36V dc
Push Button Style	Round
IP Rating	IP67
Contact Current Rating	2 A
Contact Material	Silver Alloy
Manufacturer Part No.	MMP0120/NNBP
Contact DC Voltage Rating	36V
Terminal Type	Solder Lug
