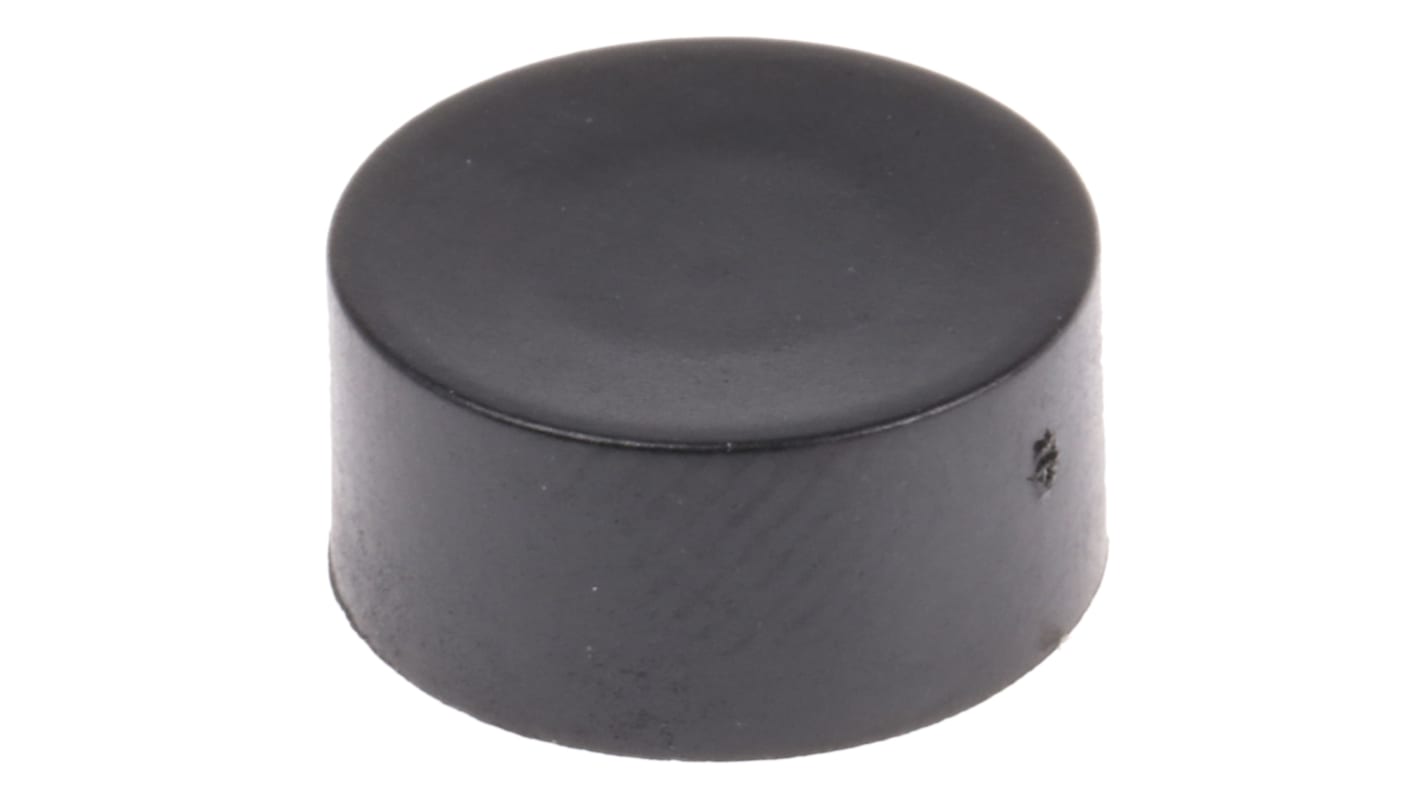

Black Push Button Cap, for use with Apem 10400 Series (Push Button Switch), Cap

  • RS Stock No. 484-6260
  • Mfr. Part No. U2602
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

10400 Series Push-buttons, 10mm

From Apem, this momentary push-button switch is available as Single Pole Double Throw (see stock no: 236-9547) or Double Pole Double Throw (see stock no: 236-9553).

With solder lug terminals sealed into the switch by epoxy resin, this compact panel mount switch is designed with convenient installation in mind. The 10400 series momentary switch has a small metal actuator can be covered with interchangeable coloured plastic caps, available separately.

• Terminations sealed with epoxy resin
• 10mmø panel cut out
• 13mmø button caps available separately
• Contact Rating-A: 2; 3 A
• Contact Rating-V: 220 Vac; 24 Vdc
• Contact Resistance: 0.01 Ohm
• Dielectric Strength: 2000 V
• Operating Temperature Range: -40 → +85 C
• Solder Lug Terminals

//media.rs-online.com/t_line/LF236954-10.gif
Specifications
Attribute Value
Accessory Type Cap
For Use With Apem 10400 Series (Push Button Switch)
Cap Colour Black
137 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 8.80
units
Per unit
1 - 49
MYR8.80
50 - 99
MYR8.19
100 - 249
MYR7.44
250 - 499
MYR6.89
500 +
MYR6.50
