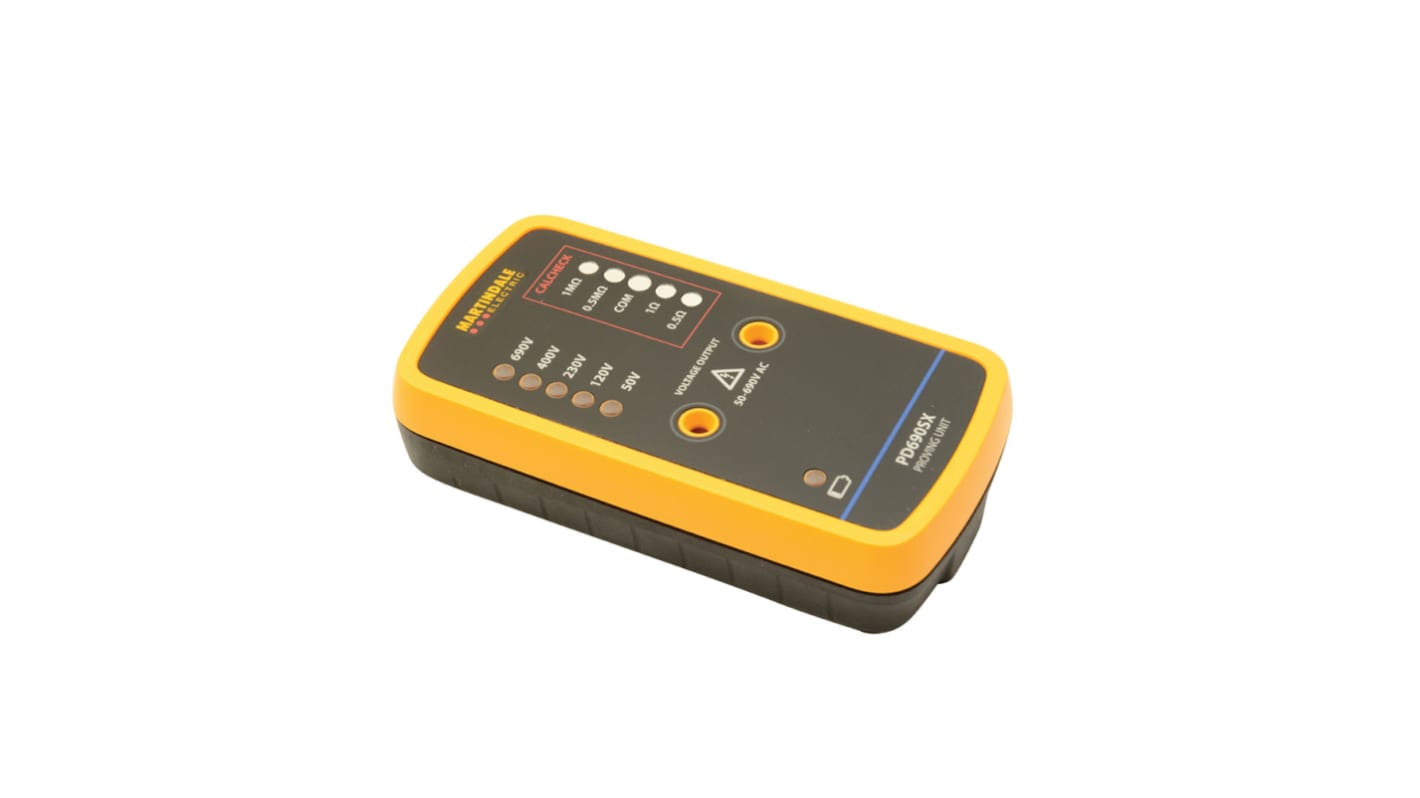

Martindale PD690SX Proving Unit 200mA 690V ac LED
- RS Stock No.:
- 193-5337
- Mfr. Part No.:
- PD690SX
- Manufacturer:
- Martindale
36 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,000.08
| Units | Per Unit |
| 1 + | MYR1,000.08 |
- RS Stock No.:
- 193-5337
- Mfr. Part No.:
- PD690SX
- Manufacturer:
- Martindale
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- PH
Product Details
Safely proves the operation of voltage indicators and test lamps up to 690V
Unique CALCHECK function for multifunction installation tests
Individual LED indicators matched to voltage indicator thresholds
Long battery life with low battery indicator
Includes MAG3 high strength magnetic hanger
Colour coded for voltage output
Unique CALCHECK function for multifunction installation tests
Individual LED indicators matched to voltage indicator thresholds
Long battery life with low battery indicator
Includes MAG3 high strength magnetic hanger
Colour coded for voltage output
Specifications
Attribute | Value |
|---|---|
| Test Current Rating | 200mA |
| Output Voltage | 690V ac |
| Display Type | LED |
| Battery Type | AA |
| Power Source | Battery |
| Dimensions | 150 x 80 x 35mm |
| Weight | 350g |
| Height | 35mm |
| Length | 150mm |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -10°C |
| Model Number p | PD690SX |
| Width | 80mm |
