Panasonic Pressure Sensor for Non-Corrosive Gas , 10bar Max Pressure Reading Relay

  • RS Stock No. 914-8369
  • Mfr. Part No. DP101EP
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

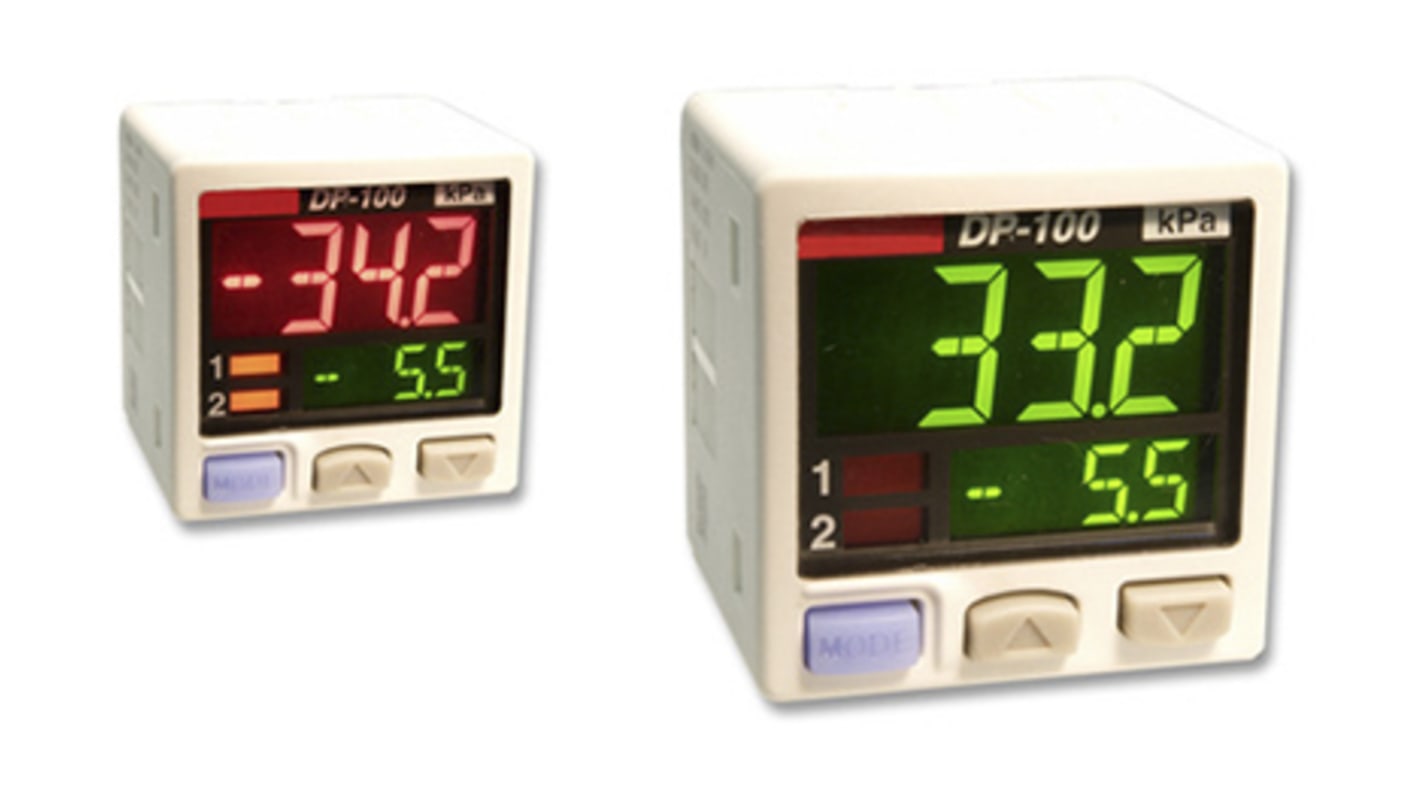

DP100 — Digital Pressure Gauge

Digital pressure gauge for relative pressure
Pressure measurement to 1 or 10 bar
Overpressure and vacuum measurement
Two-line LCD display
With and without analogue output and input
Data copying function
Adjustable reaction time
Pressure unit freely selectable
Programming of reference pressure
External zero alignment
Key lock function

Application

Suction pressure check
Reference pressure check
Leak test

Accessories

MSDP11 mounting bracket
MSDP12 panel mounting holder

Approvals

CE

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -1bar
Maximum Pressure Reading 10bar
Accuracy ±1 %
Output Type Relay
Media Measured Non-Corrosive Gas
Process Connection G1/8
Electrical Connection Wire Lead
Analogue Output 100 mA
Response Time 2.5 ms
Supply Voltage 12 → 24 V dc
Housing Material PBT
IP Rating IP40
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
15 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR489.79
MYR 488.14
units
Per unit
1 +
MYR488.14
