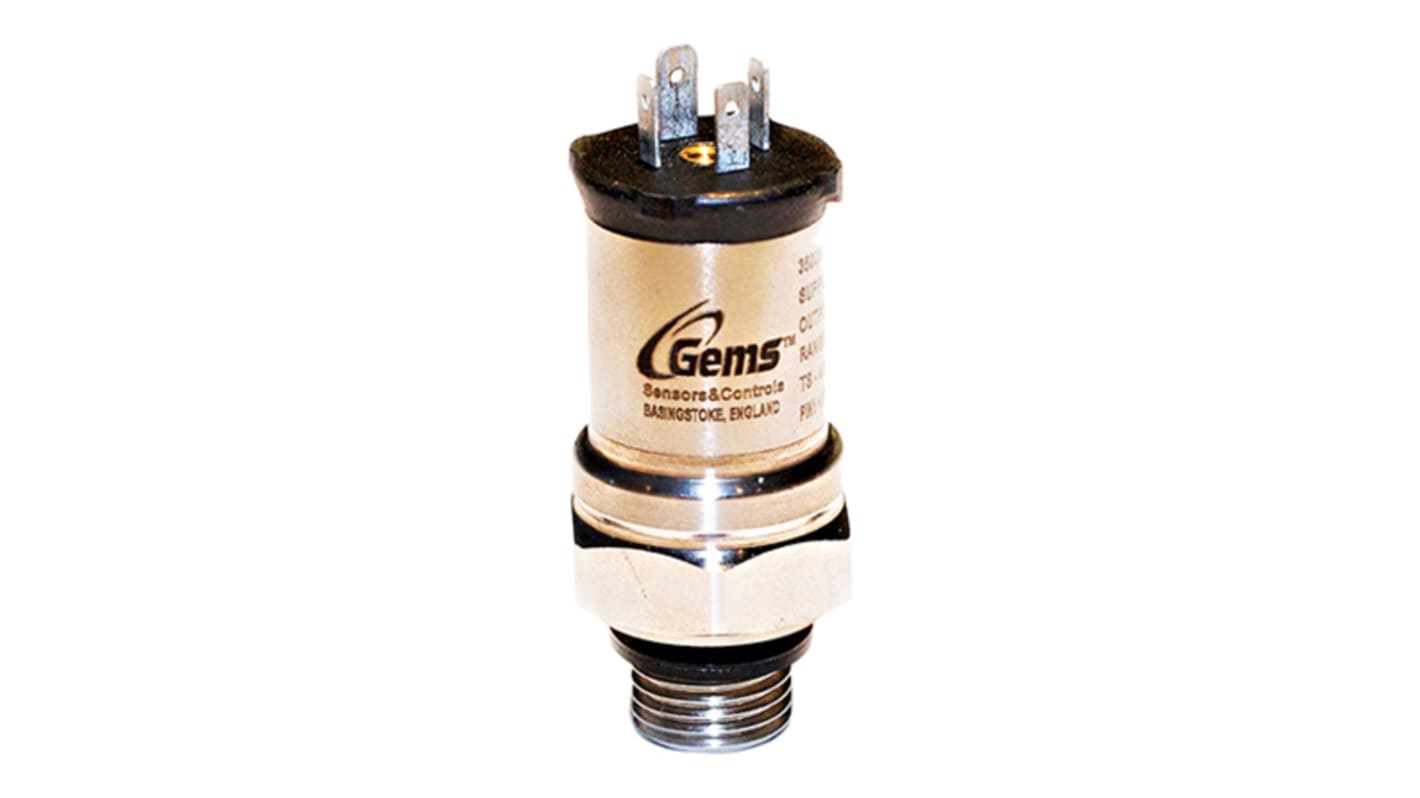

Gems Sensors Pressure Sensor, 1bar Max, Voltage Output, Relative Reading

RS Stock No.:: 896-8529
Mfr. Part No.:: 3500R0001G01B000
Manufacturer:: Gems Sensors

Gems Sensors Pressure Sensor, 1bar Max, Voltage Output, Relative Reading

8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR880.27

Units	Per Unit
1 +	MYR880.27

RS Stock No.:: 896-8529
Mfr. Part No.:: 3500R0001G01B000
Manufacturer:: Gems Sensors

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

3500 Series Compact Low Pressure Transmitters

3500 series compact low pressure OEM pressure transmitters with a wide choice of electrical outputs and electrical and pressure connections, which means that they are suitable for most applications without modification. The compact construction makes them ideal for installation where space is at a premium.

5 to 600 psi pressure ranges
Choice of outputs, electrical connections and pressure ports
Small package size
Stainless steel wetted parts
Operating temperature up to 125 ºC

Warning

THIS PRODUCT IS NOT PED CERTIFIED

Specifications

Attribute	Value
Pressure Reading Type	Relative
Maximum Pressure Reading	1bar
Accuracy	0.25 %
Output Type	Voltage
Media Measured	Air, Gas, Water
Process Connection	G1/4
Analogue Output	0 → 5 V
Electrical Connection	DIN 43650 Type C
Supply Voltage	30 V dc
Housing Material	Stainless Steel
Mounting Type	Threaded
Minimum Operating Temperature	-40°C
IP Rating	IP67
Maximum Operating Temperature	+125°C
