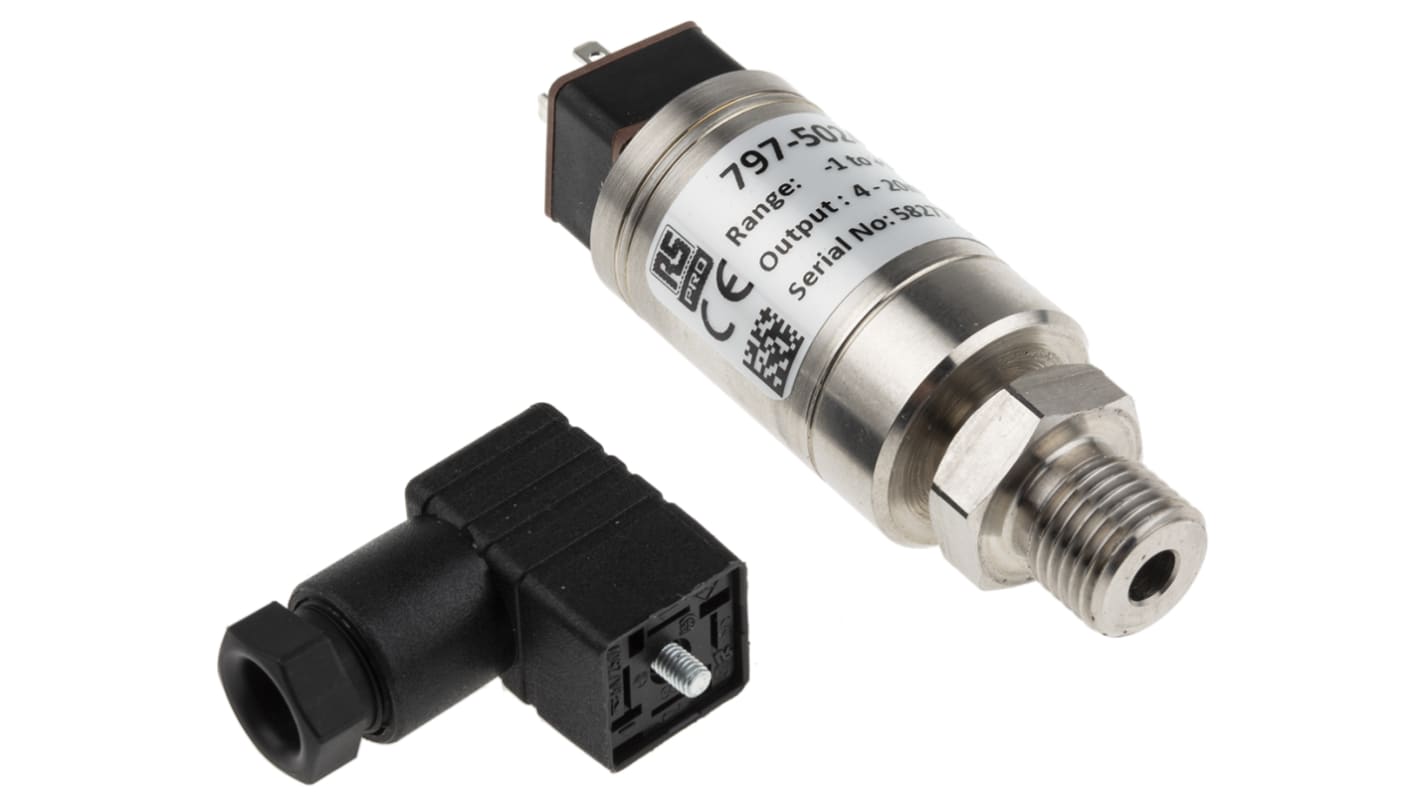

RS PRO Pressure Sensor, -1bar Min, 9bar Max, Current Output, Relative Reading
- RS Stock No.:
- 797-5024
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 31/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR1,475.80
| Units | Per Unit |
| 1 - 4 | MYR1,475.80 |
| 5 + | MYR1,214.60 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 797-5024
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details
RS PRO Pressure Sensors - IND series
These IND-series Pressure Sensors, also known as pressure transmitters from our own RS PRO brand are suitable for wide range of industrial applications. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless-steel housing.
Features and Benefits
• Piezo-resistive thick film ceramic sensor
• Compact and rugged
• BSP 1/ 4
• M12 4-pin connector
• CE Compliant
• Compact and rugged
• BSP 1/ 4
• M12 4-pin connector
• CE Compliant
Material Specifications
• Housing: Stainless Steel 316L
• O ring seals: Viton
• Diaphragm: Ceramic Al2 O3 96%
• Media wetted parts: Housing & connection, O ring seal, diaphragm
• Weight: 100 g
• Installation position: Flexible
• Operational Life: >100x 1000000 cycles
• Insulation resistance >50M Ohms at 50 Vdc
• IP67
Applications
• Temperature testing facilities
• Process control
• Automation
• Industrial measurement
• Process control
• Automation
• Industrial measurement
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 9bar |
| Accuracy | ±0.25 % |
| Output Type | Current |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Water |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | DIN 43650 Type C |
| Maximum Current | 20 mA |
| Supply Voltage | 9 → 32 V dc |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +135°C |
| IP Rating | IP65 |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Threaded |
