RS PRO Gauge for Air, Gas, Hydraulic Fluid, Liquid, Water Pressure Sensor, 24bar Max Pressure Reading , 9 32 V

  • RS Stock No. 797-4961
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

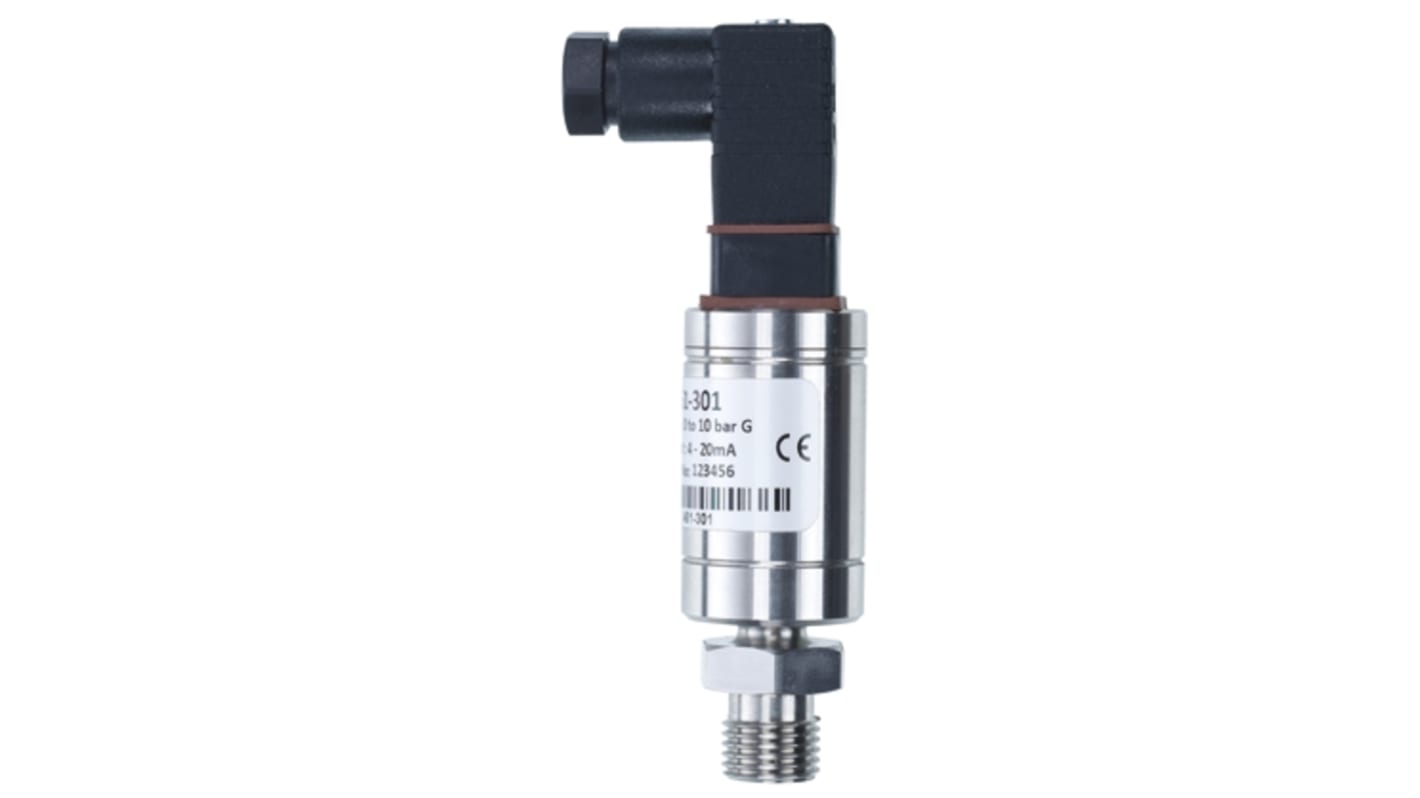

RS Pressure Transducers - IND series

The IND series is suitable for a wide range of industrial applications. It has a probe which uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing.

Piezo-resistive thick film ceramic sensor
Stainless steel body
+/- 0.25% accuracy
Different outputs including mV, Volts and mA
Microprocessor based amplifier
Operating temperature: -20 ºC to +135 ºC
Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -1bar
Maximum Pressure Reading 24bar
Accuracy ±0.25 %
Output Type Voltage
Media Measured Air, Gas, Hydraulic Fluid, Liquid, Water
Process Connection BSP 1/4
Analogue Output 0 5 V
Electrical Connection DIN 43650 Connector
Supply Voltage 9 32 V dc
Housing Material Stainless Steel
IP Rating IP65
Minimum Pressure Setting -1bar
Maximum Pressure Setting 400bar
Mounting Type Threaded
Minimum Operating Temperature -20°C
Maximum Operating Temperature +135°C
