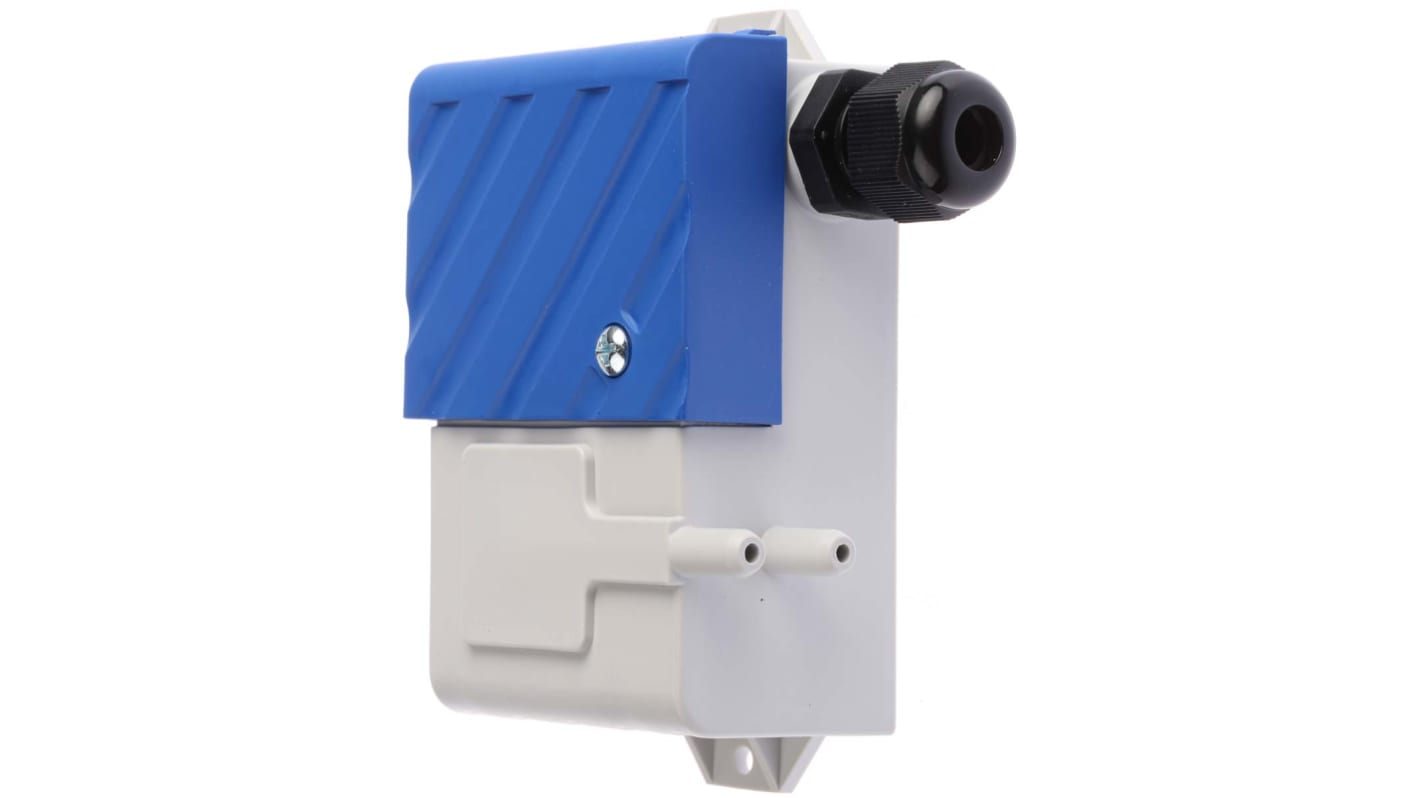

Gems Sensors Differential for Air, Non-Conductive Gas Pressure Sensor, 50Pa Max Pressure Reading , 24 V ac/dc

  • RS Stock No. 535-1202
  • Mfr. Part No. 5266050LBACTI
  • Manufacturer Gems Sensors
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Differential Pressure Transmitter Series 5266

Choice of output types
Wetted parts compatible with air or non-conductive gases
6.2mm tube fittings
Stainless steel welded sensor
1% full scale accuracy
-18°C to +65°C compensated temperature range
1s response time
Electrical connection via terminal strip
Dimensions: L100xD39xH89mm
Note, output is bi-directional.

Specifications
Attribute Value
Pressure Reading Type Differential
Minimum Pressure Reading -50Pa
Maximum Pressure Reading 50Pa
Accuracy ±1 %
Output Type Analogue
Media Measured Air, Non-Conductive Gas
Electrical Connection Terminal Strip
Analogue Output 0 → 10 V
Response Time 1 s
Supply Voltage 24 V ac/dc
Housing Material Stainless Steel
Minimum Operating Temperature -18°C
Maximum Operating Temperature +65°C
22 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 920.50
units
Per unit
1 +
MYR920.50
