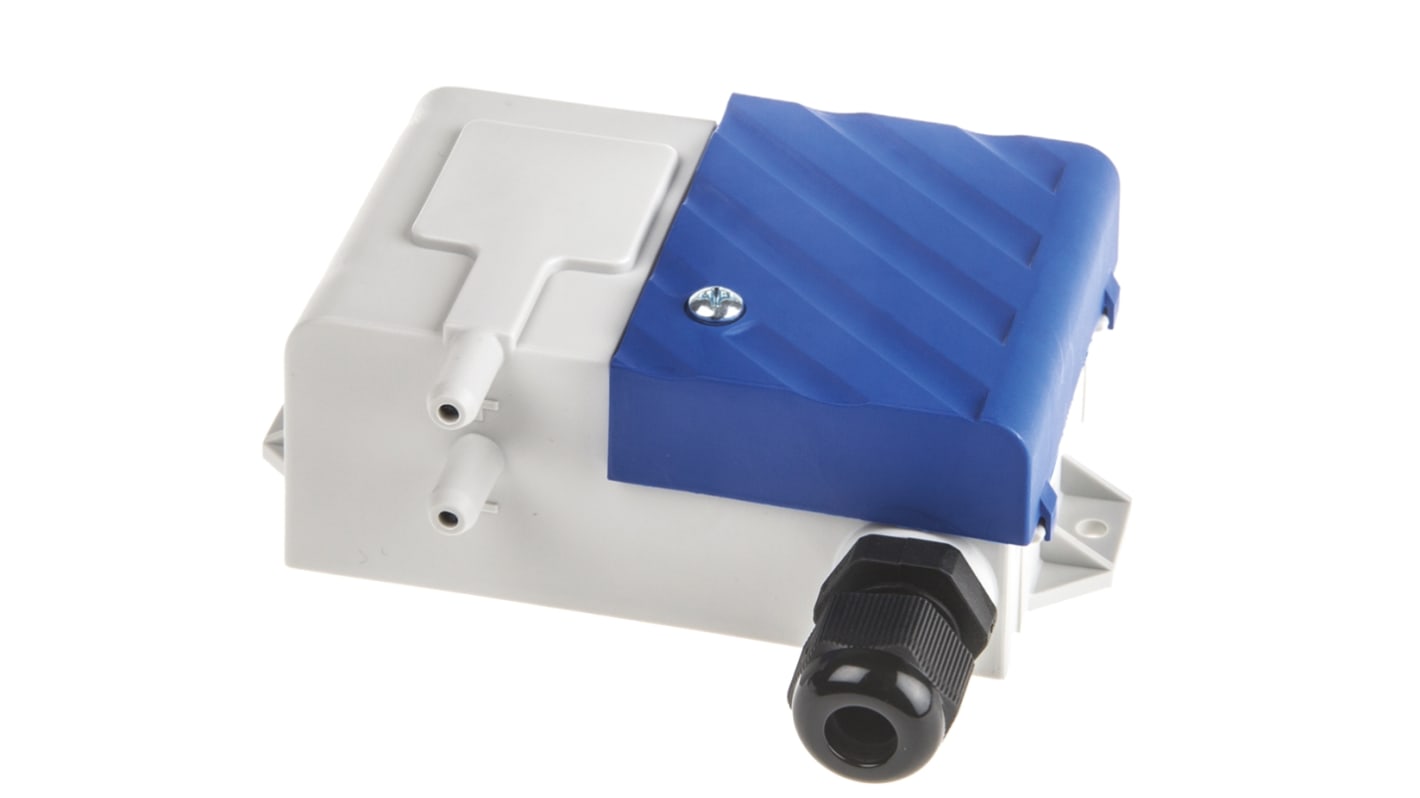

Gems Sensors Pressure Sensor, 0.01bar Min, 1000Pa Max, Analogue Output, Differential Reading
- RS Stock No.:
- 535-1195
- Mfr. Part No.:
- 526610CLBHTI
- Manufacturer:
- Gems Sensors
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,216.57
| Units | Per Unit |
| 1 + | MYR1,216.57 |
- RS Stock No.:
- 535-1195
- Mfr. Part No.:
- 526610CLBHTI
- Manufacturer:
- Gems Sensors
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
Differential Pressure Transmitter Series 5266
Choice of output types
Wetted parts compatible with air or non-conductive gases
6.2mm tube fittings
Stainless steel welded sensor
1% full scale accuracy
-18°C to +65°C compensated temperature range
1s response time
Electrical connection via terminal strip
Dimensions: L100xD39xH89mm
Note, output is bi-directional.
Wetted parts compatible with air or non-conductive gases
6.2mm tube fittings
Stainless steel welded sensor
1% full scale accuracy
-18°C to +65°C compensated temperature range
1s response time
Electrical connection via terminal strip
Dimensions: L100xD39xH89mm
Note, output is bi-directional.
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | 0.01bar |
| Maximum Pressure Reading | 1000Pa |
| Accuracy | ±1 % |
| Output Type | Analogue |
| Media Measured | Air, Non-Conductive Gas |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | Terminal Strip |
| Response Time | 1 s |
| Supply Voltage | 24 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -18°C |
| Maximum Operating Temperature | +65°C |
