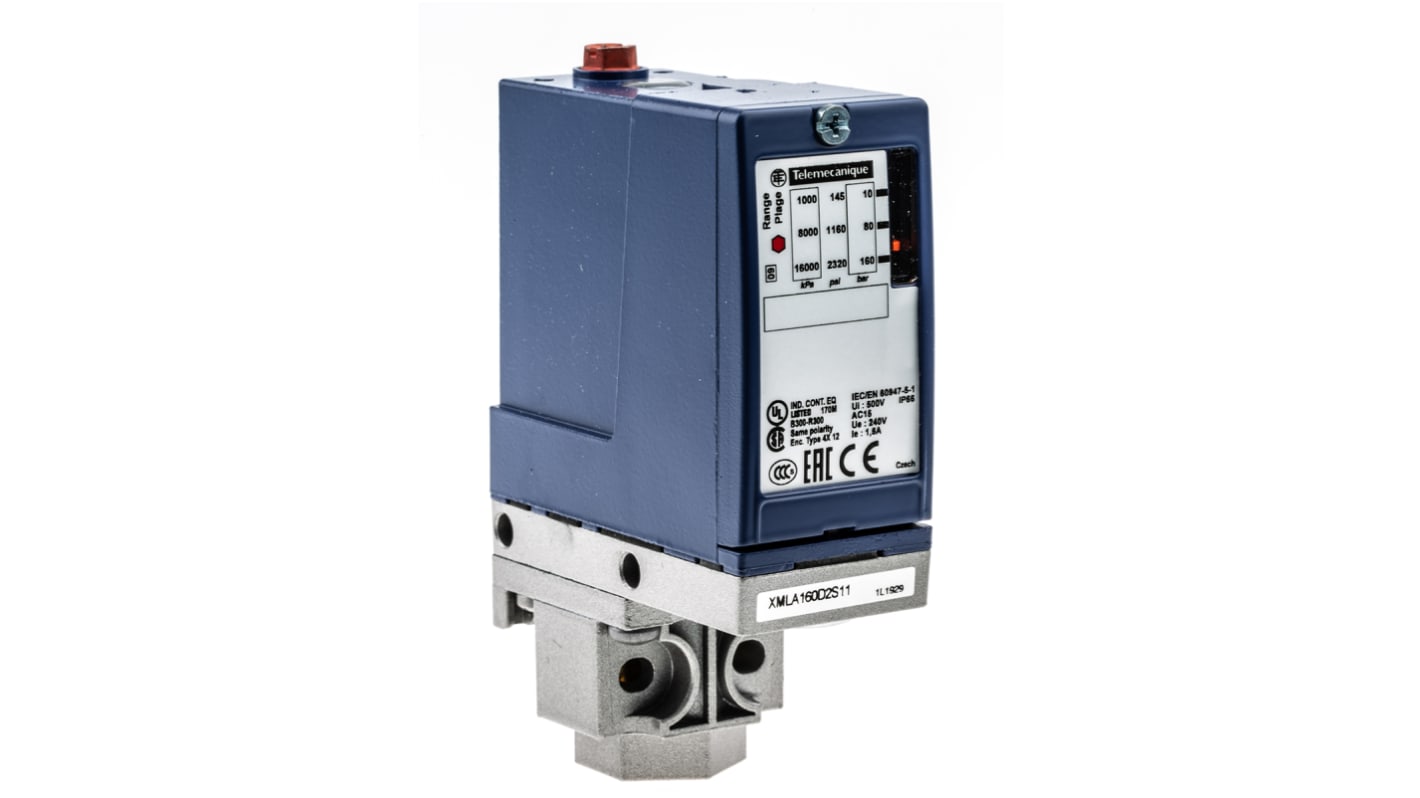

Telemecanique Sensors Pressure Sensor, 10bar Min, 160bar Max, Relay Output, Differential Reading

RS Stock No.:: 324-0964
Mfr. Part No.:: XMLA160D2S11
Manufacturer:: Telemecanique Sensors

Telemecanique Sensors Pressure Sensor, 10bar Min, 160bar Max, Relay Output, Differential Reading

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

22 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

Was MYR1,701.09

You pay

MYR1,616.04

Units	Per Unit
1 - 4	MYR1,616.04
5 +	MYR1,330.00

RS Stock No.:: 324-0964
Mfr. Part No.:: XMLA160D2S11
Manufacturer:: Telemecanique Sensors

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: MA

Product Details

OsiSense XMLA Pressure Switches

Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.

Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT

Note

Pressure quoted is 'per cycle' and (occasional)

Specifications

Attribute	Value
Pressure Reading Type	Differential
Minimum Pressure Reading	10bar
Maximum Pressure Reading	160bar
Accuracy	2 %
Output Type	Relay
Media Measured	Hydraulic Fluid
Process Connection	G1/4
Electrical Connection	PG13.5 Cable Gland
Maximum Current	3 A ac, 100 mA dc
Supply Voltage	120 → 240 V ac, 250 V dc
Housing Material	Zinc Alloy
IP Rating	IP66
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
