RS PRO Gauge Pressure Sensor, 300psi Max Pressure Reading , 9 <arrow/> 32 V dc, NPT 1/4, IP67

  • RS Stock No. 175-5047
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

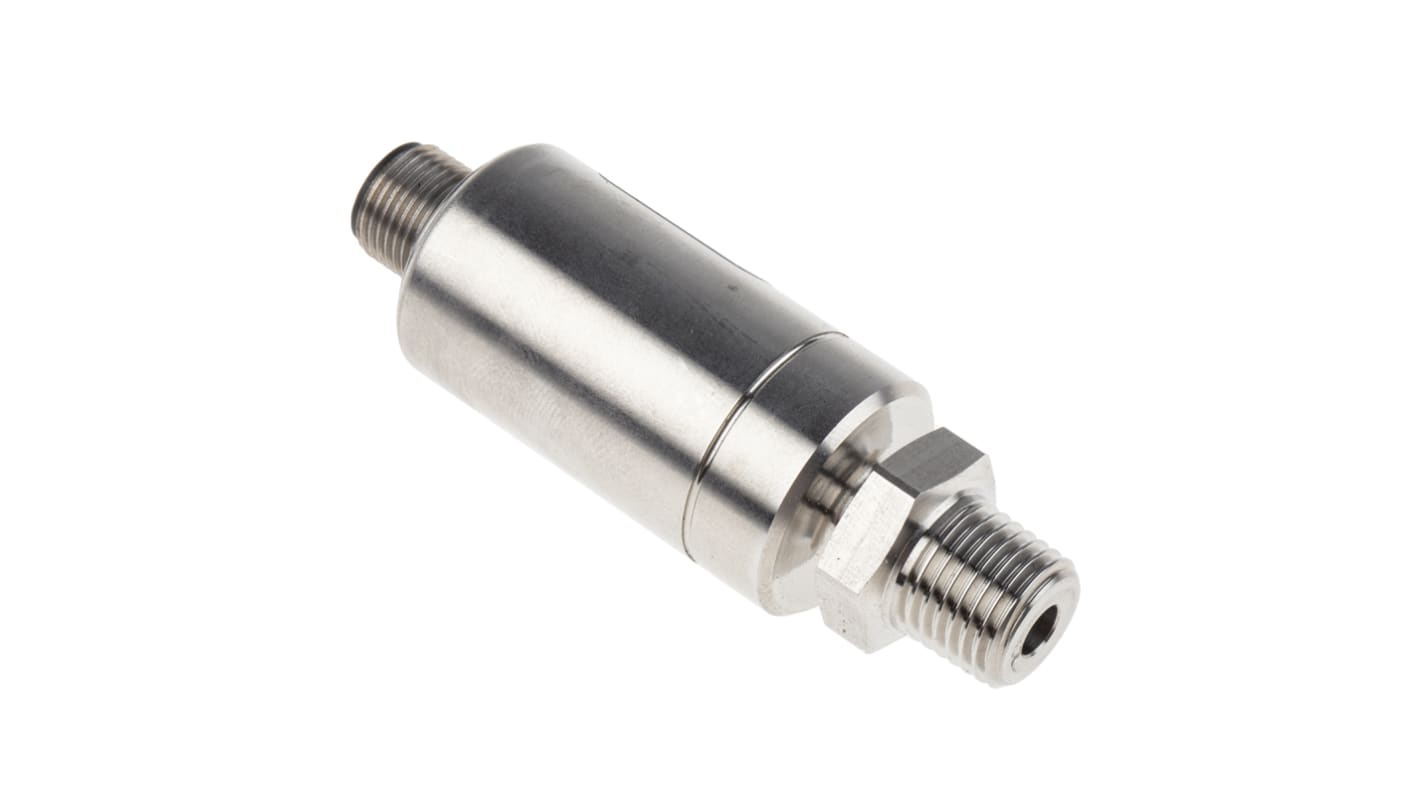

RS PRO Gauge Pressure Sensor

The RS PRO IPSU-M12 series pressure sensor has a housing made from 316L stainless steel with viton O-ring seals. It uses a piezo-electric thick film ceramic sensor. The nominal pressure output of this sensor ranges from -14.5psi to 5800psi. It has a 4-pin connector.

Features and Benefits

• Service temperature ranges between -20°C and 80°C • Accuracy is less than ±0.25% FS BFSL • Pressure rating ranges from 0psi to 300psi G (3-wire) • Threaded mounting

Applications

• Temperature testing facilities • Process control • Automation • Industrial measurement

Certifications

• CE certified

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0psi
Maximum Pressure Reading 300psi
Accuracy ±0.25 %
Output Type Analogue
Process Connection NPT 1/4
Electrical Connection M12 Connector
Analogue Output 0 <arrow/> 5 V
Supply Voltage 9 <arrow/> 32 V dc
Housing Material Stainless Steel
IP Rating IP67
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Mounting Type Threaded
Series IPSU
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 797.20
units
Per unit
1 +
MYR797.20
