RS PRO Pressure Sensor, 0bar Min, 0.1bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 175-5008
- Manufacturer:
- RS PRO
13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,420.40
| Units | Per Unit |
| 1 - 4 | MYR1,420.40 |
| 5 + | MYR1,168.99 |
- RS Stock No.:
- 175-5008
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details

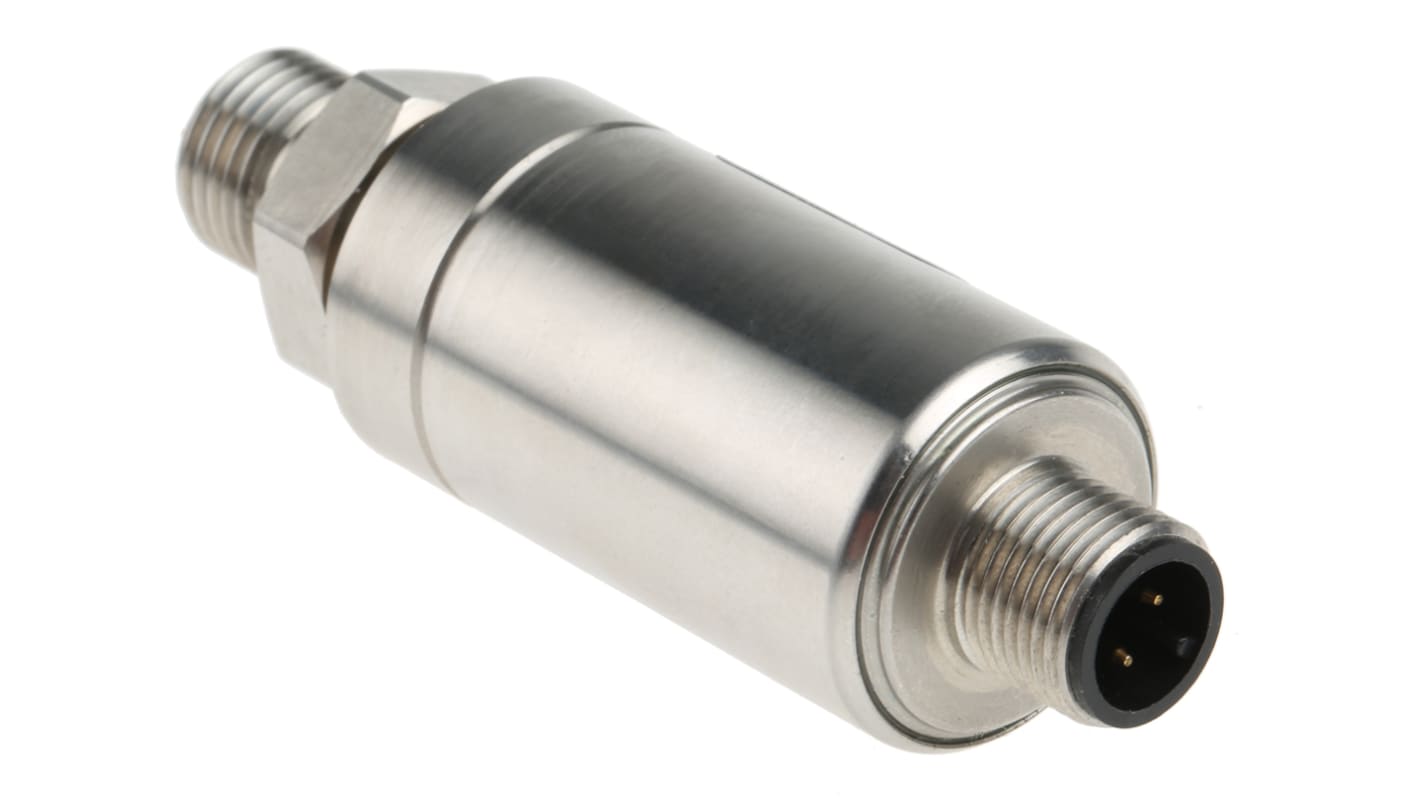

RS PRO Gauge Pressure Sensor
The RS PRO IPS-M12 series low range pressure sensor has a housing made from 316L stainless steel with viton O-ring seals. It uses a piezo-electric silicon sensor. The nominal pressure output of this sensor ranges from 50mbar to 1000bar. It has a 4-pin connector.
Features and Benefits
• Service temperature ranges between -20°C and 80°C
• Accuracy is less than ±0.25% FS BFSL
• Pressure rating ranges from 0mbar to 100mbar G
• Threaded mounting
• Accuracy is less than ±0.25% FS BFSL
• Pressure rating ranges from 0mbar to 100mbar G
• Threaded mounting
Applications
• HVAC
• Pneumatics
• Laboratory testing
• Agricultural machinery
• Pneumatics
• Laboratory testing
• Agricultural machinery
Certifications
• CE certified
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 0.1bar |
| Accuracy | ±0.25 % |
| Output Type | Analogue |
| Process Connection | G1/4 |
| Electrical Connection | M12 Connector |
| Analogue Output | 4 → 20 mA |
| Series | IPSL |
| Maximum Current | 20 mA |
| Supply Voltage | 9 → 32 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Threaded |
| Maximum Operating Temperature | +80°C |
