Herga GT27028 Series Pressure Sensor, 1in wg Min, 5in wg Max, SPDT Output, Differential Reading
- RS Stock No.:
- 154-2476
- Mfr. Part No.:
- 6101-0046
- Manufacturer:
- Herga
13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR270.07
| Units | Per Unit |
| 1 + | MYR270.07 |
- RS Stock No.:
- 154-2476
- Mfr. Part No.:
- 6101-0046
- Manufacturer:
- Herga
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

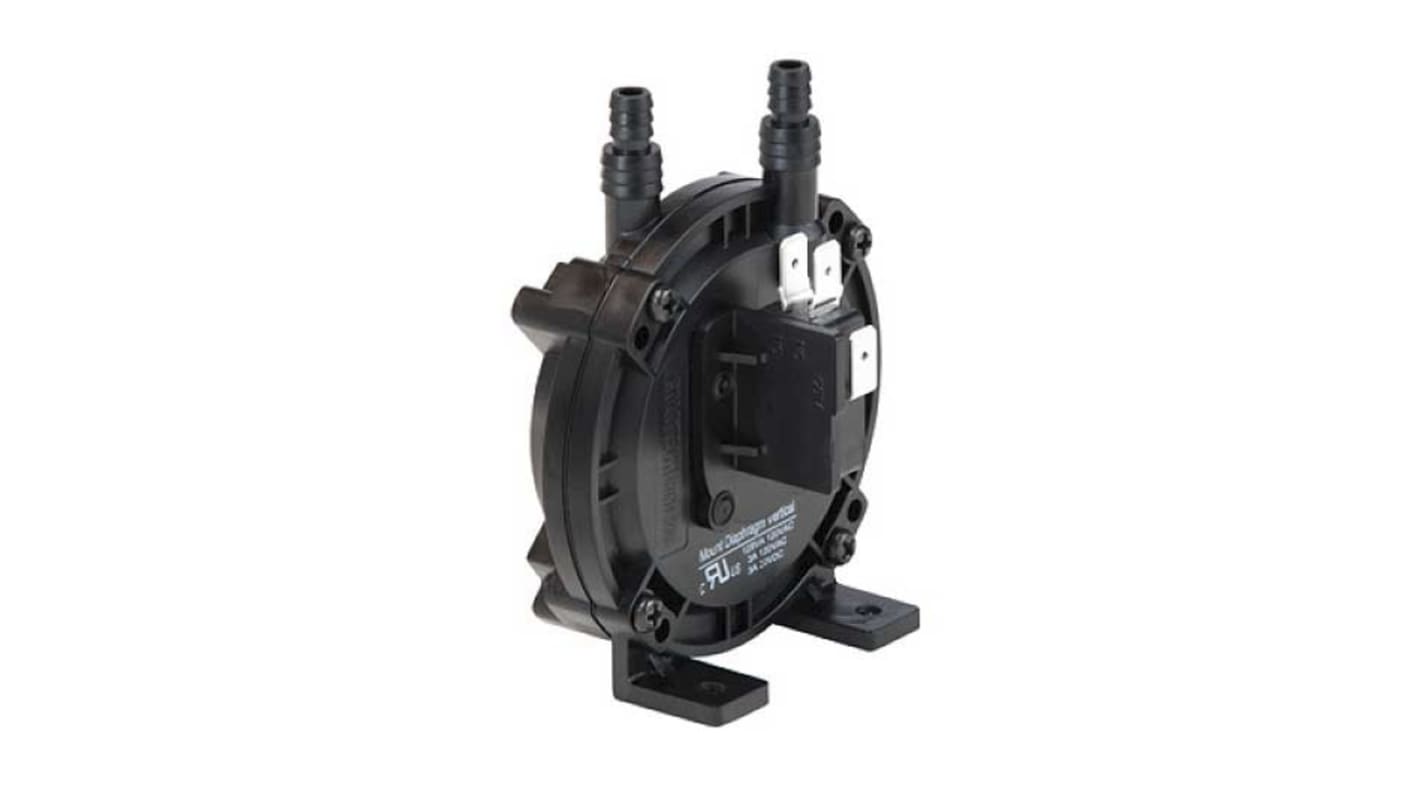

GT27028 differential pressure switch
Pressure range: 1.00” to 5.00” H20
Single pole change over contacts
Diaphragm material: Post cured Silicone
Burst pressure: 1 PSI
Operating Temperature: -25°C to +105°C
Electrical rating: 5A 250V AC
Vertical mount recommended
Pressure range: 1.00” to 5.00” H20
Single pole change over contacts
Diaphragm material: Post cured Silicone
Burst pressure: 1 PSI
Operating Temperature: -25°C to +105°C
Electrical rating: 5A 250V AC
Vertical mount recommended
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | 1in wg |
| Maximum Pressure Reading | 5in wg |
| Accuracy | ±10 % |
| Output Type | SPDT |
| Process Connection | 10.5 mm Tube, 7.4 mm Tube |
| Electrical Connection | Quick Connect |
| Series | GT27028 |
| Maximum Current | 5 A |
| Supply Voltage | 125 → 250 V ac |
| Housing Material | Polyphenylene Oxide |
| Mounting Type | Chassis Mount |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +105°C |
