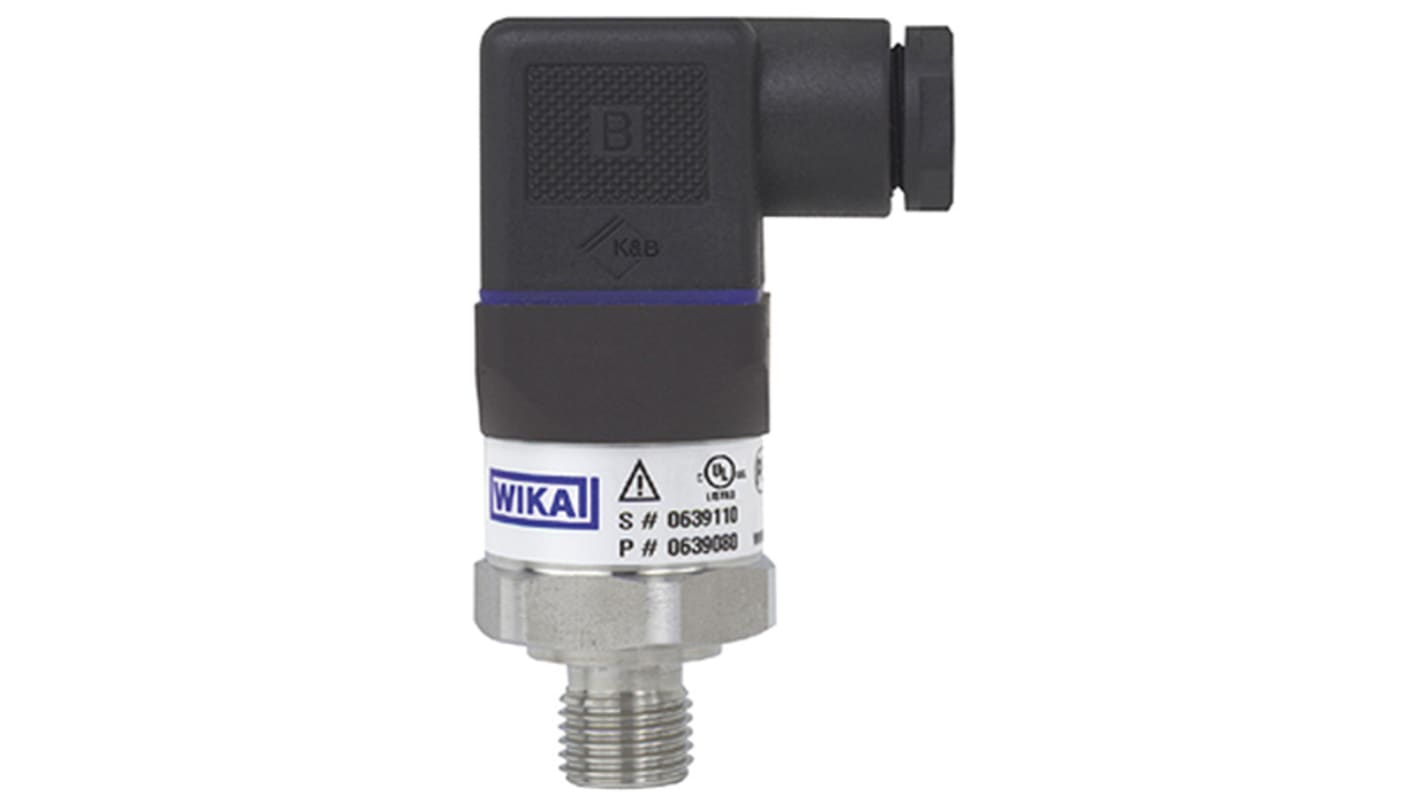

WIKA for Gas, Liquid Pressure Sensor, 9bar Max Pressure Reading , 8 30 V dc, G1/4, IP65

  • RS Stock No. 124-1483
  • Mfr. Part No. 46879287
  • Manufacturer WIKA
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Wika A10 Series Pressure Sensor

Wika A-10 range of pressure transmitters suitable in demanding applications provide the user with a precision engineered product. Suitable for use within a vast range of industrial & OEM pressure measurement applications. Resistant to vibration, shock & wide temperature variations thanks to a rugged exterior.

Compact industrial pressure / level transmitter for gas, liquid
Rugged design
Fully welded stainless steel wetted parts
High performance
Fast response <4 milliseconds
cULus and EAC certified
Designed to withstand 100 million pressure cycles
Shock resistance per IEC 60068-2-27 to 500g, vibration resistance per IEC 60068-2-6 to 10g

Specifications
Attribute Value
Minimum Pressure Reading -1bar
Maximum Pressure Reading 9bar
Accuracy 0.5 %
Output Type Analogue
Media Measured Gas, Liquid
Process Connection G1/4
Electrical Connection DIN 175301-803 C
Analogue Output 0 5 V
Response Time < 4 ms
Supply Voltage 8 30 V dc
Housing Material Stainless Steel
IP Rating IP65
Minimum Pressure Setting -1bar
Maximum Pressure Setting 9bar
Minimum Operating Temperature 0°C
Maximum Operating Temperature +80°C
Series A-10
2 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 707.31
units
Per unit
1 +
MYR707.31
