Fluke 700PTP-1 Pressure Pump, Pressure Connection 1/4 NPT, Pump Type Pneumatic 467g 40bar

  • RS Stock No. 543-853
  • Mfr. Part No. 700PTP-1
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

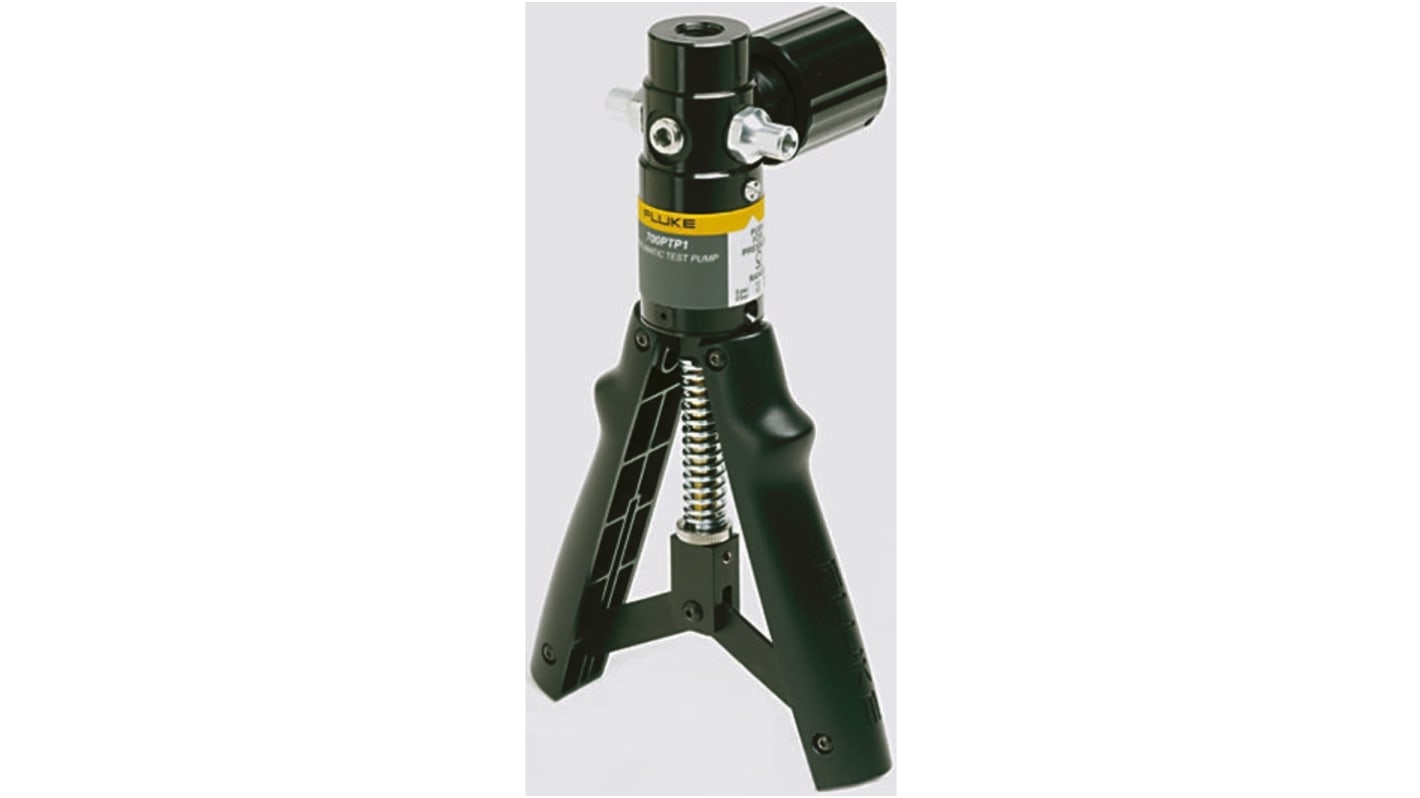

Fluke Pneumatic Test Pump

The Fluke-700PTP-1 manual pneumatic test pump is capable of supplying pressures of up to 40 bar (600 psi). It is suitable for use with 700 series pressure modules or test gauges, and can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. It can also be used with the 700 series pressure calibrators, which are ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 40 bar (600 psi).
The pump has ” NPT female connections to both the reference gauge or pressure module, and the unit under test.

Pump can be easily cleaned without disassembly
The vernier can be used as a stand-alone low pressure calibration source
Two pressure ports allowing simultaneous connection
Adjustable stroke length can be set to limit the pressure per stroke

Size: 220 x 122 x 89 mm
Weight: 467 g
Wetted materials: aluminium, silicon, neoprene, stainless steel, Buna-N

Supplied with

1//4 in NPT male to 1//4 in BSP female, 1 meter of hose, 2 x 1//8 in NPT male quick connects, 1//8 NPT female to 1//4 in BSP female & Seal Kit

Specifications
Attribute Value
Pump Type Pneumatic
Maximum Pressure 40bar
Pressure Connection 1/4 NPT
Weight 467g
3 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 5,053.65
units
Per unit
1 +
MYR5,053.65
