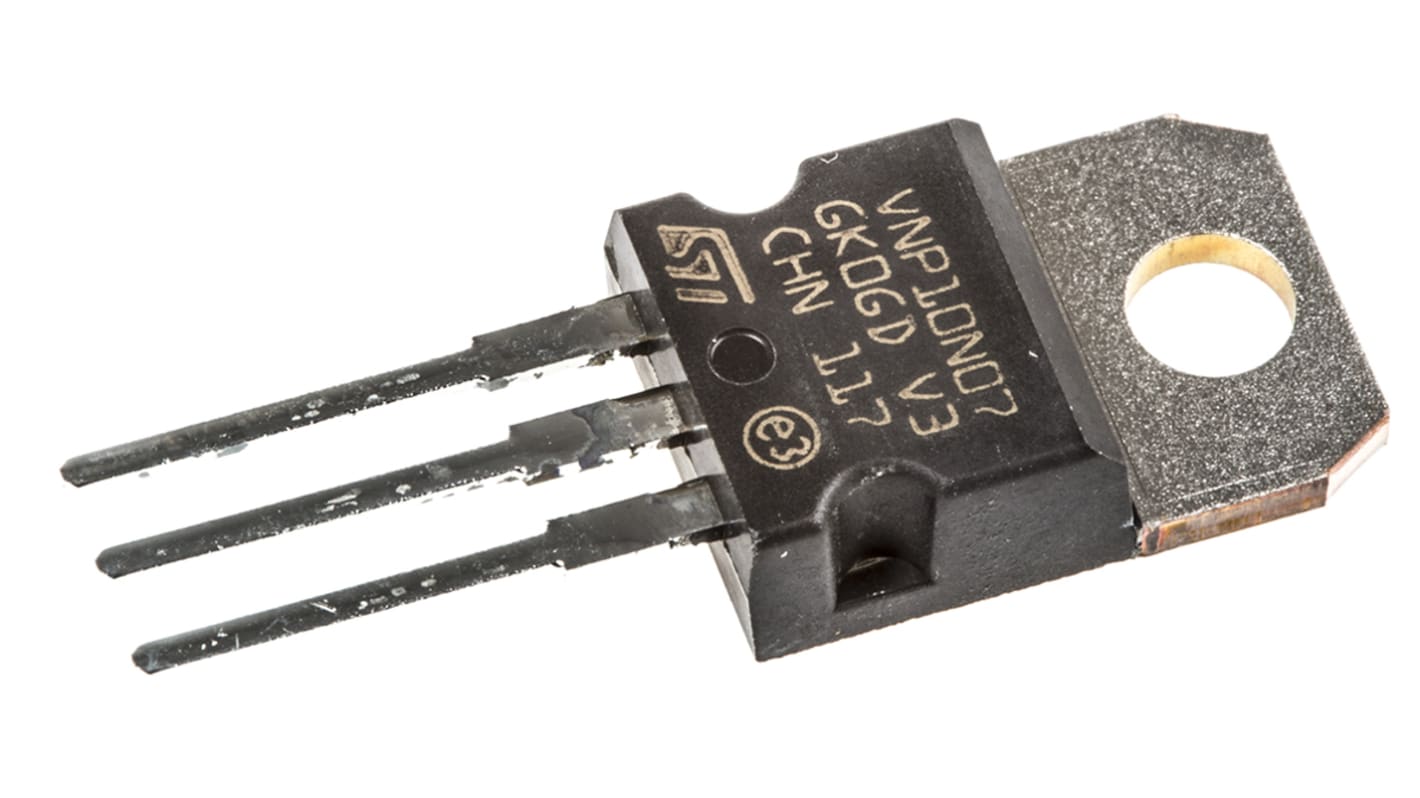

STMicroelectronics VNP10N07-E, OMNIFET: Fully Autoprotected Power MOSFET Power Switch IC 3-Pin, TO-220
- RS Stock No.:
- 686-8518
- Mfr. Part No.:
- VNP10N07-E
- Manufacturer:
- STMicroelectronics
54 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 2)
MYR11.79
| Units | Per Unit | Per Pack* |
| 2 - 12 | MYR11.79 | MYR23.58 |
| 14 - 24 | MYR11.54 | MYR23.08 |
| 26 + | MYR11.185 | MYR22.37 |
| *price indicative | ||
- RS Stock No.:
- 686-8518
- Mfr. Part No.:
- VNP10N07-E
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
OMNIFET Fully Auto-Protected Power MOSFET, STMicroelectronics
The OMNIFET series of fully auto-protected low-side drivers, are measured on the criteria of ruggedness and improved reliability. These solid state power switches are designed for inductive or resistive loads, especially in the automotive environment.
Linear current limitation
Thermal shut down
Short circuit protection
ESD protection
Integrated clamp
Thermal shut down
Short circuit protection
ESD protection
Integrated clamp
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Intelligent Power Switches, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | OMNIFET: Fully Autoprotected Power MOSFET |
| Maximum Operating Supply Voltage | 70 V |
| Maximum Operating Current | 10A |
| Number of Outputs | 1 |
| Mounting Type | Through Hole |
| Package Type | TO-220 |
| Pin Count | 3 |
| Dimensions | 10.4 x 4.6 x 15.75mm |
