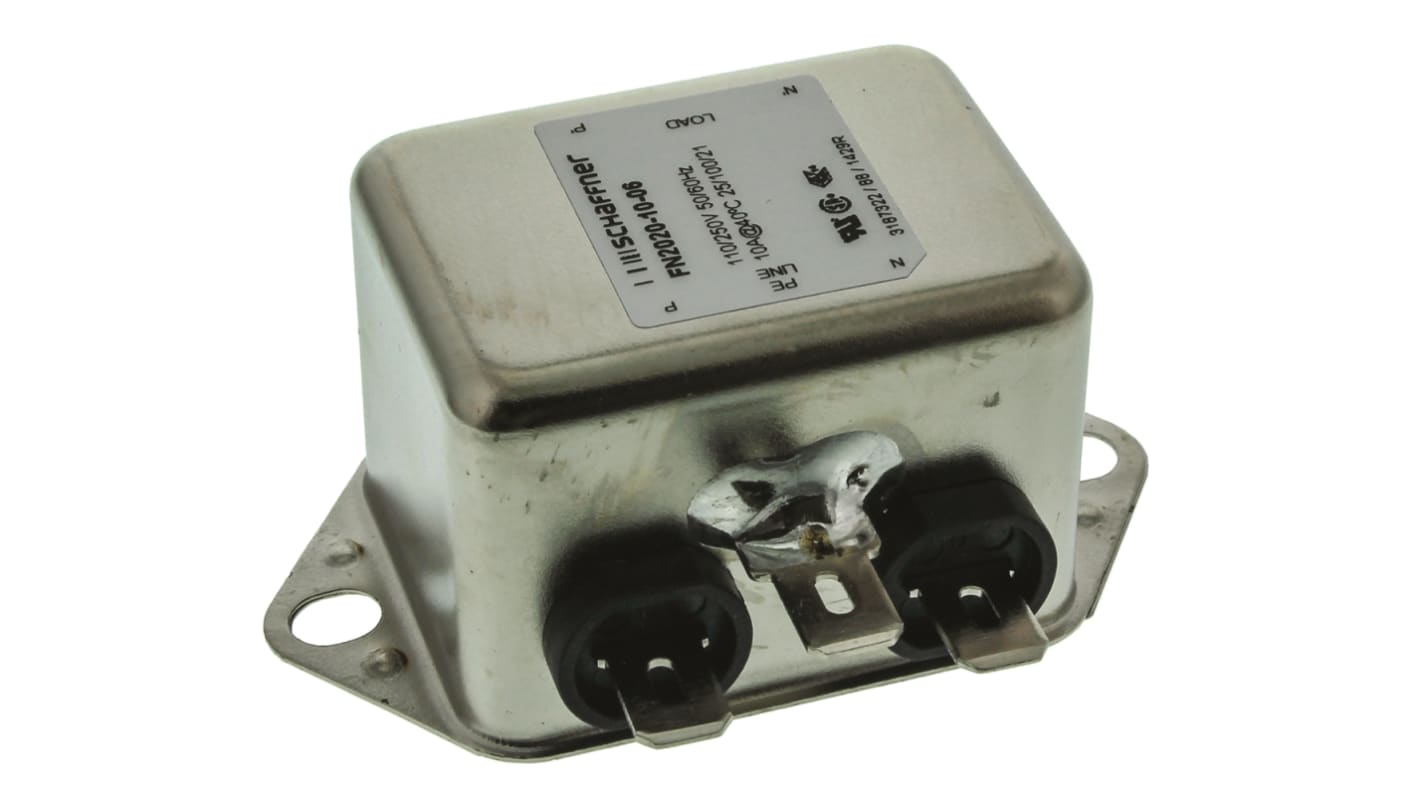

Schaffner FN2020 Series 10A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals

  • RS Stock No. 170-5002
  • Mfr. Part No. FN2020-10-06
  • Manufacturer Schaffner
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

FN2020 Series

FN2020 filters are designed for easy and fast chassis mounting and are also avaialble as B versions, the Medical option and A version the Safety option. All FN2020 filters provide a general purpose attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

Higher phase to neutral capacitance for better differential mode performance
Connection by 0.25in Faston terminals

Approvals

UL recognised component, CSA certified, VDE

Specifications
Attribute Value
Maximum Current Rating 10A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Tab
Series FN2020
Number of Stages Single Stage
Operating Frequency 400Hz
Length 64mm
Depth 35mm
Capacitance 4.7 nF, 150 nF
Height 29.3mm
Dimensions 64 x 35 x 29.3mm
Inductance 800 μH
Minimum Operating Temperature -25°C
Leakage Current 0.74 mA
Maximum Operating Temperature +100°C
Resistance 1MΩ
60 In Global stock for delivery within 4 - 6 working days
Price Each (In a Box of 60)
MYR 49.41
units
Per unit
Per Box*
60 +
MYR49.41
MYR2,964.60
*price indicative
