Product Details

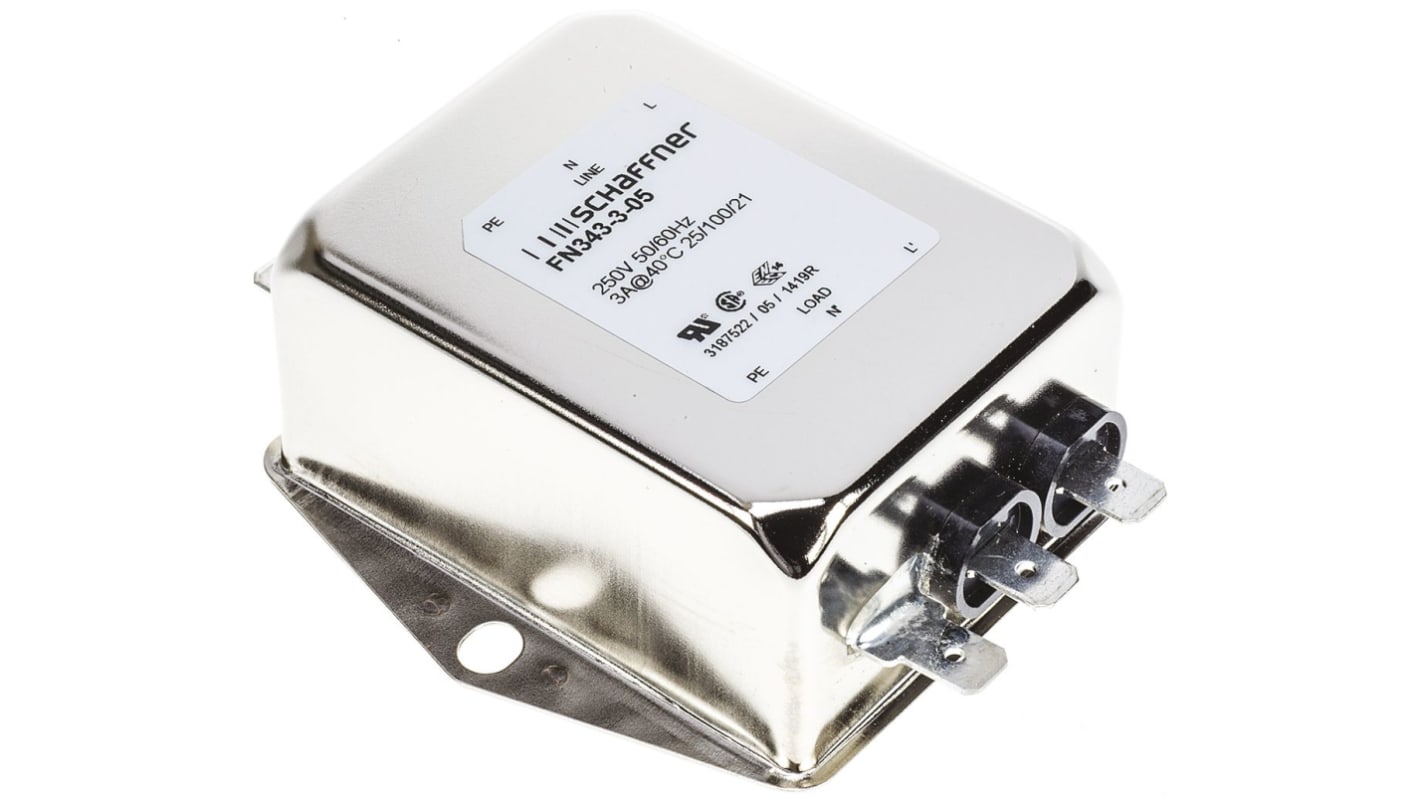

FN 343 Series Two-stage General Purpose Filters
Schaffner performance FN 343 EMI Filters are compact in design for easy and fast chassis mounting. Single-phase filters provide an excellent
Attenuation performance, based on chokes with high saturation and excellent thermal behaviour. Also feature integrated earth line choke. Rated currents from 1 A to 10 A
Attenuation performance, based on chokes with high saturation and excellent thermal behaviour. Also feature integrated earth line choke. Rated currents from 1 A to 10 A
Applications
Electrical and electronic equipment
Household equipment
Power supplies
Consumer goods
Office automation equipment
Datacom equipment
Household equipment
Power supplies
Consumer goods
Office automation equipment
Datacom equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Maximum Current Rating | 3A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Chassis Mount |
Termination Style | Tab |
Series | FN 343 |
Number of Stages | Two Stage |
Operating Frequency | 400Hz |
Length | 70mm |
Height | 30.3mm |
Capacitance | 2.2 nF, 100nF |
Inductance | 1.1 mH, 2 mH, 400 μH |
Minimum Operating Temperature | -25°C |
Leakage Current | 0.34 mA |
Maximum Operating Temperature | +100°C |
Resistance | 1MΩ |
Power Loss | 6.1W |
