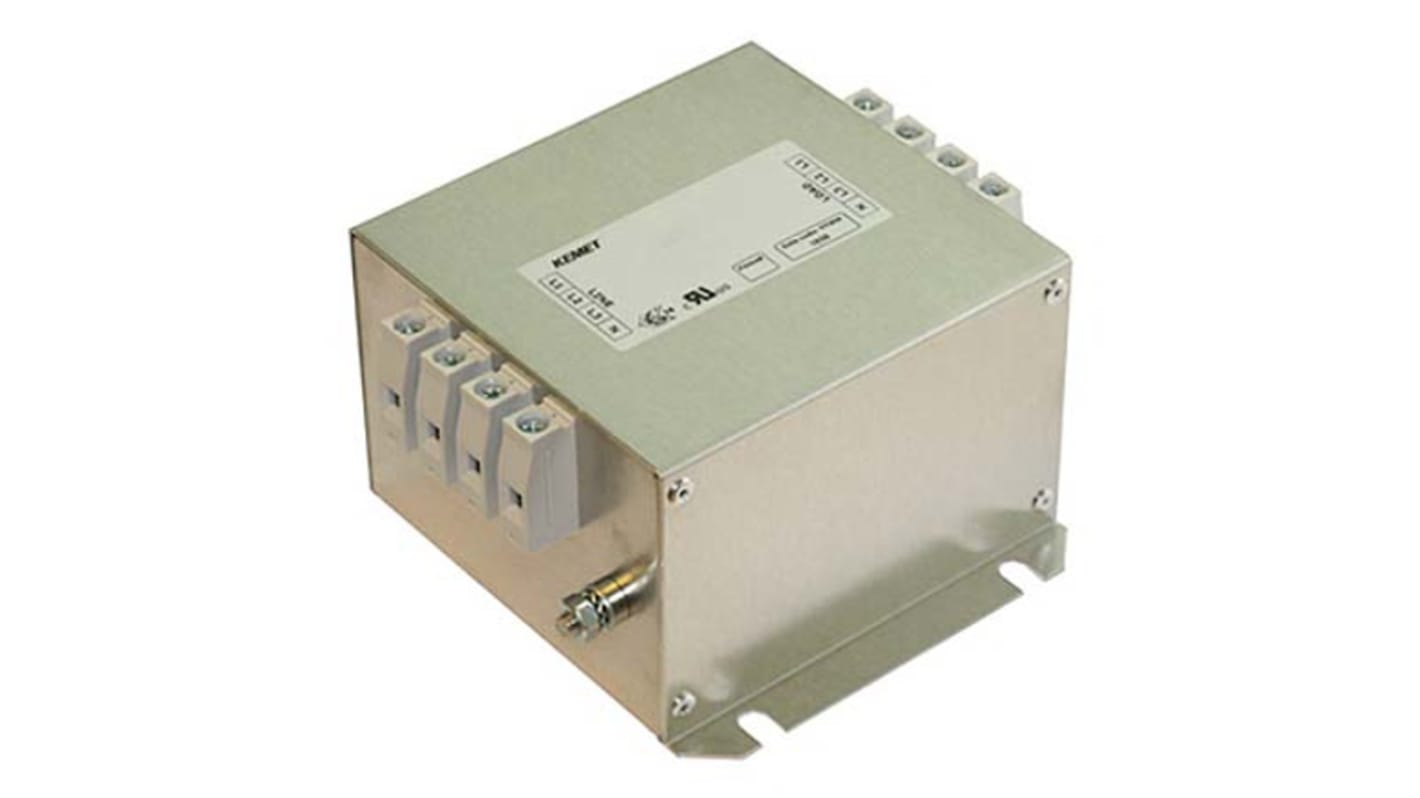

KEMET FLLD4 Series 64A 530/305 V ac 50 → 60Hz Chassis Mount Power Line Filter, with Terminal Block Terminals

  • RS Stock No. 136-8847
  • Mfr. Part No. FLLD4064ATHT5
  • Manufacturer KEMET
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

KEMET FLLD4-TH 3 Phase EMC Filters

KEMET FLLD4 -TH 3 phase and neutral EMC filter is a compact general purpose filter with terminal blocks for quick and easy installation. Rated voltage 530/305 V ac,Temperature range -25°C to +100°C

Applications

Switch mode supplies
Servo Drives
Robotics
Battery chargers
Inverters and converters
Industrial applicationsMachine tools

Approvals

IEC/EN 60939-3
ANSI/UL 60939-3-2016

Specifications
Attribute Value
Maximum Current Rating 64A
Maximum Voltage Rating 530/305 V ac
Mounting Type Chassis Mount
Termination Style Terminal Block
Number of Phases 3
Series FLLD4
Operating Frequency 50 → 60Hz
Length 160mm
Depth 125mm
Height 125mm
Dimensions 160 x 125 x125mm
Leakage Current 11 mA
Minimum Operating Temperature -25°C
Maximum Operating Temperature +100°C
Power Loss 18W
Temporarily out of stock - back order for despatch 31/01/2020, delivery within 4 working days from despatch date
Price Each
MYR 702.62
units
Per unit
1 +
MYR702.62
