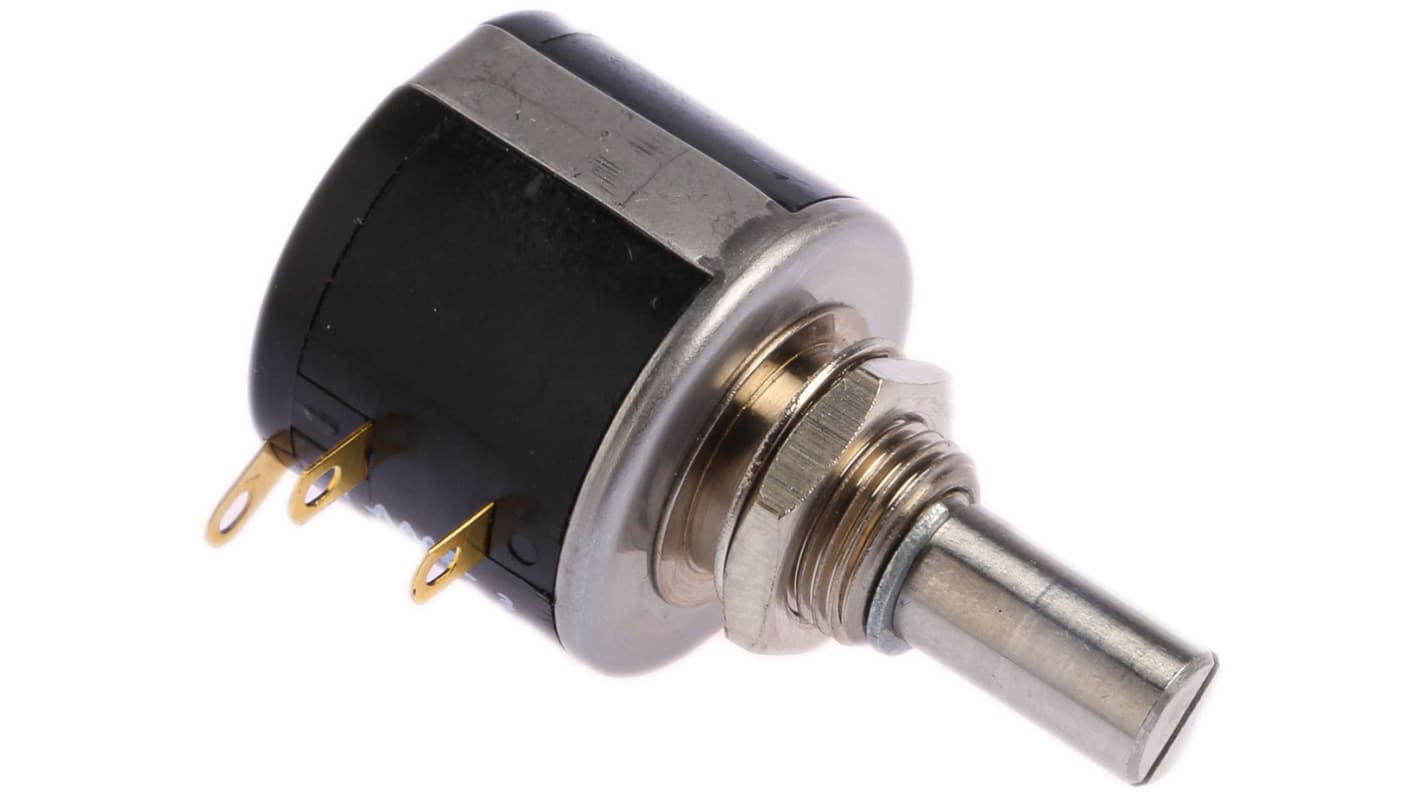

Vishay 1kΩ Rotary Potentiometer 10-Turns 1-Gang Bushing Mount, 534-1-1-102
- RS Stock No.:
- 850-9791
- Mfr. Part No.:
- 534-1-1-102
- Manufacturer:
- Vishay
22 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
135 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR114.18
| Units | Per Unit |
| 1 - 24 | MYR114.18 |
| 25 - 99 | MYR112.20 |
| 100 - 249 | MYR109.51 |
| 250 + | MYR106.49 |
- RS Stock No.:
- 850-9791
- Mfr. Part No.:
- 534-1-1-102
- Manufacturer:
- Vishay
Legislation and Compliance
Product Details
22mm 10 Turn Servo Mount 534 Series
Suitable for use with precision d.c. motor systems as precision transducers (refer to the Motors Section)
Stainless steel shaft
Supplied with mounting kit* consisting of 3 clamps, nuts, screws and mounting instructions
Stainless steel shaft
Supplied with mounting kit* consisting of 3 clamps, nuts, screws and mounting instructions
Note
* Mounting kit is not required when used with servo pot mounting kit. It is essential to prevent rotation of the shaft beyond the mechanical travel of 360°x10 turns.
Precision - Multi-Turn and Servo
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 1kΩ |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power Rating | 2W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Bushing Mount |
| Termination Style | Turret |
| Shaft Length | 20.6mm |
| Shaft Diameter | 6.35 mm |
| Series | 534 |
| Actuator Type | Slotted Shaft |
| Tolerance | ±5% |
