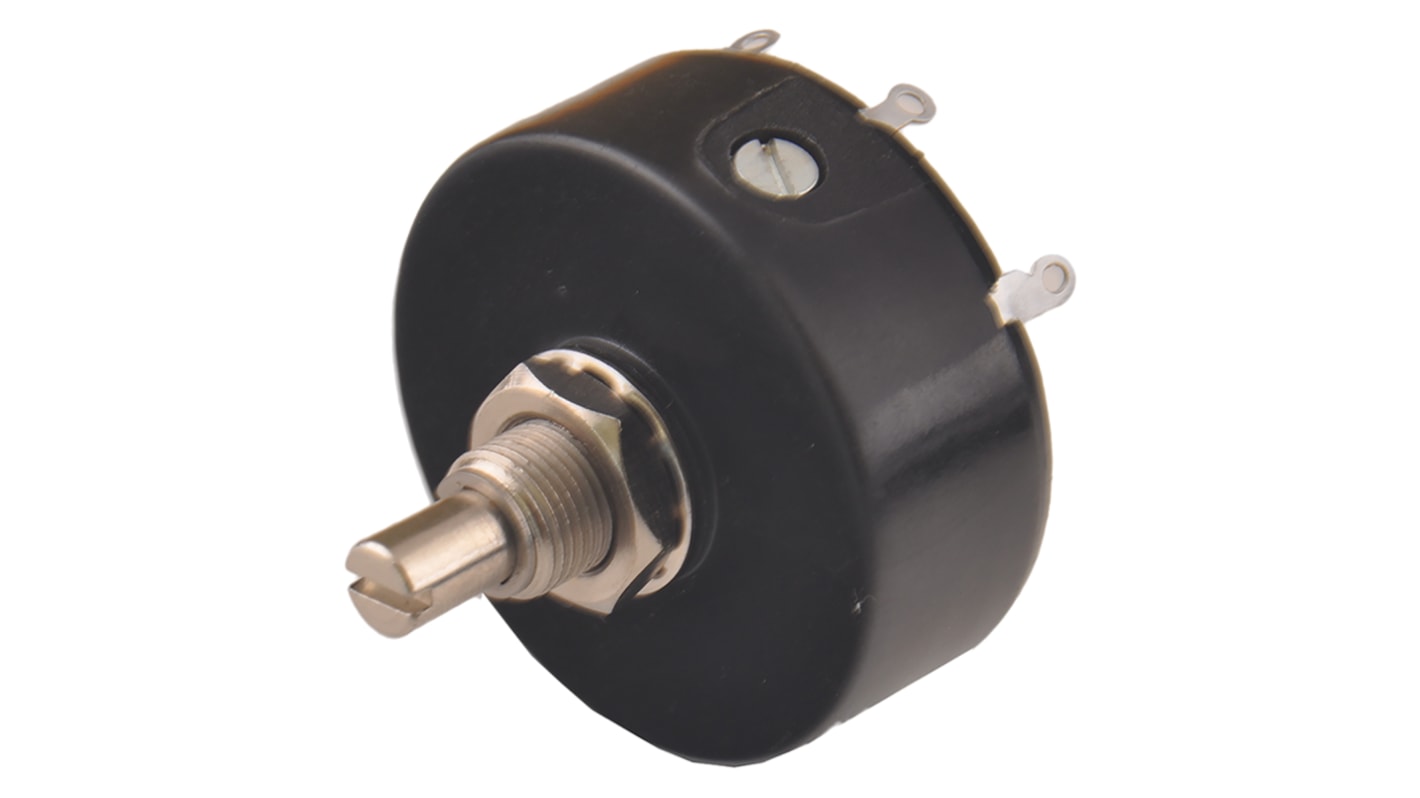

RS PRO 50kΩ Rotary Potentiometer 1-Gang Panel Mount
- RS Stock No.:
- 842-7040
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 05/08/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR113.11
| Units | Per Unit |
| 1 - 12 | MYR113.11 |
| 13 - 64 | MYR110.72 |
| 65 + | MYR91.13 |
- RS Stock No.:
- 842-7040
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
RS 40mm Wirewound Potentiometers
This series of RS potentiometers offer a range of resistance options between 100Ω and 10kΩ. They are single turn wirewound potentiometers with a 6mm diameter shaft and a rotational life of 100,000 revolutions.
±10% standard resistance tolerance
285° rotation (mechanical angle)
3W power rating
285° rotation (mechanical angle)
3W power rating
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 50kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 3W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Panel Mount |
| Termination Style | Solder |
| Shaft Length | 68mm |
| Shaft Diameter | 6.35 mm |
| Series | P40 |
| Tolerance | ±10% |
| Actuator Type | Slotted Shaft |
