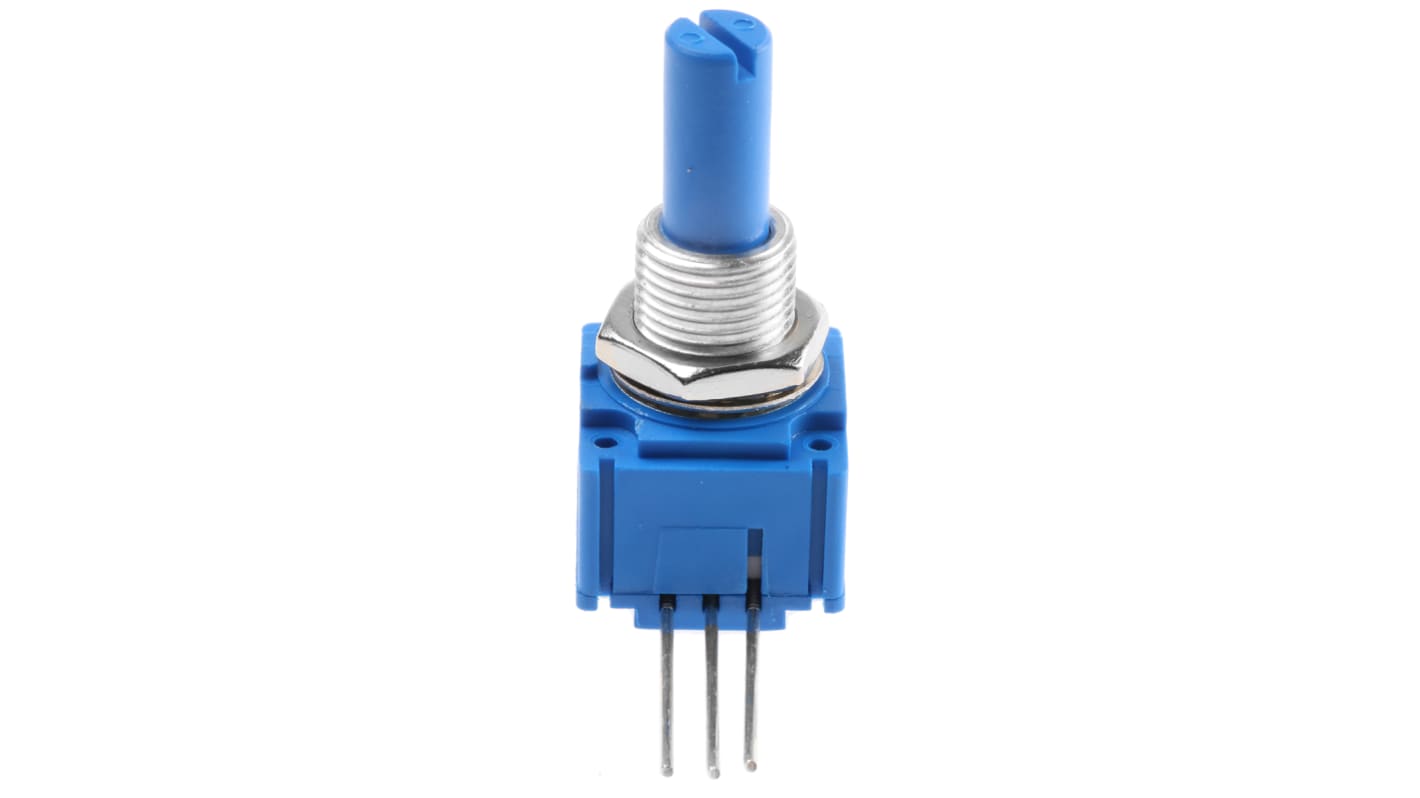

Bourns 10kΩ Rotary Potentiometer 1-Gang, Panel Mount (Through Hole), 91A1A-B28-B15L
- RS Stock No.:
- 692-8660
- Mfr. Part No.:
- 91A1A-B28-B15L
- Manufacturer:
- Bourns
27 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR38.86
| Units | Per Unit |
| 1 - 11 | MYR38.86 |
| 12 - 22 | MYR36.69 |
| 23 + | MYR34.09 |
- RS Stock No.:
- 692-8660
- Mfr. Part No.:
- 91A1A-B28-B15L
- Manufacturer:
- Bourns
Technical data sheets
Legislation and Compliance
Product Details
16 mm 91 Series
Bourns 91 Series are single turn, rotary linear potentiometers.
Features and Benefits:
Available in various pin-out configurations
One piece shaft and rotor assembly
Panel and PCB mountable
Conductive plastic resistance element
Linear and audio (log) output track options
Long mechanical life (100000 cycles)
Plastic or metal slotted shaft
Available in various pin-out configurations
One piece shaft and rotor assembly
Panel and PCB mountable
Conductive plastic resistance element
Linear and audio (log) output track options
Long mechanical life (100000 cycles)
Plastic or metal slotted shaft
Supplied with
Metal lock washer and nut.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 10kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.5W |
| Electrical Taper | Linear |
| Element Material | Conductive Plastic |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pin |
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35 mm |
| Tolerance | ±20% |
| Series | 91 |
| Actuator Type | Slotted Shaft |
