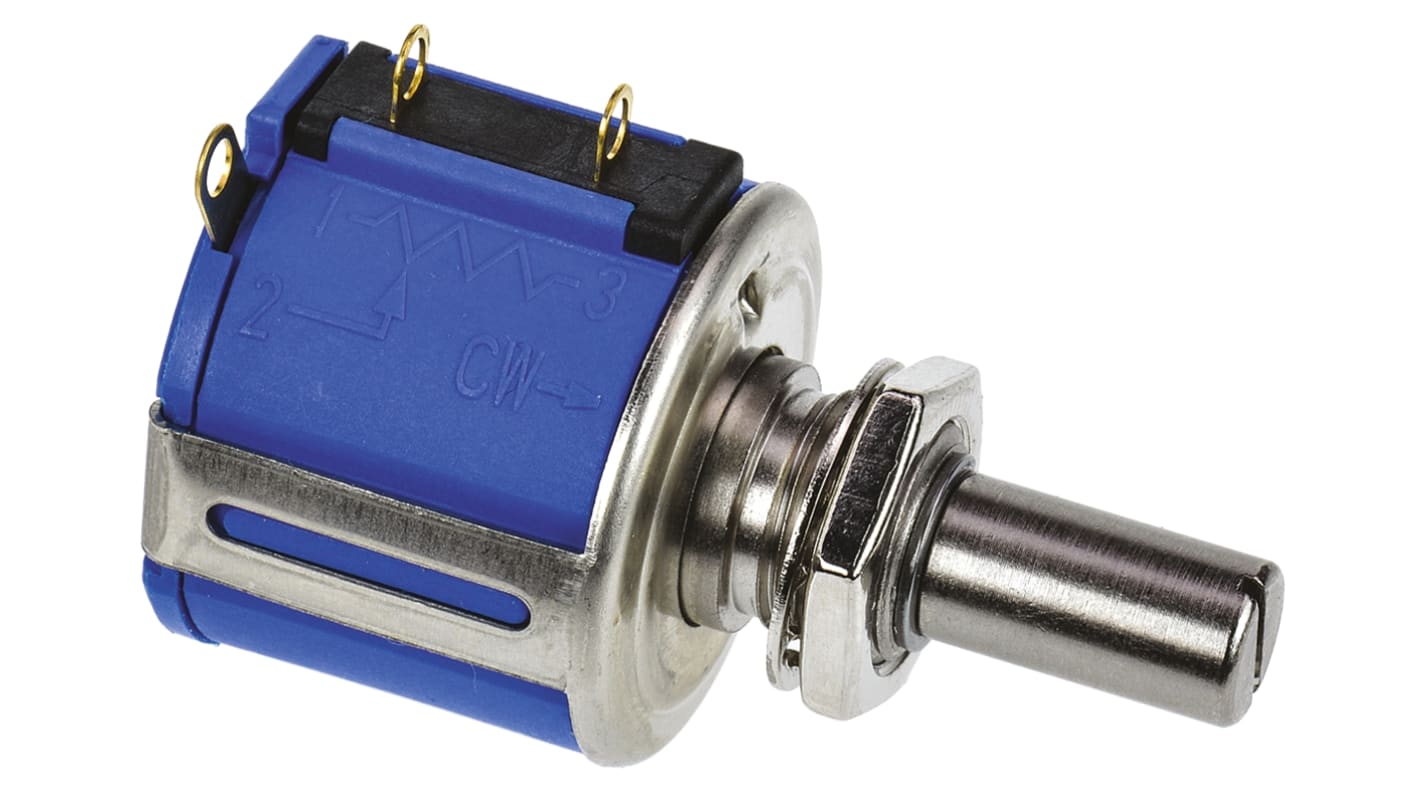

Bourns 500Ω Rotary Potentiometer 10-Turns 1-Gang Panel Mount, 3540S-1-501L
- RS Stock No.:
- 522-3012
- Mfr. Part No.:
- 3540S-1-501L
- Manufacturer:
- Bourns
57 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR184.20
| Units | Per Unit |
| 1 - 6 | MYR184.20 |
| 7 - 12 | MYR180.98 |
| 13 + | MYR165.13 |
- RS Stock No.:
- 522-3012
- Mfr. Part No.:
- 3540S-1-501L
- Manufacturer:
- Bourns
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
22 mm 10 Turn 3540S Series
Bourns 3540 Series multiturn precision potentiometers are ideal for control applications where accuracy and high reliability are critical. These wirewound potentiometers feature a power rating of 2 W and a resistance range of 100 to 100K.
Features
Bushing mount
Optional AR lug feature
Optional center tap and rear shaft extension
High torque available
Gangable with common or concentric shafts
Robust, economic, high-performance models
Optional AR lug feature
Optional center tap and rear shaft extension
High torque available
Gangable with common or concentric shafts
Robust, economic, high-performance models
Applications
Measuring linear distance angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Precision - Multi-Turn and Servo
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 500Ω |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power Rating | 2W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Shaft Length | 20.6mm |
| Shaft Diameter | 6.35 mm |
| Actuator Type | Slotted Shaft |
| Tolerance | ±5% |
| Series | 3540 |
