Vishay 5kΩ Rotary Potentiometer 10-Turns 1-Gang Panel Mount, 534B1502JC8872

RS Stock No.:: 486-7150
Mfr. Part No.:: 534B1502JC8872
Manufacturer:: Vishay

Vishay 5kΩ Rotary Potentiometer 10-Turns 1-Gang Panel Mount, 534B1502JC8872

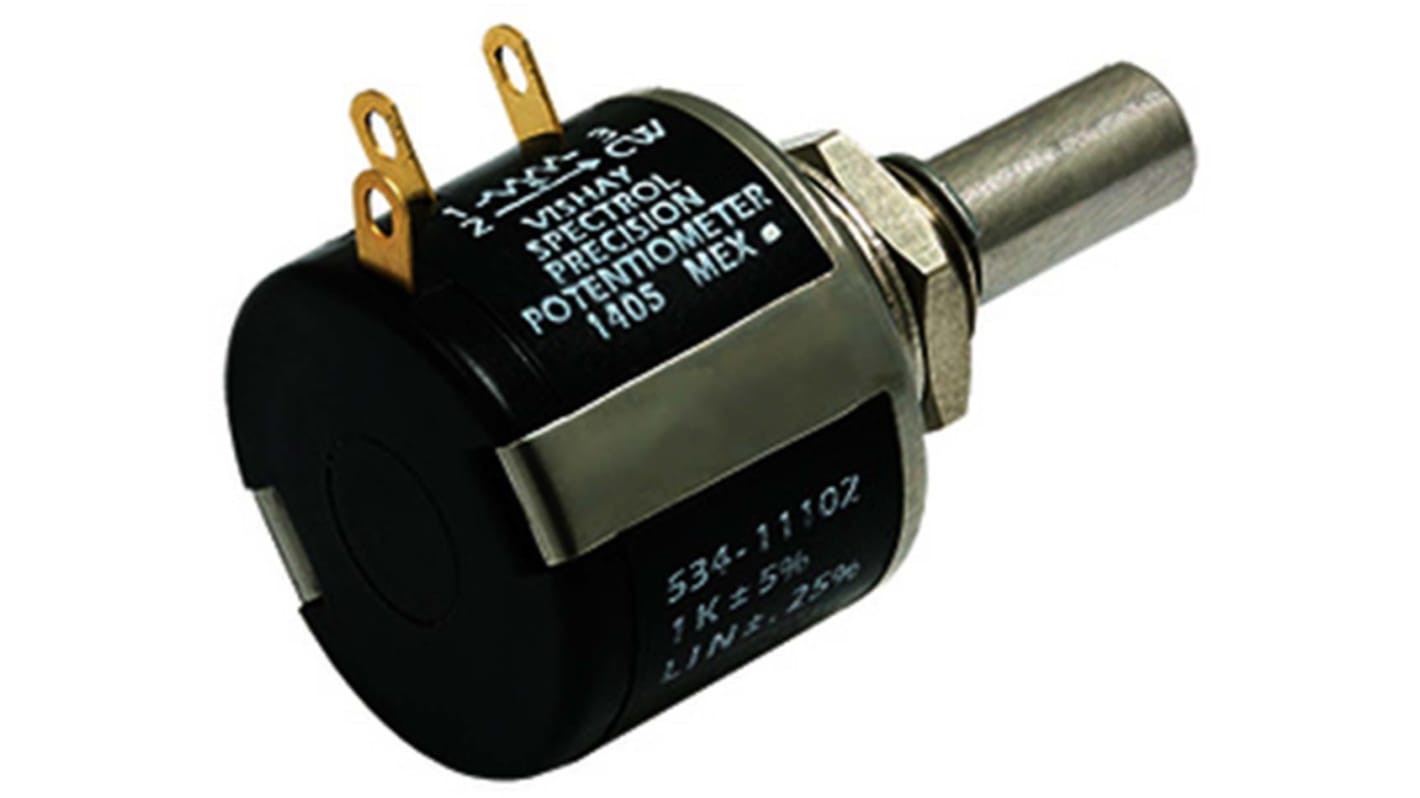

This image is representative of the product range

8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

Was MYR173.55

You pay

MYR164.87

Units	Per Unit
1 - 2	MYR164.87
3 - 4	MYR161.59
5 +	MYR158.35

RS Stock No.:: 486-7150
Mfr. Part No.:: 534B1502JC8872
Manufacturer:: Vishay

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

7/8 in. 10 Turn 534 Series Potentiometers

A comprehensive selection of 7/8 inch (22.2 mm) 10 turn, 534 series linear panel mount potentiometers from Vishay. This potentiometer range features 100 Ω to 100 kΩ versions with 2W power handling, and 5% tolerance. These durable 534 Series potentiometers are rated at one million lifecycles and are suitable for industrial control applications, medical instruments, wire cutting machines, and welding machines.

Features and Benefits:

Wirewound element
Stainless steel end slotted shaft
Bushing mount design, sleeve bearing type
Wide range available 100 Ω to 100 kΩ resistance
Ten turns, with 5% tolerance
2W power rating
Dual gang configuration and concentric shafts
Supplied with metal lock washer and nut

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Precision - Multi-Turn and Servo

Specifications

Attribute	Value
Potentiometer Type	Rotary
Maximum Resistance	5kΩ
Number of Gangs	1
Number of Turns	10
Power Rating	2W
Electrical Taper	Linear
Element Material	Wirewound
Mounting Type	Panel Mount
Termination Style	Solder Lug
Shaft Length	20.6mm
Shaft Diameter	6 mm
Actuator Type	Slotted Shaft
Tolerance	±5%
Series	534
