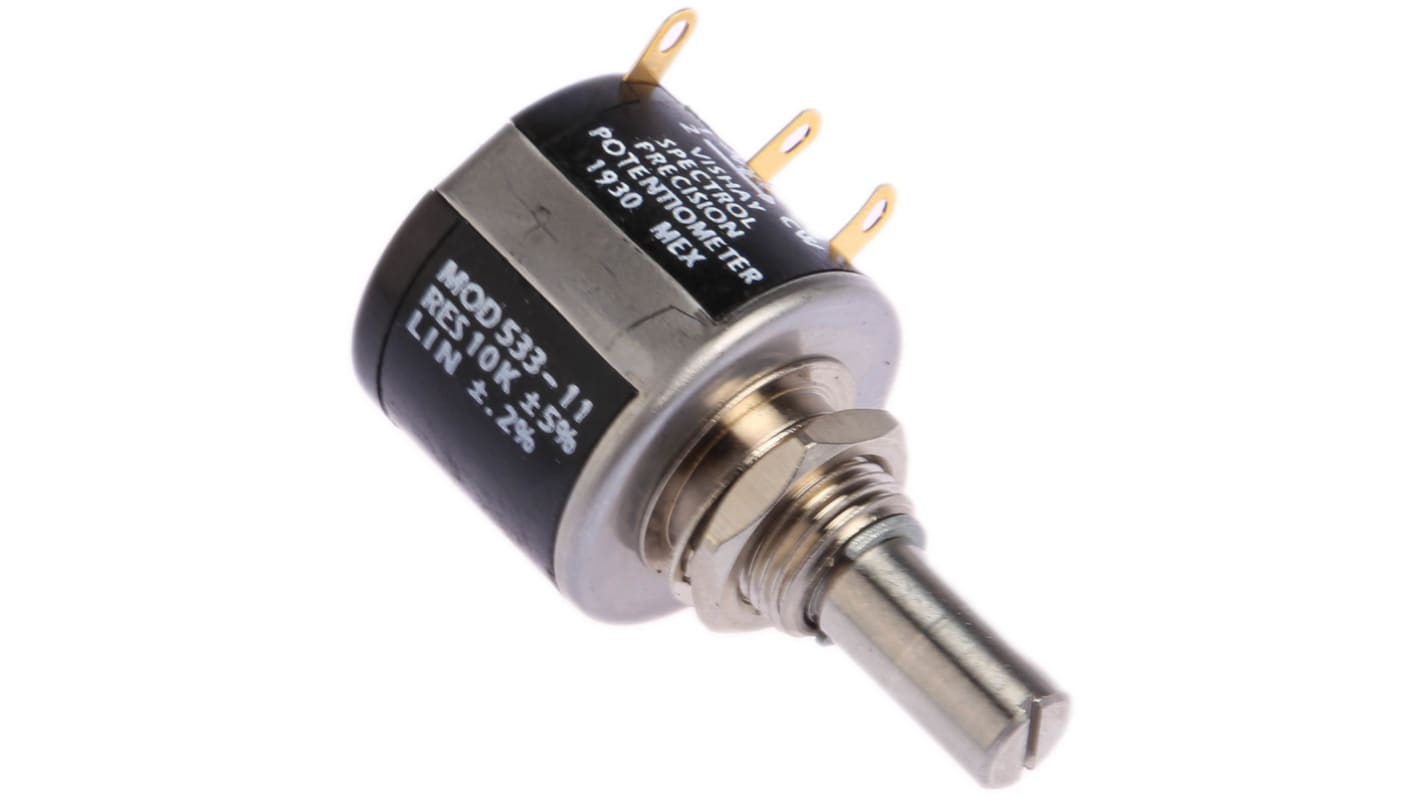

Vishay 533 Series Wirewound Potentiometer with a 6.35 mm Dia. Shaft 3-Turn, 10kΩ, ±5%, 1W, ±20ppm/°C, Panel Mount

  • RS Stock No. 460-1893
  • Mfr. Part No. 533B1103JL
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Vishay 533 Series Wirewound Potentiometers - 3 Turns

• Bushing and servo mount designs available
• Linearity ± 0.25 %, down to 0.05 % on request
• Special resistance tolerances to 1 %
• Rear shaft extensions and support bearing
• Metric shaft available
• Dual gang configuration and concentric shafts
• High torque, center tap, slipping clutch on request
• Special markings and front shaft extensions
• Material categorization: for definitions of compliance

Supplied with

Metal lockwasher and nut.

//media.rs-online.com/t_line/LF166442-10.gif
//media.rs-online.com/t_line/LI166442-10.gif

Precision - Multi-Turn and Servo

Specifications
Attribute Value
Maximum Resistance 10 kΩ
Number of Turns 3
Potentiometer Type Linear
Mounting Type Panel Mount
Shaft Diameter 6.35 mm
Power Rating 1W
Termination Style Solder Lug
Tolerance ±5%
Series 533
Length 39.67mm
Depth 22.23mm
Height 26.99mm
Dimensions 39.67 x 22.23 x 26.99mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Temperature Coefficient ±20ppm/°C
261 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 53.15
units
Per unit
1 - 9
MYR53.15
10 - 49
MYR52.09
50 - 99
MYR50.52
100 - 249
MYR49.01
250 +
MYR47.54
Packaging Options:
