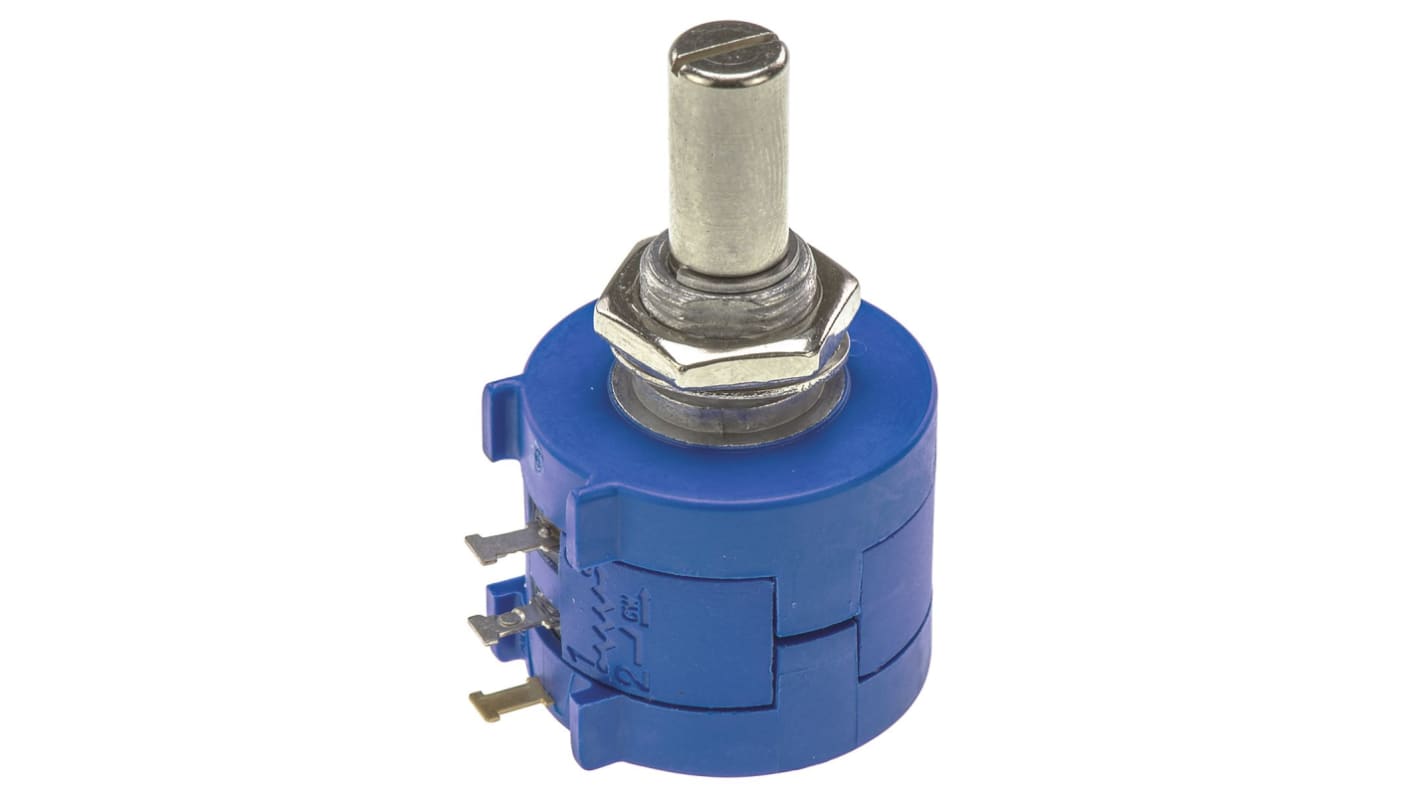

Yageo 1 Gang 10 Turn Rotary Wirewound Potentiometer with a 6.35 mm Dia. Shaft, 500Ω, ±5%, 2W, Linear 3590S-2-501L

  • RS Stock No. 167-3581
  • Mfr. Part No. 3590S-2-501L
  • Manufacturer Yageo
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

3590 Series Precision Potentiometers

3590 series wirewound precision potentiometers with bushing mount, fully sealed body, plastic or metal shaft and bushings (please refer to datasheet for details) and PCB pins.

Features

Wirewound potentiometers
Stainless steel shaft
Robust
High performance Bushing mount
Sealable

Applications

For use in HMI applications.

Precision - Multi-Turn and Servo

Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 500 Ω
Number of Gangs 1
Number of Turns 10
Power Rating 2W
Electrical Taper Linear
Element Material Wirewound
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 20.6mm
Shaft Diameter 6.35 mm
Tolerance ±5%
Series 3590
Actuator Type Slotted Shaft
Temporarily out of stock - back order for despatch 17/07/2020, delivery within 4 working days from despatch date
Price Each (In a Tray of 25)
MYR 51.122
units
Per unit
Per Tray*
25 +
MYR51.122
MYR1,278.05
*price indicative
