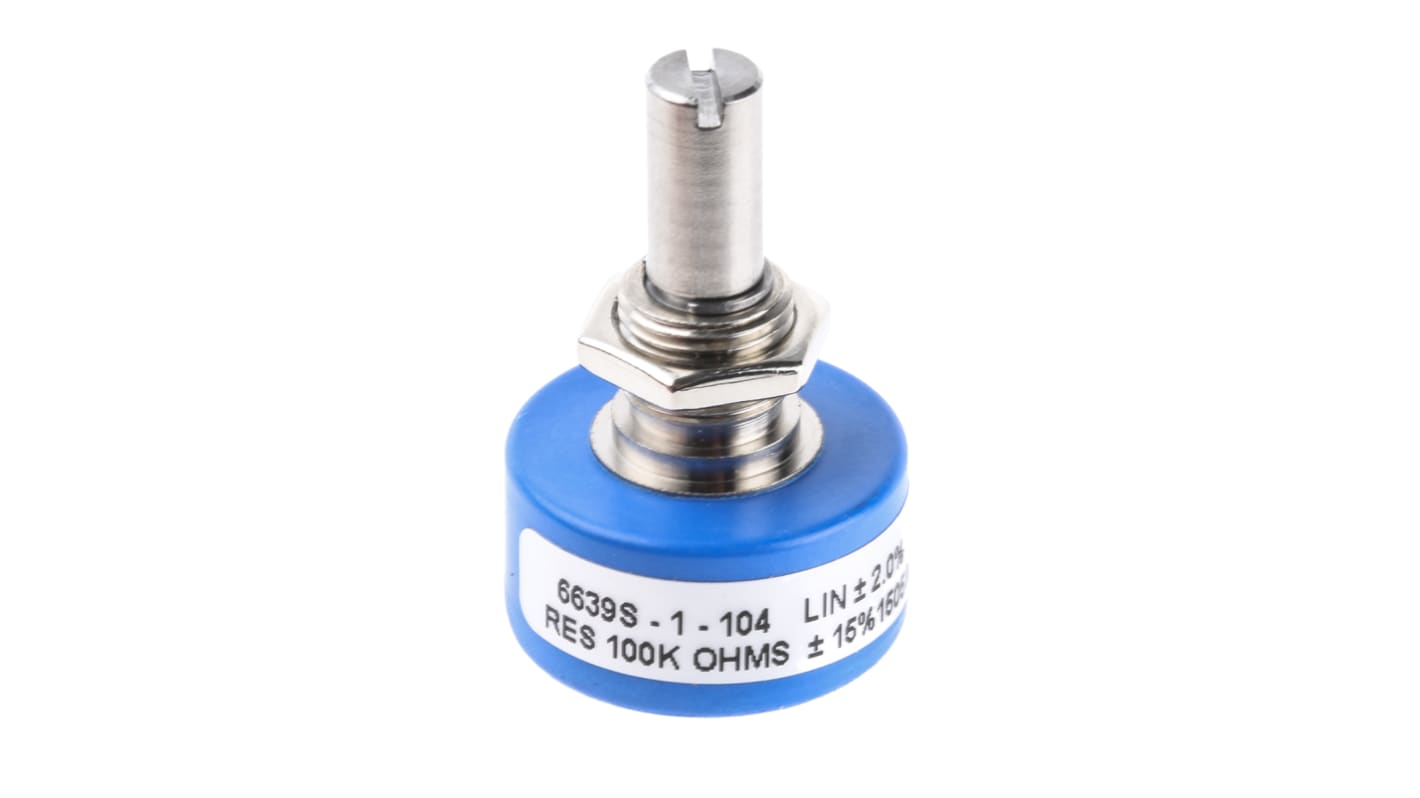

Bourns 100kΩ Rotary Potentiometer Continuous-Turns 1-Gang Panel Mount, 6639S-1-104
- RS Stock No.:
- 162-2518
- Mfr. Part No.:
- 6639S-1-104
- Manufacturer:
- Bourns
75 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tray of 25)
MYR88.816
| Units | Per Unit | Per Tray* |
| 25 + | MYR88.816 | MYR2,220.40 |
| *price indicative | ||
- RS Stock No.:
- 162-2518
- Mfr. Part No.:
- 6639S-1-104
- Manufacturer:
- Bourns
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
22mm Bush Mount 6639 Series
Precision bush mount continuous rotation potentiometer
Occupies minimal space behind the panel
Excellent rotational life - high quality rugged construction
Electrical angle 340° effective
Conductive plastic element
Occupies minimal space behind the panel
Excellent rotational life - high quality rugged construction
Electrical angle 340° effective
Conductive plastic element
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 100kΩ |
| Number of Gangs | 1 |
| Number of Turns | Continuous |
| Power Rating | 1W |
| Electrical Taper | Linear |
| Element Material | Conductive Plastic |
| Mounting Type | Panel Mount |
| Termination Style | Solder Turret |
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35 mm |
| Tolerance | ±15% |
| Series | 6639 |
| Actuator Type | Slotted Shaft |
