SMC 1000 L/min NPT 1/2 Mist Separator, 0.01μm filtration, 0.05MPa to 1 MPa, 1.5 MPa
- RS Stock No.:
- 850-8717
- Mfr. Part No.:
- AME350C-N04
- Manufacturer:
- SMC
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR678.35
| Units | Per Unit |
| 1 + | MYR678.35 |
- RS Stock No.:
- 850-8717
- Mfr. Part No.:
- AME350C-N04
- Manufacturer:
- SMC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

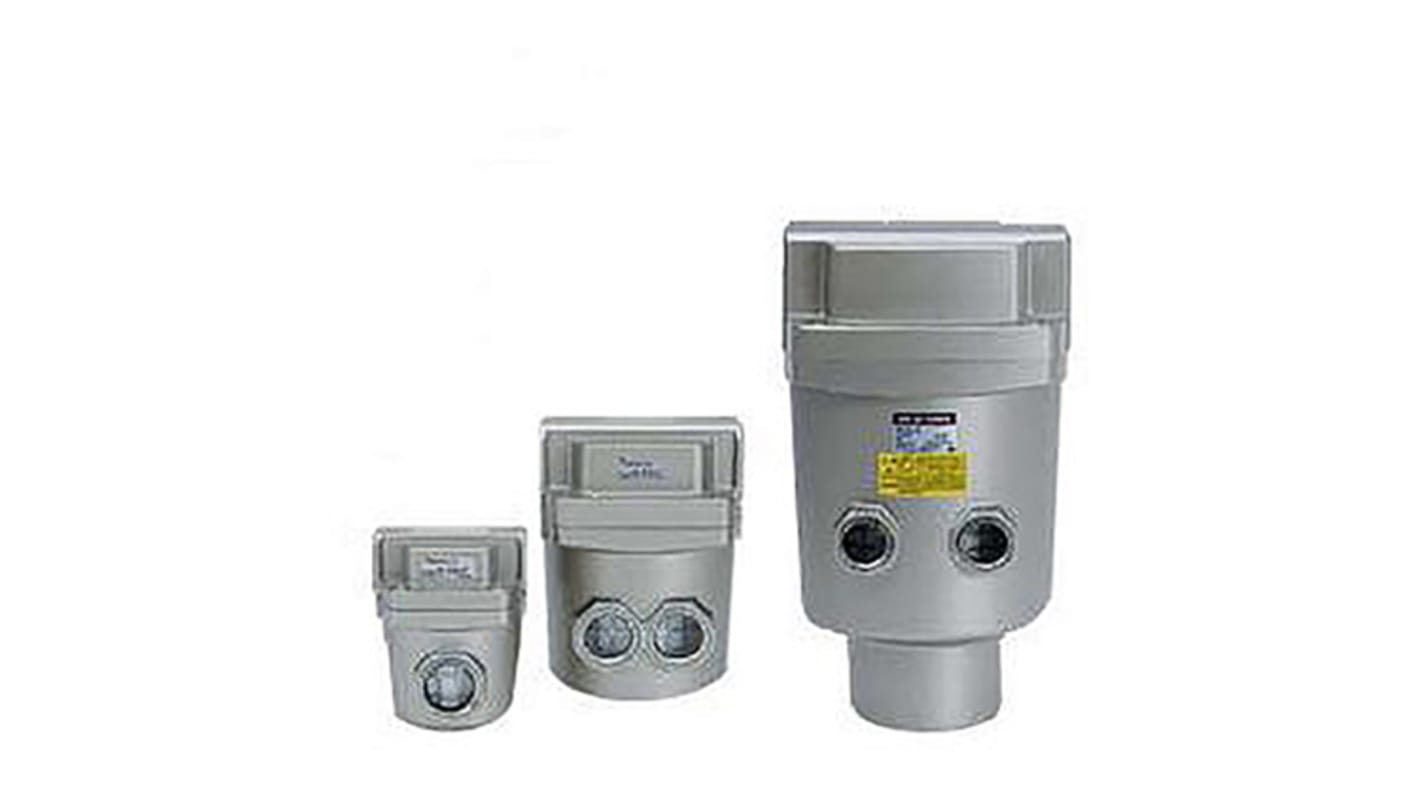

Mist Separator
Compressed air cleaning filter series from SMC. These mist separators are suitable for all your water, solid/oil separation and deodorization requirements.
0.3μm filter element removes more than 99.9% of oil mist; 0.01μm filter removes more than 99.9999%
Maximum operating pressure of 10 bar
Minimum operating pressure 0.5 bar
Auto-drain as standard
Maximum operating pressure of 10 bar
Minimum operating pressure 0.5 bar
Auto-drain as standard
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Filters, Lubricators and Separators
High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.
Specifications
Attribute | Value |
|---|---|
| Port Connection | NPT 1/2 |
| Typical Flow | 1000 L/min |
| Filtration Size | 0.01µm |
| Manufacturer Series | AME |
| Typical Flow Rated At | 0.7MPa |
| Element Material | Glass Fibre |
| Port Connection Thread Size | 1/2 |
| Minimum Operating Temperature | +5°C |
| Maximum Operating Temperature | +60°C |
| Maximum Operating Pressure | 1 MPa, 1.5 MPa |
| Port Connection Thread Standard | NPT |
| Minimum Operating Pressure | 0.05MPa |
