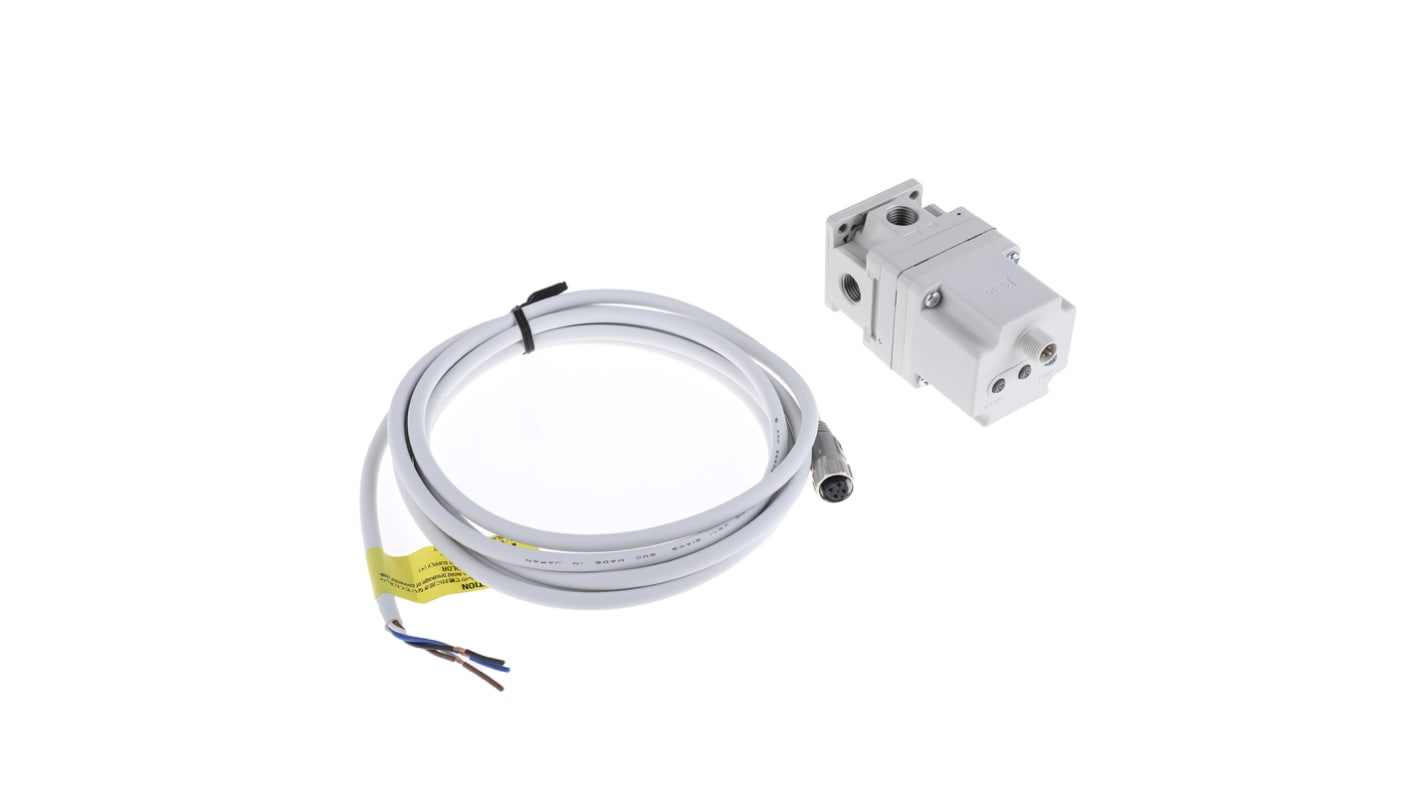

SMC Pneumatic Regulator G 1/4, 0.005 → 0.9Mpa

  • RS Stock No. 797-5582
  • Mfr. Part No. ITV2050-31F2BS3
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

ITV series

Electro-pneumatic pressure regulator range from SMC.
ITV series regulators allow proportional control of the regulators output pressure with an electrical input signal. Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports. The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal.

Near zero air consumption at set pressure
Temperature range +5°C to +50°C
Analogue output 1 to 5 Vdc
LED three digit pressure display
IP65 rated enclosure
Energy consumption of 4w or less
Zero and span can be set without supply pressure present
Without cable

Note

Cable available under RS stock numbers 700-7522 for the 'S' type and 700-7531 for the 'L' type, available via web only

Specifications
Attribute Value
Port Connection G 1/4
Minimum Outlet Pressure 0.005MPa
Maximum Outlet Pressure 0.9MPa
Maximum Input Pressure 1MPa
Manufacturer Series ITV2000
Pressure Gauge Port Size G 1/4
Port Connection Thread Size 1/4 in
Pressure Gauge Port Thread Size 1/4 in
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Pressure Gauge Port Thread Standard G
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2,664.50
units
Per unit
1 +
MYR2,664.50
