- RS Stock No.:
- 203-0476
- Mfr. Part No.:
- VPPM-8L-L-1-G14-0L6H-A4P-S1C1
- Manufacturer:
- Festo
- RS Stock No.:
- 203-0476
- Mfr. Part No.:
- VPPM-8L-L-1-G14-0L6H-A4P-S1C1
- Manufacturer:
- Festo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details

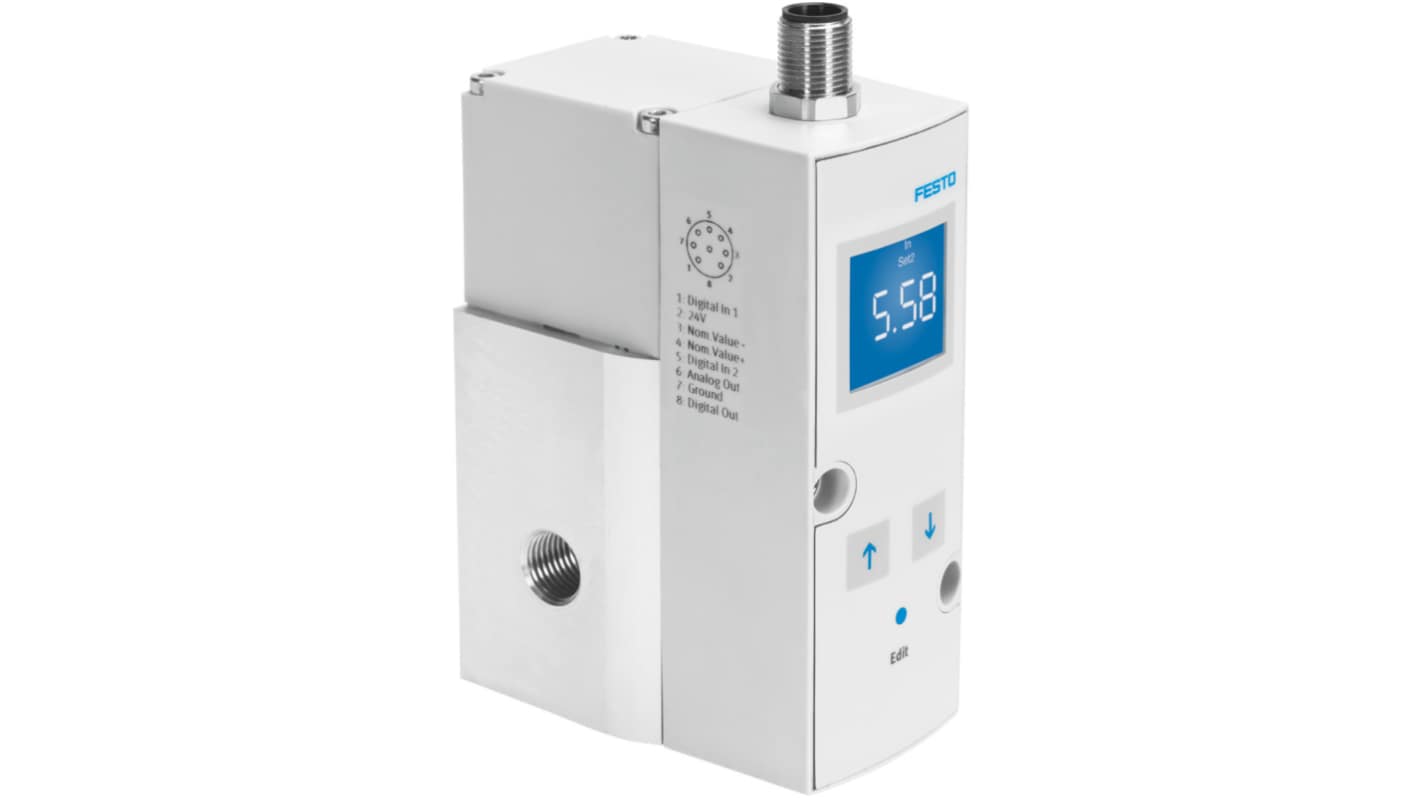

The Festo VPPM Modular proportional pressure regulator is a 3-way flanged valve design with G1/4 thread connection. The pressure range is up to 6 bar.
Pressurisation - 8 mm
Nominal diameter, exhaust - 7 mm
Assembly position - any
Nominal diameter, exhaust - 7 mm
Assembly position - any
Specifications
Attribute | Value |
---|---|
Port Connection | G 1/4 |
Maximum Outlet Pressure | 6bar |
Minimum Outlet Pressure | 0.06bar |
Maximum Input Pressure | 8bar |
Manufacturer Series | VPPM |
Typical Flow Rate | 1750L/min |
Model Number p | 571301 |
