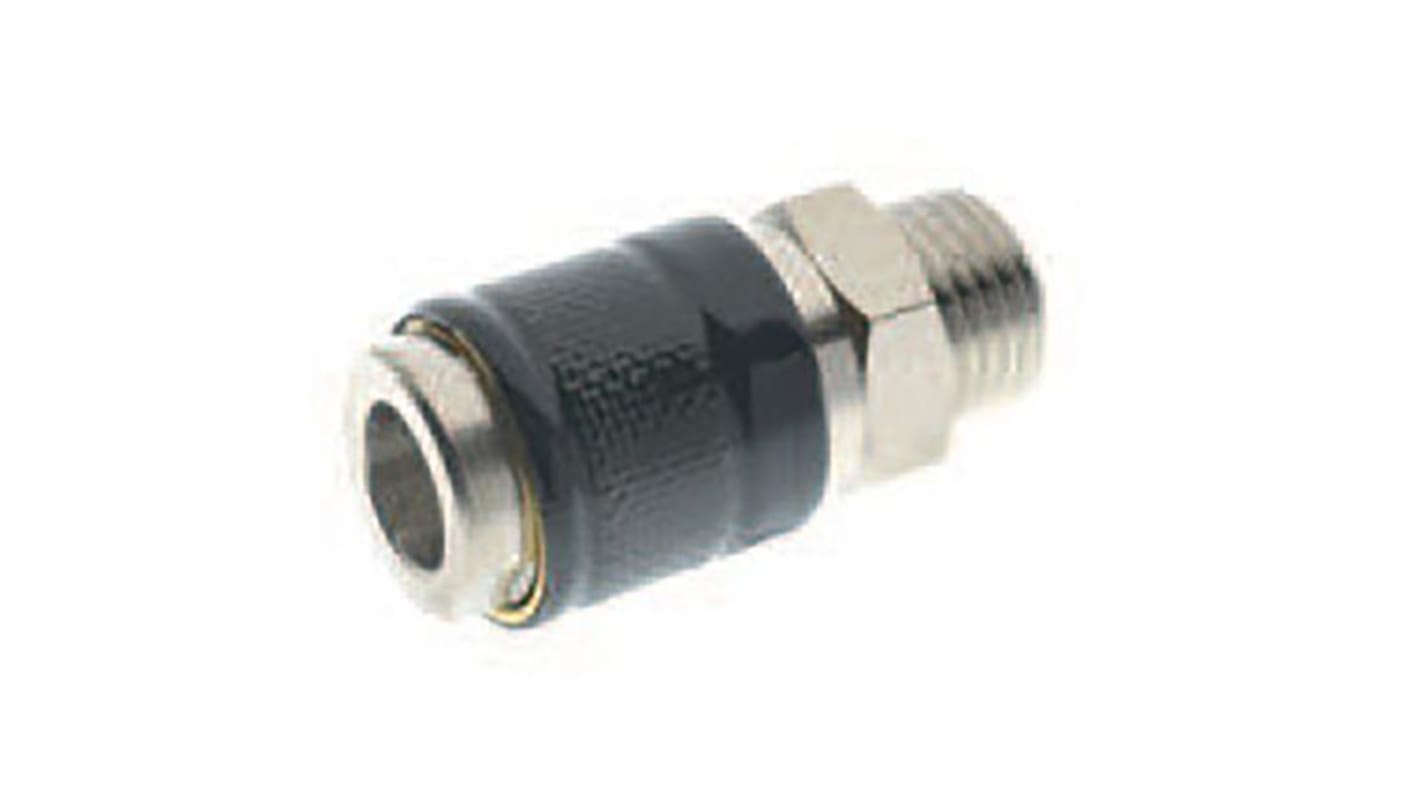

RS PRO Brass Female Quick Air Coupling, G 1/8 Male Threaded
- RS Stock No.:
- 187-8793
- Manufacturer:
- RS PRO
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 2
MYR124.87
| Bag(s) | Per Bag | Per Unit* |
| 1 - 4 | MYR124.87 | MYR62.435 |
| 5 + | MYR102.77 | MYR51.385 |
| *price indicative | ||
- RS Stock No.:
- 187-8793
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
RS Pro DN5 quick connect couplings with MIGNON DOUBLE SHUT OFF profile. Interchangeable with RECTUS/LEGRIS, PARKER 21/90, CAMOZZI 5050 - 5150 and CEJN 200
- Working Pressure: 0 bar to 12 bar (1.2 MPa)
- Working Temperature: - 20 °C to + 80 °C
- Fluid: Compressed air
- Working Pressure: 0 bar to 12 bar (1.2 MPa)
- Working Temperature: - 20 °C to + 80 °C
- Fluid: Compressed air
Specifications
Attribute | Value |
|---|---|
| Threaded Connection | G 1/8 Male |
| Coupling Gender | Female |
| Thread Size | 1/8in |
| Connection Type | Threaded |
| Material | Brass |
| Thread Gender | Male |
| Thread Standard | BSP |
| Maximum Operating Pressure | 12bar |
| Minimum Operating Temperature | -20°C |
| Seal Material | NBR |
| Maximum Operating Temperature | +80°C |
