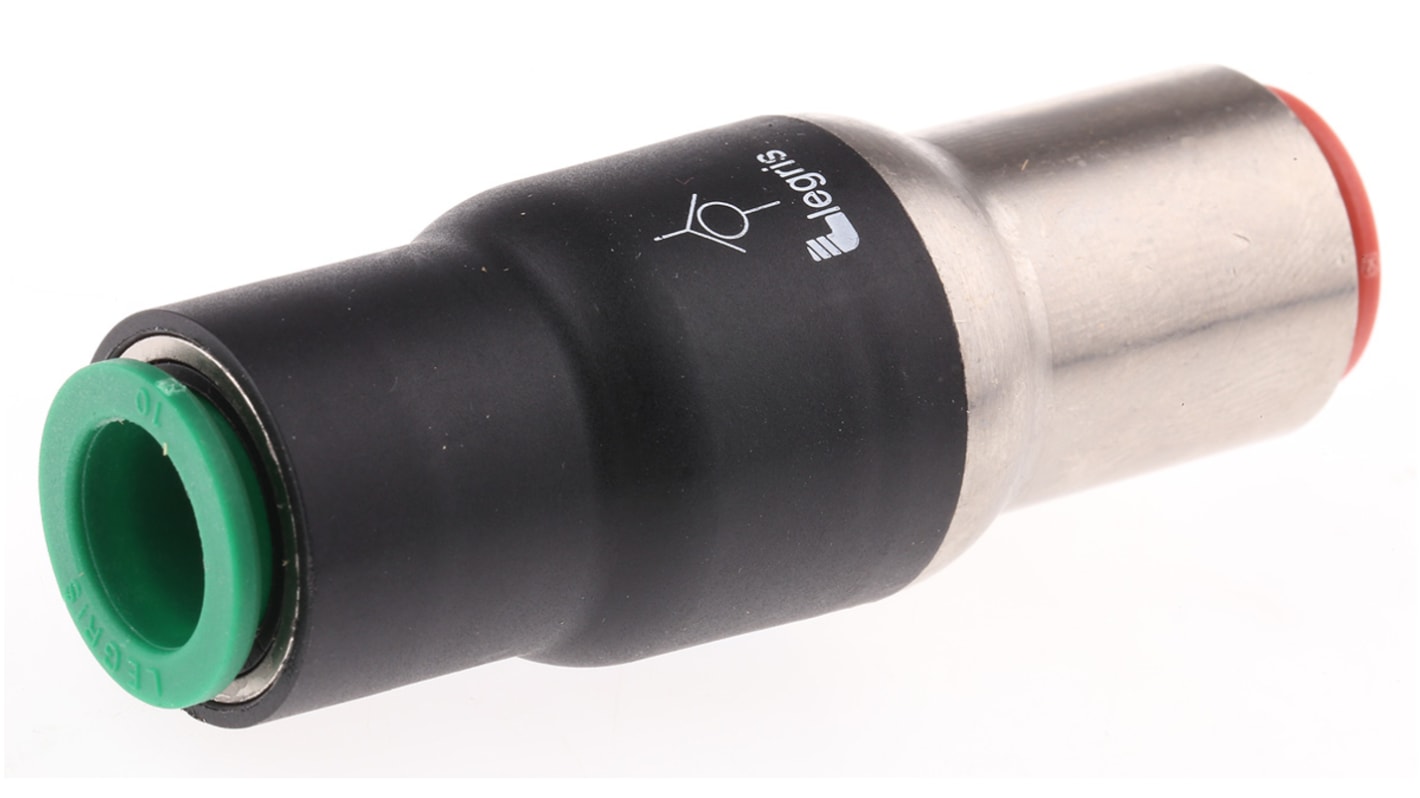

Legris 7996 Non Return Valve, 10mm Tube Inlet, 10mm Tube Outlet, 1 to 10bar
- RS Stock No.:
- 619-0929
- Mfr. Part No.:
- 7996 10 00
- Manufacturer:
- Legris
Temporarily out of stock - back order for despatch 06/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR209.10
| Units | Per Unit |
| 1 - 11 | MYR209.10 |
| 12 + | MYR204.03 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 619-0929
- Mfr. Part No.:
- 7996 10 00
- Manufacturer:
- Legris
Technical data sheets
Legislation and Compliance
Non Compliant
Product Details
LF3000 Push-in Non-Return Valves
In-line check valve with push-in tube connections
Plastic bodied construction, compact and light in weight
No internal spring, V ring technology ensures positive sealing even when fitting is subjected to vibration
Operating temperature range : 0 to +70°C
No internal spring, V ring technology ensures positive sealing even when fitting is subjected to vibration
Operating temperature range : 0 to +70°C
Specifications
Attribute | Value |
|---|---|
| Tube Inlet Connection | 10mm |
| Inlet Connection Type | Tube |
| Outlet Connection Type | Tube |
| Tube Outlet Connection | 10mm |
| Manufacturer Series | 7996 |
| Minimum Operating Pressure | 1bar |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +70°C |
| Operating Pressure Range | 1 to 10bar |
| Minimum Operating Temperature | 0°C |
