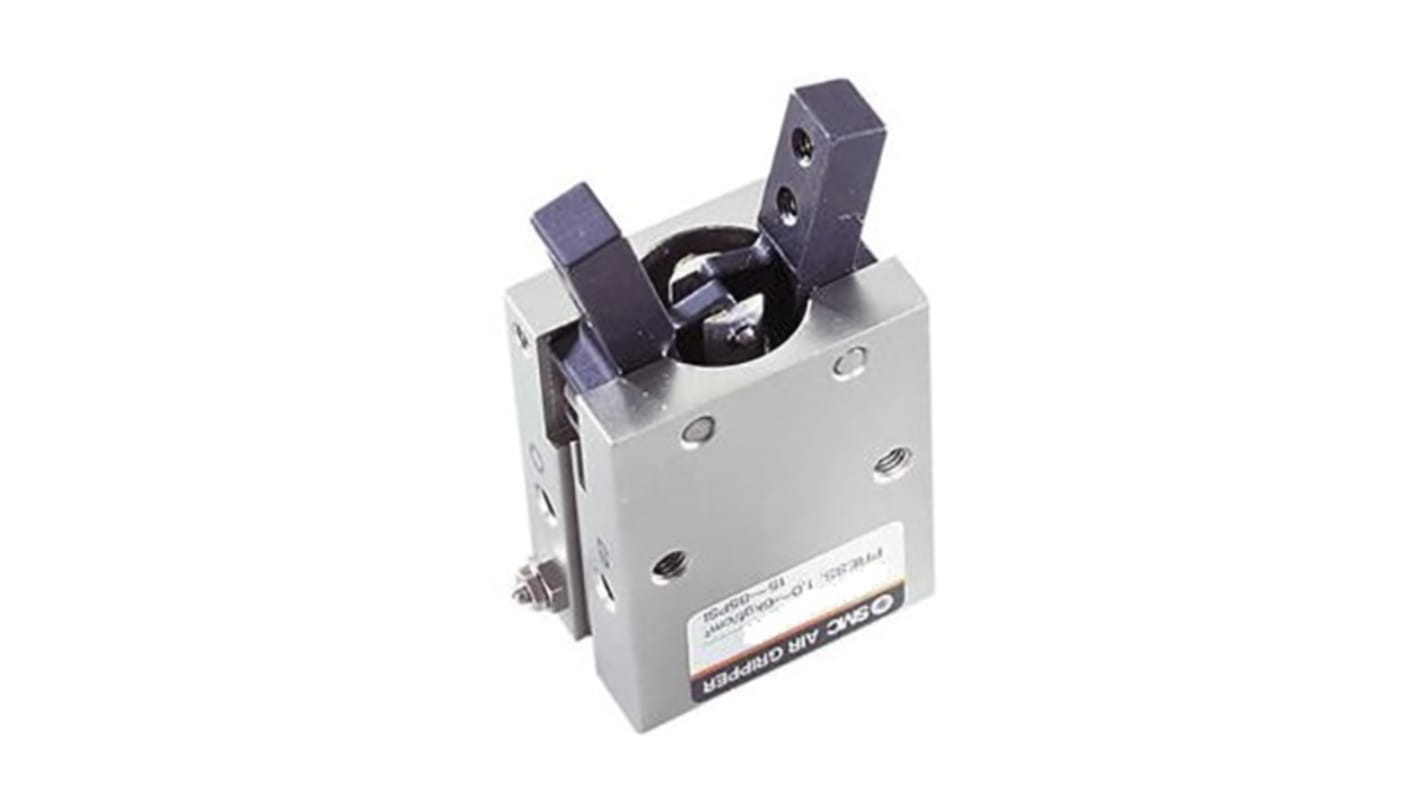

SMC 2 Finger Single Action Pneumatic Gripper, MHC2-10S

  • RS Stock No. 912-0872
  • Mfr. Part No. MHC2-10S
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Grippers

Double acting
Operating pressure 1 – 6 bar
Temperature range 0°C to 60°C
Opening angle 30°(open), 10°(closed)
Holding moment at 5 bar is 0.1Nm (10mm bore), 0.4Nm (16mm), 0.7Nm (20mm), 1.4Nm (25mm)
Repeatability of closing position ±0.01mm
Maximum operating frequency 180cpm
Lubrication not required

Specifications
Attribute Value
Manufacturer Series MHC2
Action Single
Number of Fingers 2
Gripping Type Angle
Maximum Operating Pressure 0.6 MPa
Port Connection M3 x 0.5
Weight 39g
17 Within 4 working day(s) (Global stock)
24 Within 4 working day(s) (Global stock)
Price Each
MYR 936.50
units
Per unit
1 +
MYR936.50
