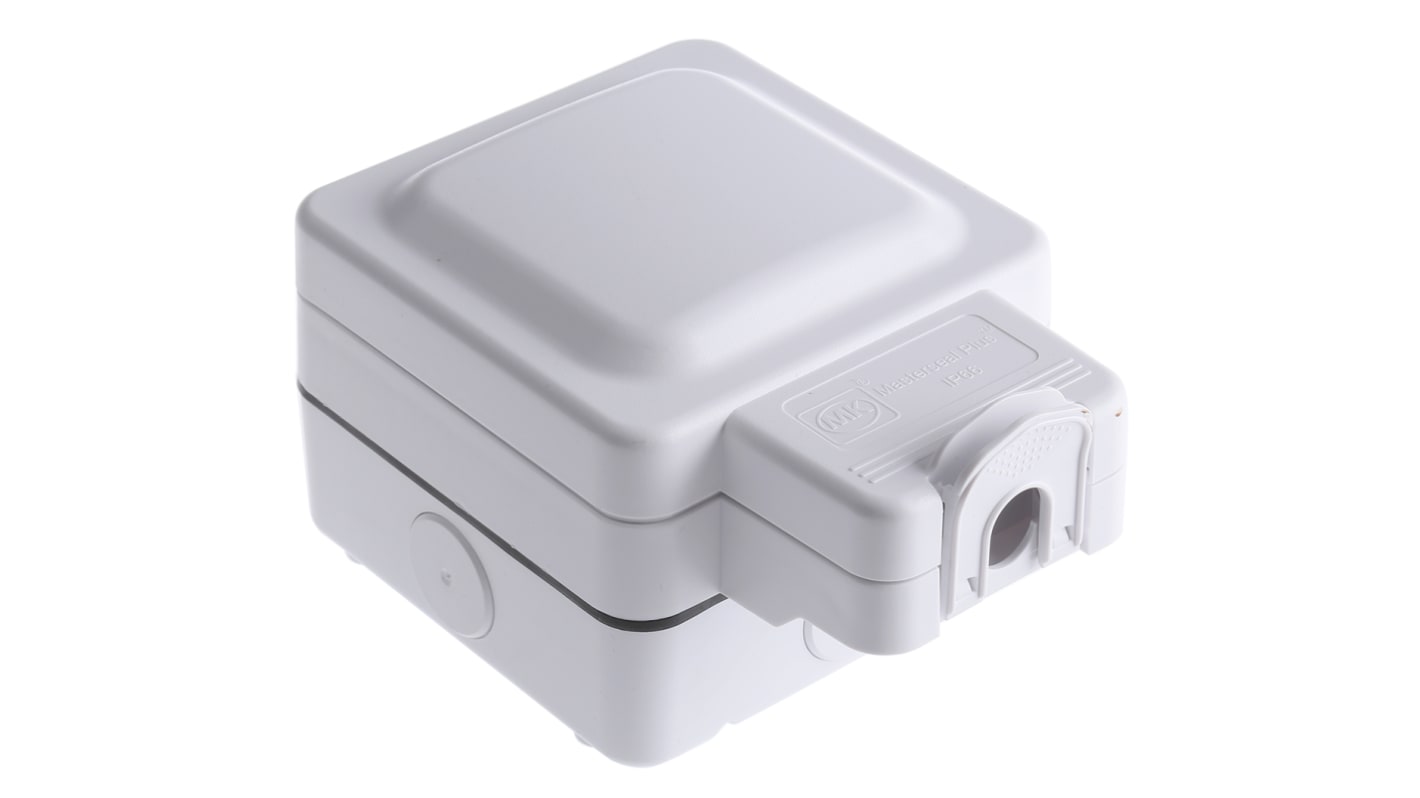

MK Electric Plug Socket, 2 Poles, 13A, Type G - British

  • RS Stock No. 705-1639
  • Mfr. Part No. K56480WHI
  • Manufacturer MK Electric
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

13A Socket Outlets

13A sockets to BS1363

Can accommodate most standard 13A plugs while maintaining seal (max cable dia. 11mm)
Terminal screws are backed out and captive

MK Masterseal Water Tight

MK Masterseal range of water tight accessories are specifically designed to provide power and control in environments heavily exposed to dust and water splashing. Grey units are ideally suited to harsh industrial, commercial and agricultural applications whilst the new white version is designed for the food industry.

IP56-IP65 (dependant on product) rated against dust, water and impact up to 500g
Wide operating temperature range -5°C to + 40°C

Specifications
Attribute Value
Indoor or Outdoor Use Outdoor
Socket Type Type G - British
Mounting Style Surface Mount
Current Rating 13A
Voltage Rating 250V ac
Material Polycarbonate
International Protection Rating IP66
Colour Family White
Number of Poles 2
8 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 199.85
units
Per unit
1 +
MYR199.85
