Wago SYSMAC CJ, SYSMAC CP1H, SYSMAC CP1L Series PLC I/O Module for Use with 750 Series, Analogue
- RS Stock No.:
- 508-3937
- Mfr. Part No.:
- 750554
- Manufacturer:
- Wago
10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR2,328.94
| Units | Per Unit |
| 1 + | MYR2,328.94 |
- RS Stock No.:
- 508-3937
- Mfr. Part No.:
- 750554
- Manufacturer:
- Wago
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- DE
Product Details

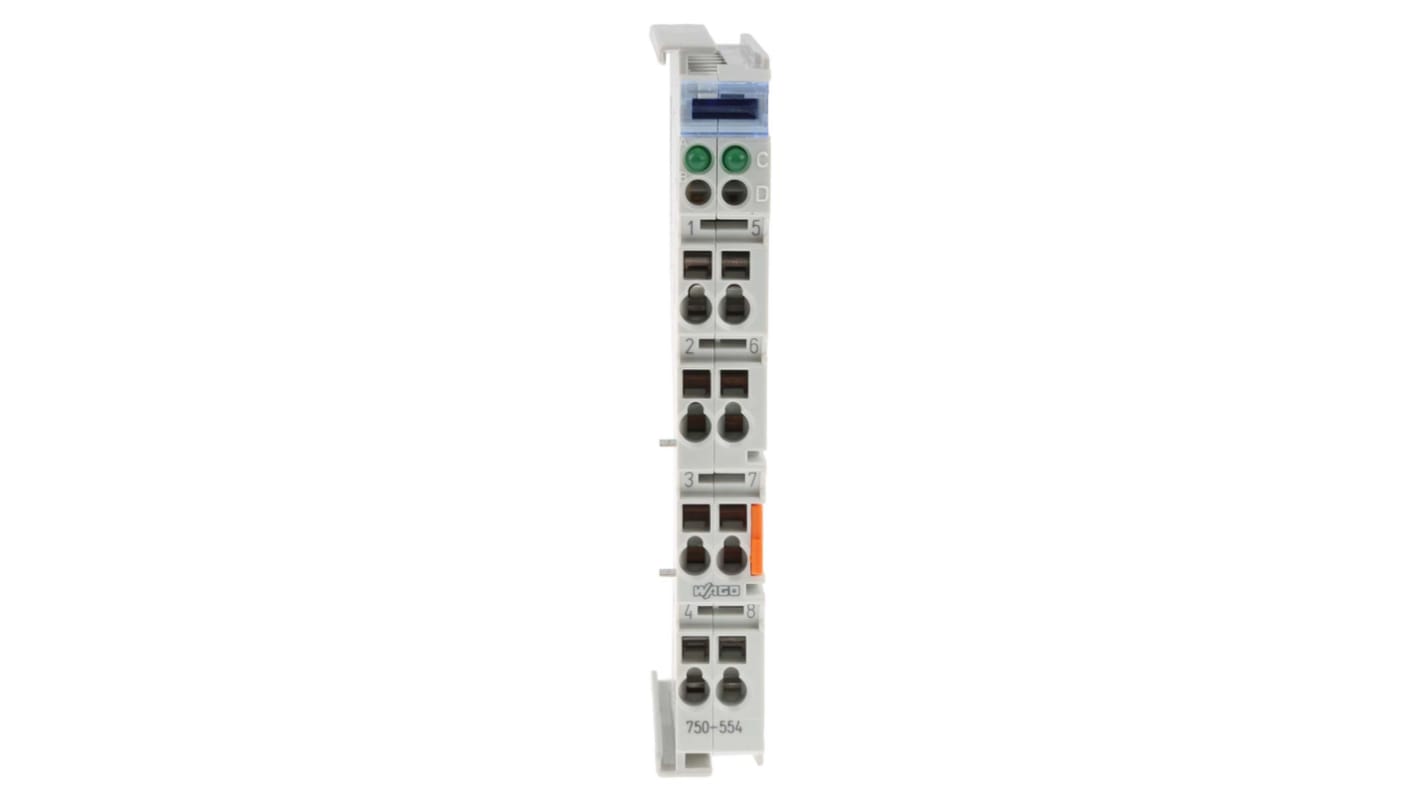

Wago PLC I/O Module
The Wago I/O SYSTEM 750 series PLC I/O module has 2 analogue output channels. The analogue output module creates a standardised signal ranging between 0mA and 20mA or between 4mA and 20mA. The output signal is electrically isolated and will transmit with a resolution of 12bit. Current analogue output modules use power derived from the field side.
Features and Benefits
Remote I/O modular system for all functions
Makes it easy to connect all I/Os
Communication with PC and PLCs
Colour codes according to type of signal
DIN mounting
Dimension 100mm x 12mm x 65mm
Operating temperature ranges between 0°C and 55°C
Makes it easy to connect all I/Os
Communication with PC and PLCs
Colour codes according to type of signal
DIN mounting
Dimension 100mm x 12mm x 65mm
Operating temperature ranges between 0°C and 55°C
Applications
Industrial automation
Robotics
Automobile industry
Robotics
Automobile industry
Certifications
EN 60079-0
IEC 60079-0
UL 121201 listed
IEC 60079-0
UL 121201 listed
Specifications
Attribute | Value |
|---|---|
| Accessory Type | PLC I/O Module |
| Series | SYSMAC CJ, SYSMAC CP1H, SYSMAC CP1L |
| Output Type | Analogue |
| Number of Outputs | 2 (Channel) |
| For Use With | 750 Series |
| Dimensions | 100 x 12 x 64 mm |
