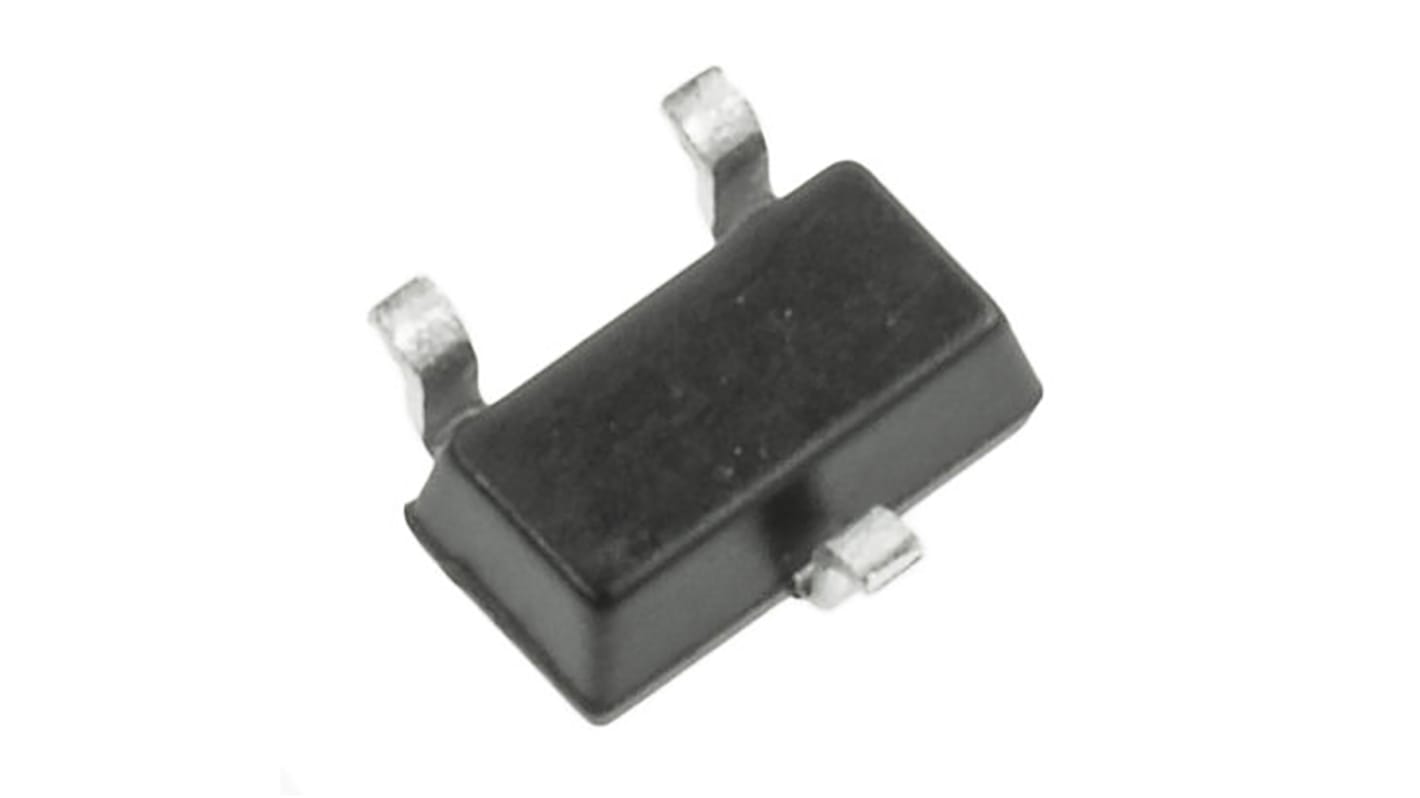

Infineon BAR6404WH6327XTSA1 Dual Series PIN Diode, 100mA, 150V, 3-Pin SOT-323 (SC-70)
- RS Stock No.:
- 165-5617
- Mfr. Part No.:
- BAR6404WH6327XTSA1
- Manufacturer:
- Infineon
Temporarily out of stock - back order for despatch 19/06/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 3000)
MYR0.622
| Units | Per Unit | Per Reel* |
| 3000 - 3000 | MYR0.622 | MYR1,866.00 |
| 6000 - 9000 | MYR0.609 | MYR1,827.00 |
| 12000 + | MYR0.597 | MYR1,791.00 |
| *price indicative | ||
- RS Stock No.:
- 165-5617
- Mfr. Part No.:
- BAR6404WH6327XTSA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
PIN Diodes, Infineon
A wide range of PIN diodes suitable for use in RF switching and attenuator applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Diodes and Rectifiers, Infineon
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Series |
| Number of Elements per Chip | 2 |
| Application | RF Attenuator |
| Maximum Forward Current | 100mA |
| Maximum Reverse Voltage | 150V |
| Typical Carrier Life Time | 1550ns |
| Maximum Forward Voltage | 1.1V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 (SC-70) |
| Pin Count | 3 |
| Maximum Diode Capacitance | 0.35pF |
| Maximum Series Resistance @ Maximum IF | 20 Ω@ 1 mA |
| Dimensions | 2 x 1.25 x 0.8mm |
| Height | 0.8mm |
| Length | 2mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 1.25mm |
