Product Details

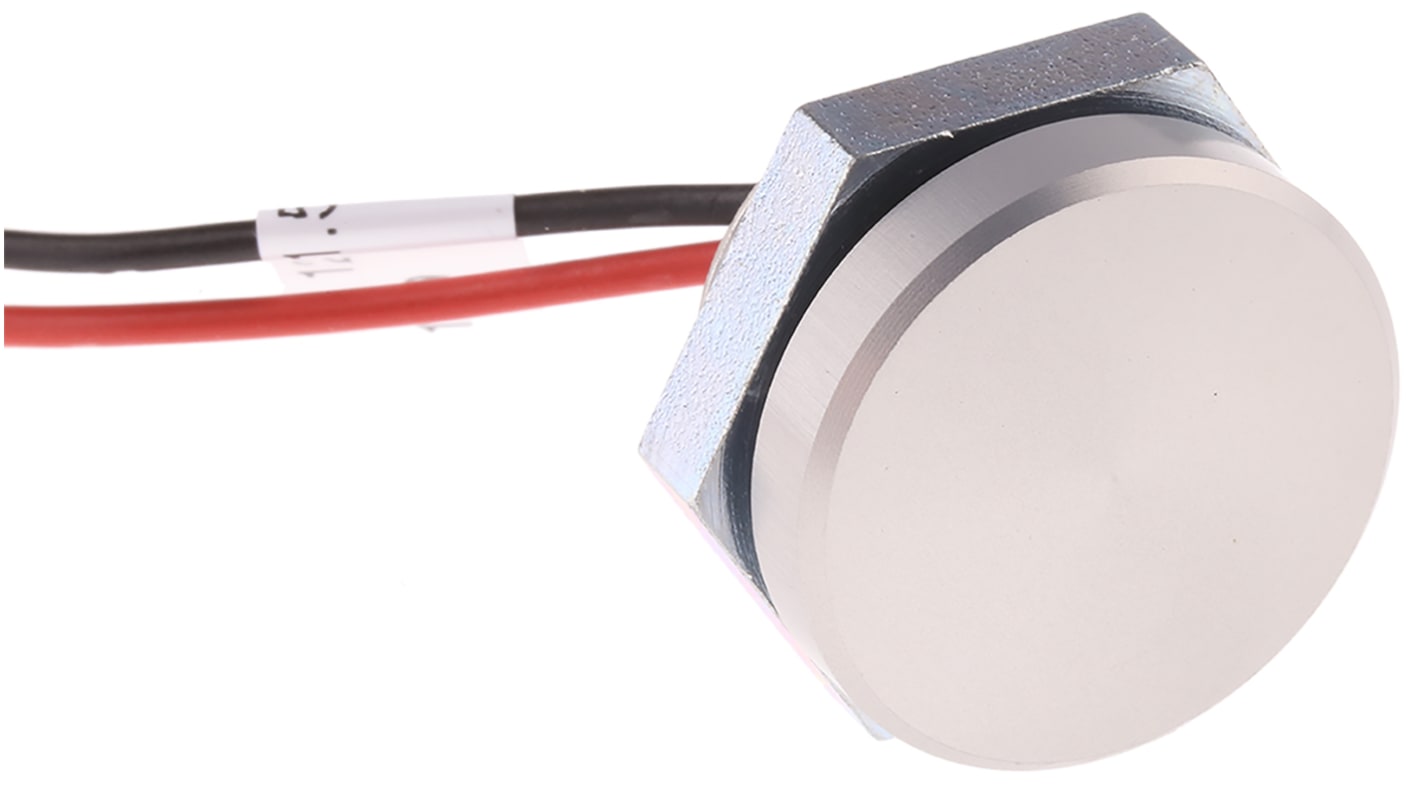

Anti-Vandal M19 Piezo Switch - PSE Series
M19 PSE series anti-vandal panel mounting piezo pushbutton switch with an aluminium housing and faston quick connect terminals on 120mm leads. These M19 PSE series anti-vandal piezo pushbutton switches have an off-momentary switching action and are suitable for use in high temperatures.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Terminal Type | Tab |
Contact Configuration | SPST |
Panel Cut Out Diameter | 19mm |
Contact Current Rating | 100 mA |
IP Rating | IP67, IP69K |
Actuator Colour | Natural |
Case Colour | Natural |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
