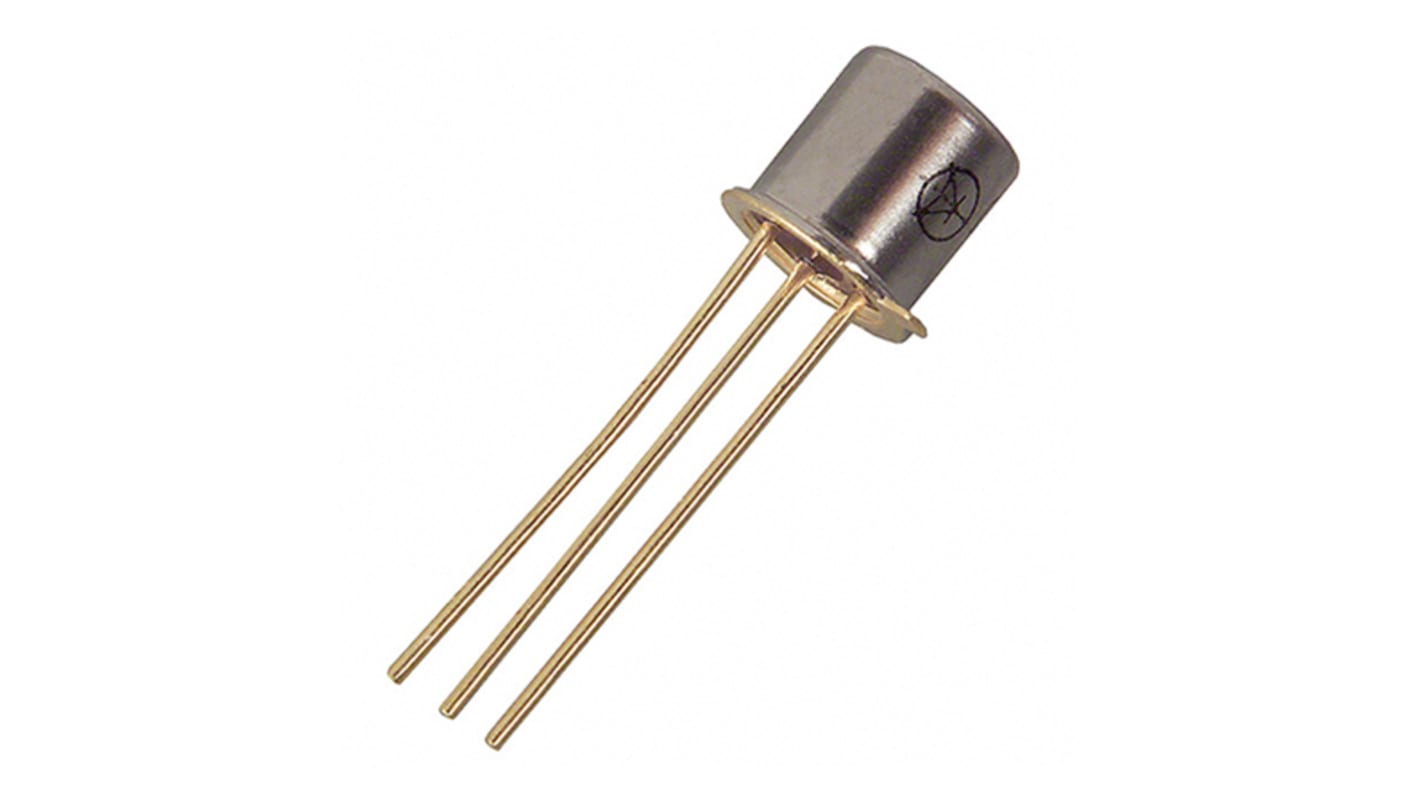

OP804SL Optek, IR Phototransistor, Through Hole 3-Pin TO-18 package

  • RS Stock No. 908-7034
  • Mfr. Part No. OP804SL
  • Manufacturer Optek
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Optek OP800 Series NPN Silicon Phototransistor

Optek OP800 series silicon Phototransistor provide a narrow receiving angle sensing, with a wide range of sensitivity ranges. Supplied in a TO-18 hermetic package style, which makes the OP800 series a great choice for space-restrictive applications.

Reflective Optical Sensors, Optek

Specifications
Attribute Value
Spectrums Detected Infrared
Typical Fall Time 7µs
Typical Rise Time 7µs
Number of Channels 1
Maximum Dark Current 100nA
Polarity NPN
Number of Pins 3
Mounting Type Through Hole
Package Type TO-18
Dimensions 5.84 (Dia.) x 6.86 Hmm
Collector Current 50mA
Diameter 5.84mm
Saturation Voltage 0.4V
Collector Emitter Voltage 30 V
Emitter Collector Voltage 5V
Height 6.86mm
