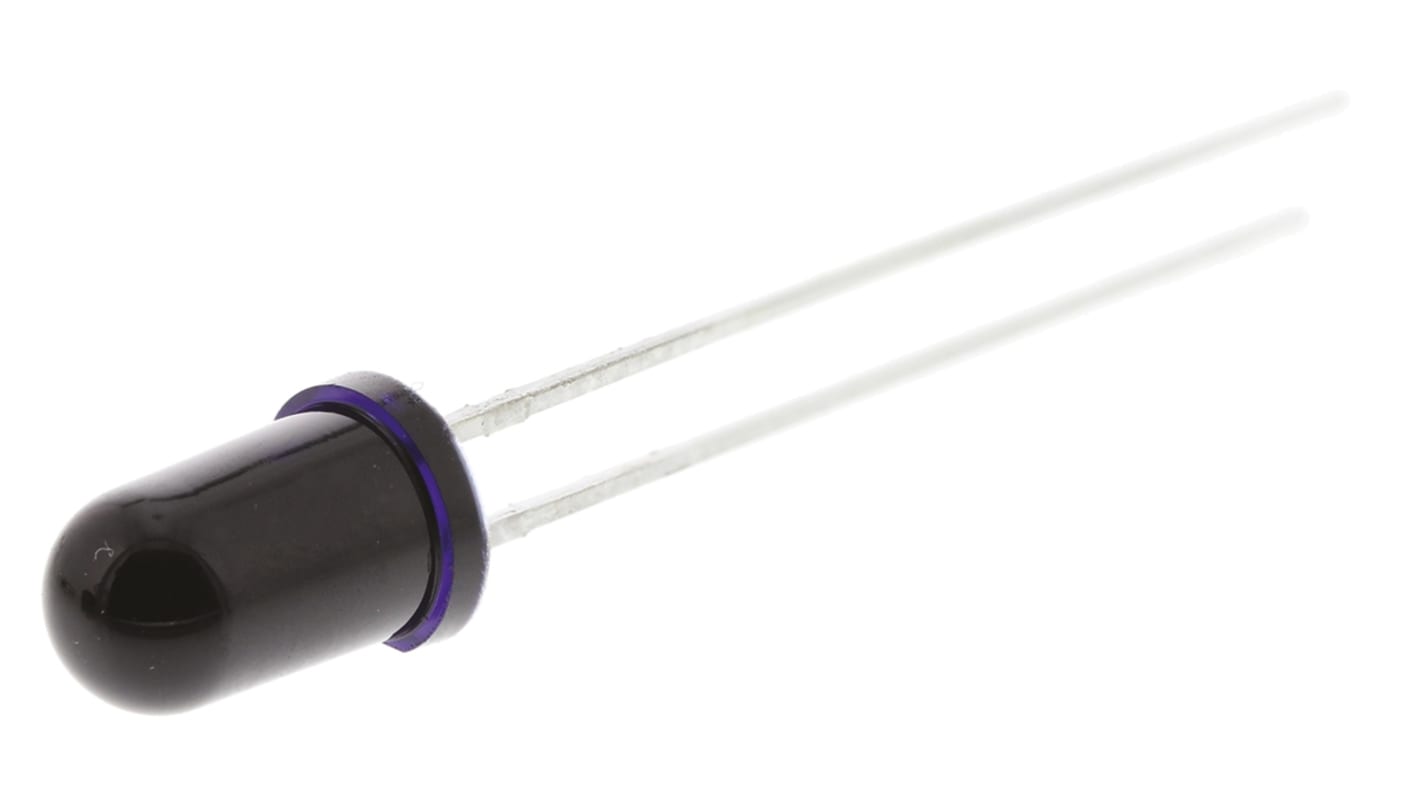

SFH 313 FA-2/3 ams OSRAM, 20 ° IR Phototransistor, Through Hole 2-Pin 5mm (T-1 3/4) package
- RS Stock No.:
- 654-8536
- Mfr. Part No.:
- SFH 313 FA-2/3
- Manufacturer:
- ams OSRAM
Temporarily out of stock - back order for despatch 05/08/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 10)
MYR2.28
| Units | Per Unit | Per Pack* |
| 10 - 240 | MYR2.28 | MYR22.80 |
| 250 - 490 | MYR2.121 | MYR21.21 |
| 500 + | MYR1.925 | MYR19.25 |
| *price indicative | ||
- RS Stock No.:
- 654-8536
- Mfr. Part No.:
- SFH 313 FA-2/3
- Manufacturer:
- ams OSRAM
Technical data sheets
Legislation and Compliance
Product Details
Phototransistor T-1 3/4 (5mm) Package
This family of NPN silicon phototransistors, from OSRAM Opto Semiconductors, are a range of 5mm (T-1 3/4) through-hole devices. They have both clear or black plastic lenses, the diffused lenses being used for daylight filters. Suitable applications include; computer-controlled flashes, photointerrupters, industrial electronics and for control/drive circuits.
5mm (T-1 3/4) packages
Through-hole mounting
Through-hole mounting
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 14µs |
| Typical Rise Time | 14µs |
| Number of Channels | 1 |
| Maximum Light Current | 12500µA |
| Maximum Dark Current | 200nA |
| Angle of Half Sensitivity | 20 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | 5mm (T-1 3/4) |
| Dimensions | 5.9 x 5.9 x 9mm |
| Collector Current | 50mA |
| Minimum Wavelength Detected | 740nm |
| Spectral Range of Sensitivity | 740 → 1080 nm |
| Maximum Wavelength Detected | 1080nm |
| Length | 5.9mm |
| Width | 5.9mm |
| Height | 9mm |
